ZTD90DPSN3SS CONTROL PANEL

ZTD90DPSN3SS CONTROL PANEL

Written by

in

ZTD90DPSN3SS CONTROL PANEL

Products

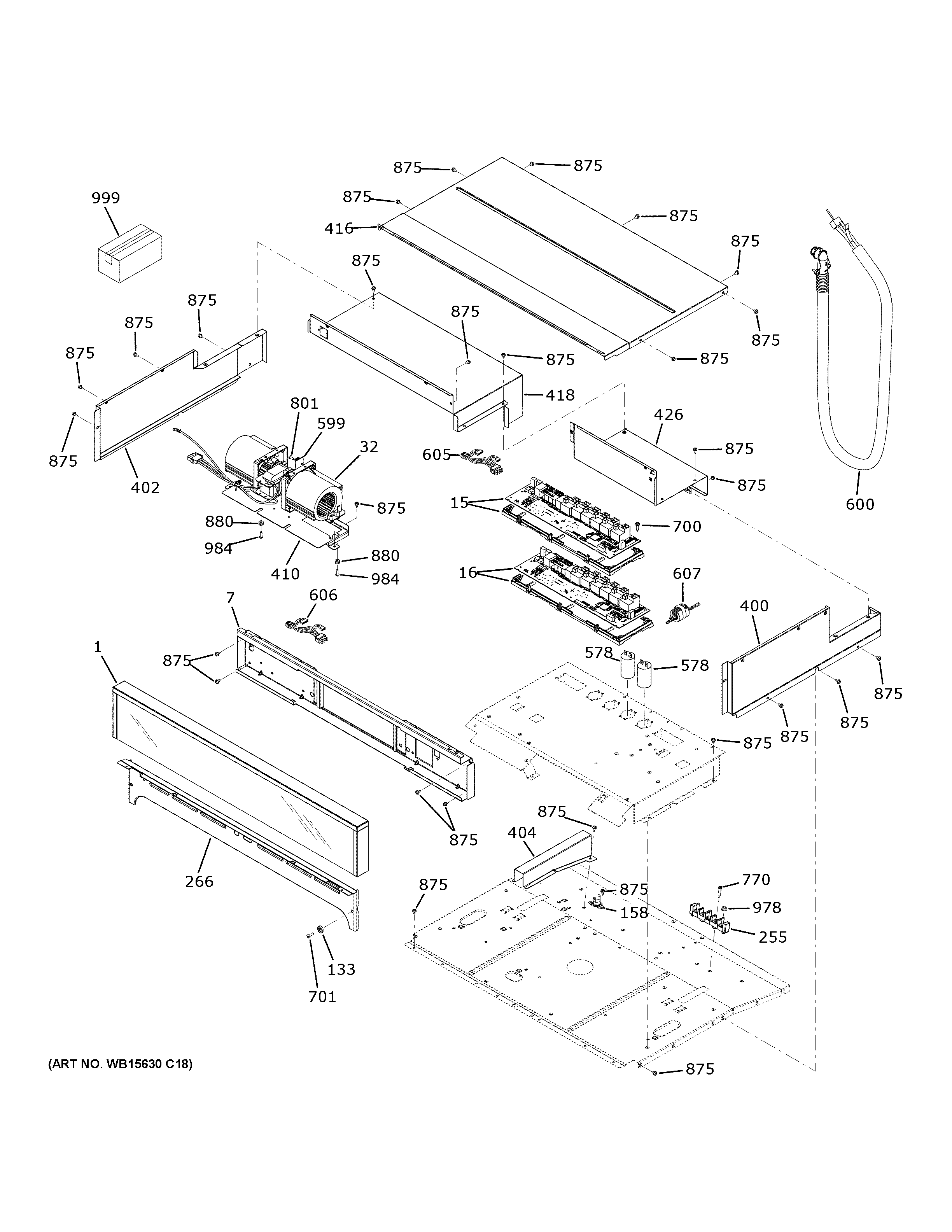

PositionProduct
1WB56X47972 GE Dishwasher Control Panel with Wi-Fi
7WB07X32471 GE Oven Control Panel Mounting BRack
15UPPER OVEN CONTROL RC17 (FLASHED)
16LOWER OVEN CONTROL RC17 (FLASHED)
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
158WB24X35587 GE Limit Switch
255WB17K10001 GE Oven Block Terminal
266WB07X32831 GE Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18X33486 GE Conduit Wire Assembly
600WB18T10580 GE Oven 6 FT Optional Conduit
605WB18X46485 GE Main Wire Harness
606LATCH COM WIRE HARNESS
606WB18X33150 GE Wire Communication Harness
607LATCH COM WIRE HARNESS
700WZ4X416 GE WZ04X0408
701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
999WB02T10303 GE Cleaner Lubricant
999INSTRUCTION INSTALL
