ZTD90DPSN3SS LOWER DOOR

ZTD90DPSN3SS LOWER DOOR

Written by

in

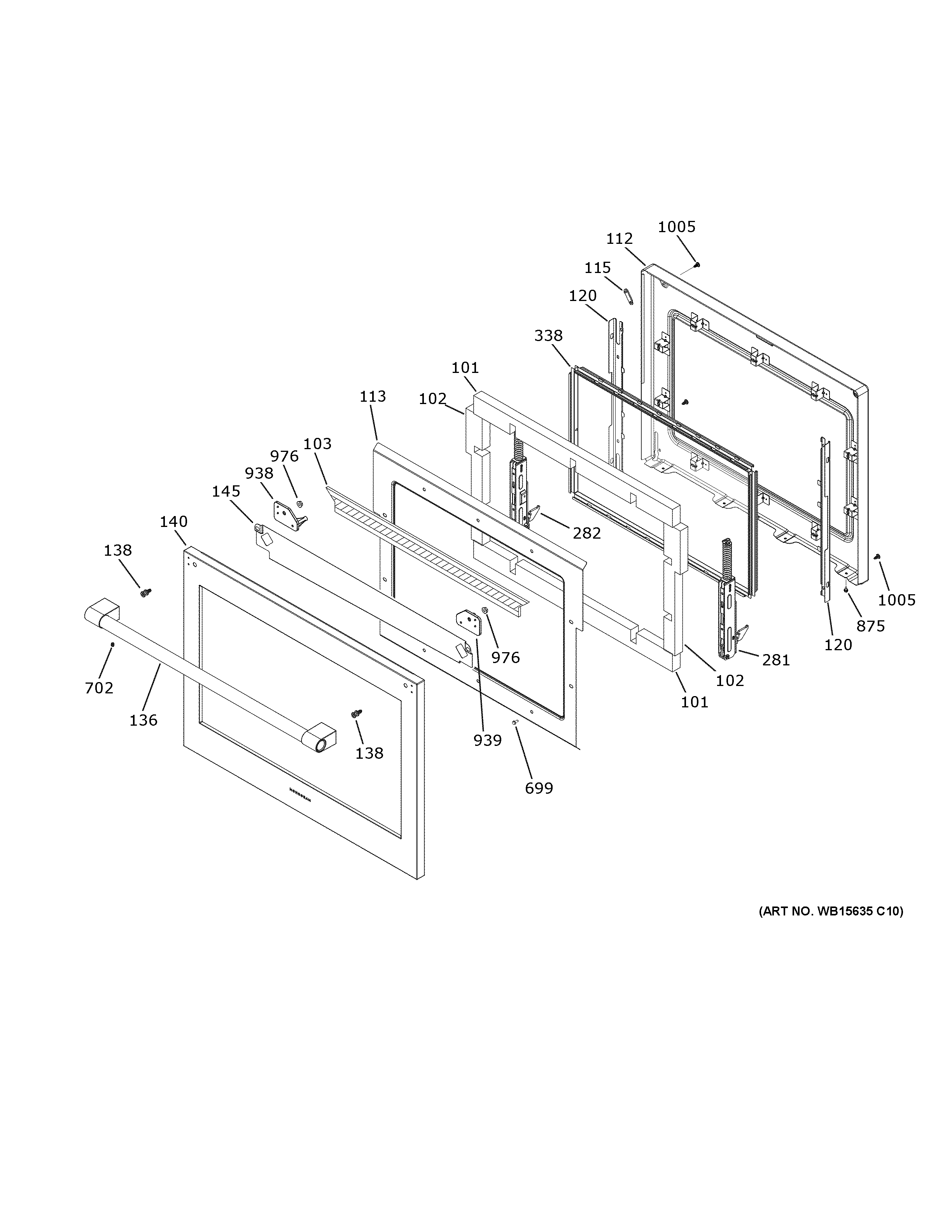

ZTD90DPSN3SS LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
103INSULATION DOOR 30"
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
115WB02X32816 GE Oven Door Liner Plug
120LINER SUPPORT
136WB15X35305 GE Stainless Handle Without Logo
138WB01X31574 GE Mounting Stud
140WB56X43383 GE Glass And Trim Outer Door W/ L
145DEFLECTOR OUTER GLASS DOOR
281WB10X36952 GE Refrigerator Soft Close Hinged Right Door
282WB10X36950 GE Soft Close Hinge Left Door
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
702WR01X20424 GE Refrigerator Screw
875WH2X930 GE Screw
938WB02X34647 GE Left Handle Support
939WB02X34674 GE Right Support Handle
976HEX NUT 1/4-20
1005WB01T10008 GE Oven Screw 10-32
