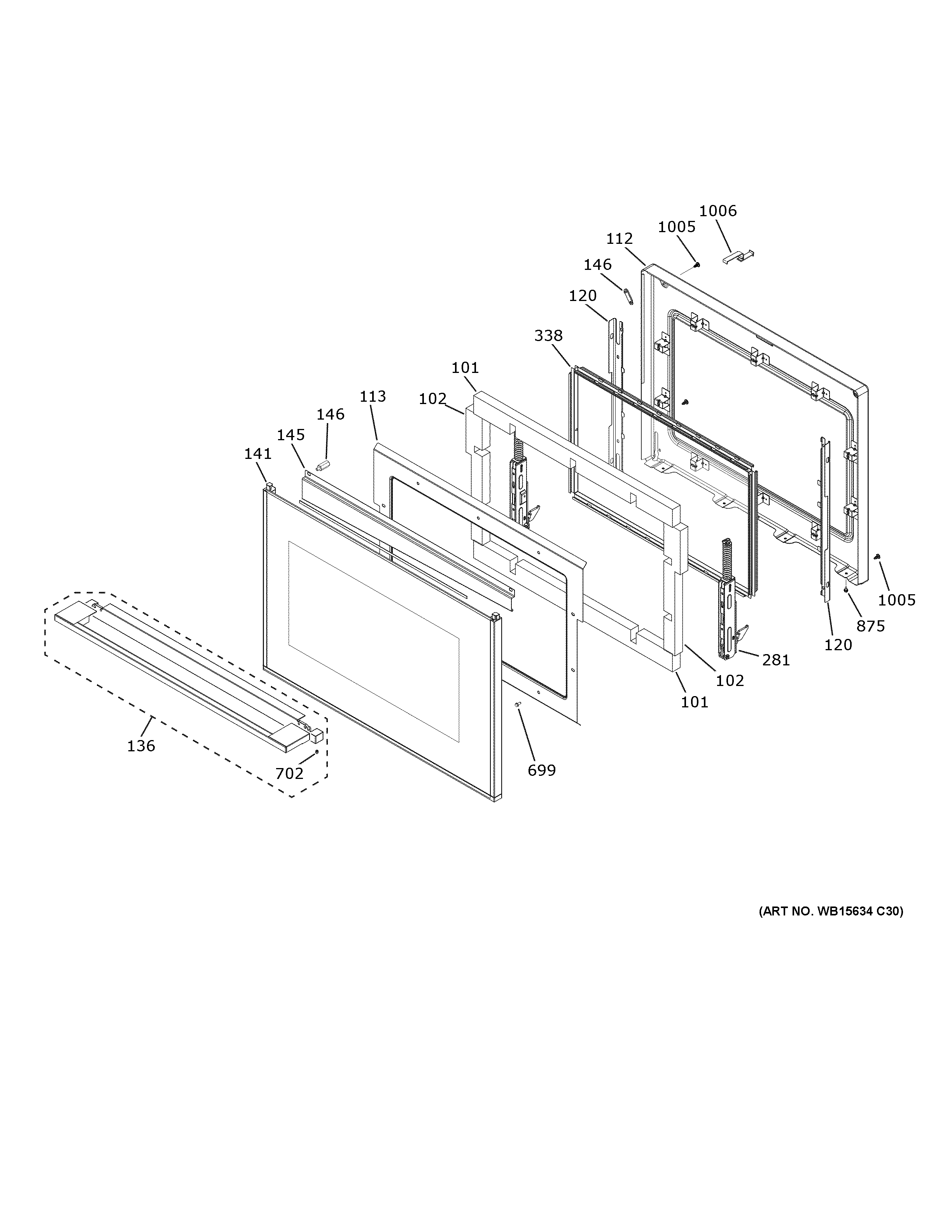

ZTD90DSSN1SS UPPER DOOR

ZTD90DSSN1SS UPPER DOOR

Written by

in

ZTD90DSSN1SS UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
136STAINLESS HANDLE W/O LOGO 30"
141BLACK OUTER LOWER DOOR
145WB24X33028 GE RJ45 Bracket
146SPACER REINFORCEMENT
281WB10X36952 GE Refrigerator Soft Close Hinged Right Door
281WB10X36950 GE Soft Close Hinge Left Door
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
702WR01X11014 GE Refrigerator Set Screw
875WH2X930 GE Screw
1005WB01T10008 GE Oven Screw 10-32
1006WB01X41366 GE Dehydrate Door Stop
