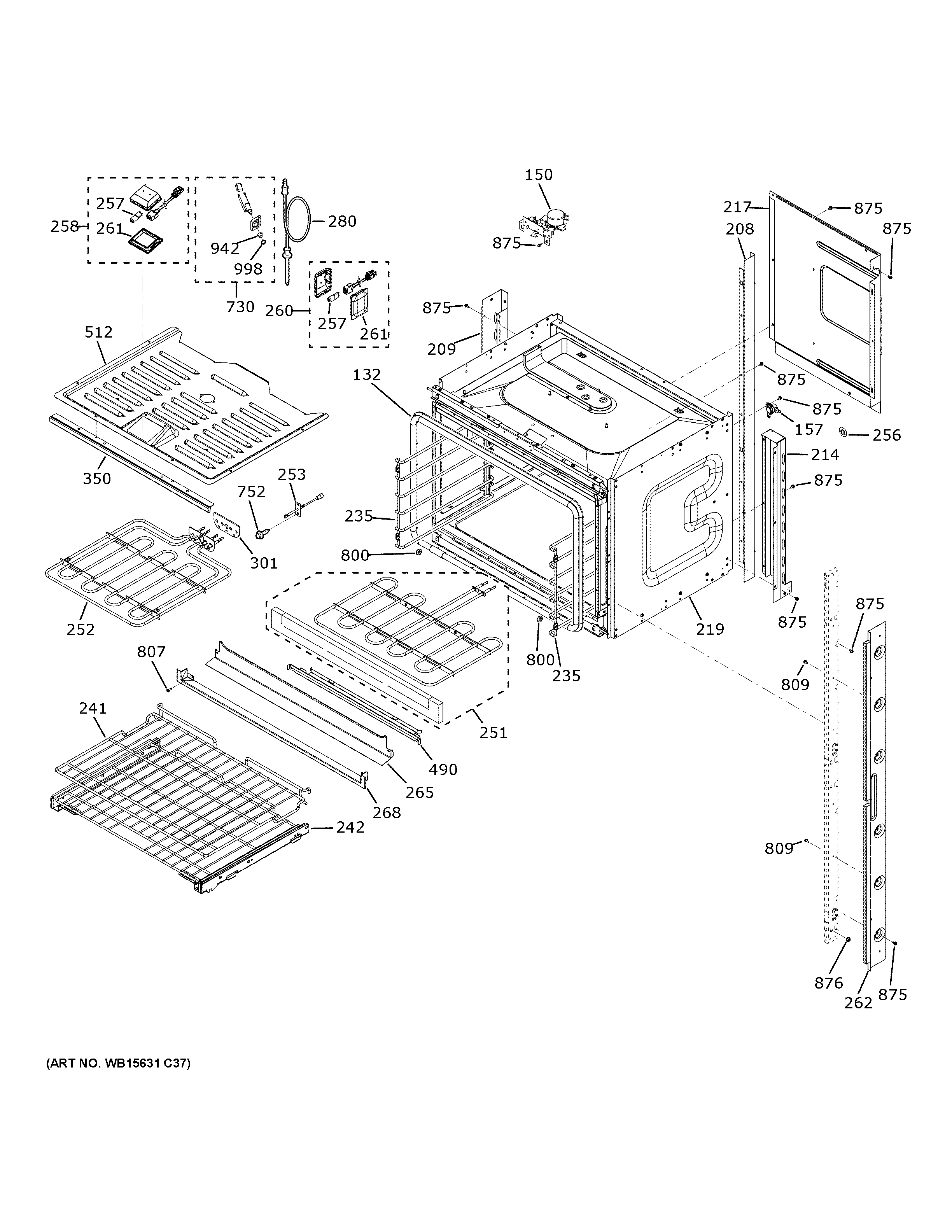

ZTD90DSSN2SS UPPER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
150LATCH ASM
157HIGH LIMIT SWITCH
208WB34T10140 GE Oven Double Divider Air
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
235WB48X21765 GE Oven Right Guide Rack
235WB48X21766 GE Oven Guide Rack Left
241WB48X34690 GE Flat Rack 30"
242WB48X34734 GE Rack Slide Pack 30"
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31223 GE Oven Halogen Lamp Assembly
260WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07X34906 GE Stainless Trim Vertical Side
265WB07X21783 GE Oven Lower Vent Trim
268WB07T10786 GE Oven Bottom Cabinet Trim
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5200 GE Oven Screw 340531
800WB01X21270 GE Oven Rack Guide Nut
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
875WH2X930 GE Screw
876LOCK NUT
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
