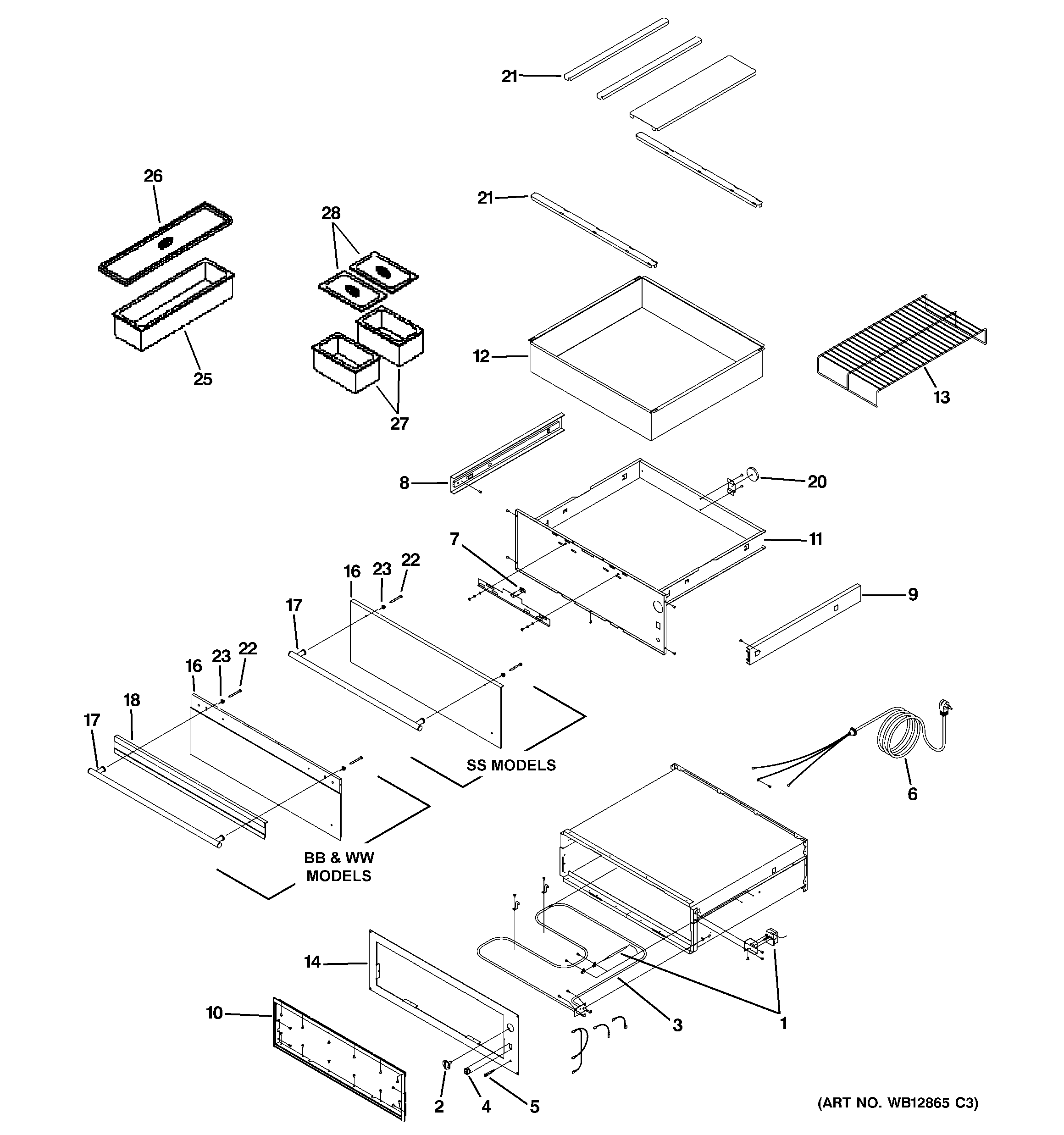

ZTD910SB3SS WARMING DRAWER ASSEMBLY

Products

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5WB02X10587 GE Oven Lamp Indicator
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB02X10589
9GEN WB02X10590
10GEN WB02X10593
11WB58X10016 GE Drawer Frame
12GEN WB58X10006
13WB48X10045 GE Wire Rack
14FACE PANEL 30" SERV ASS'
16GEN WB55X10505
17HANDLE 30" SS MG
20WB02X10592 GE Magnet Closed Detent
21WB64X10032 GE Oven 30" Rail Service Kit Assembly
22WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head
23GEN WB01X10289
25WB49X10158 GE Half Pan
26WB49X10159 GE Half Pan Cover
27WB49X10160 GE Quarter Pan
28WB49X10161 GE Quarter Pan Cover
