ZTD910SF6SS WARMING DRAWER

ZTD910SF6SS WARMING DRAWER

Written by

in

ZTD910SF6SS WARMING DRAWER

Products

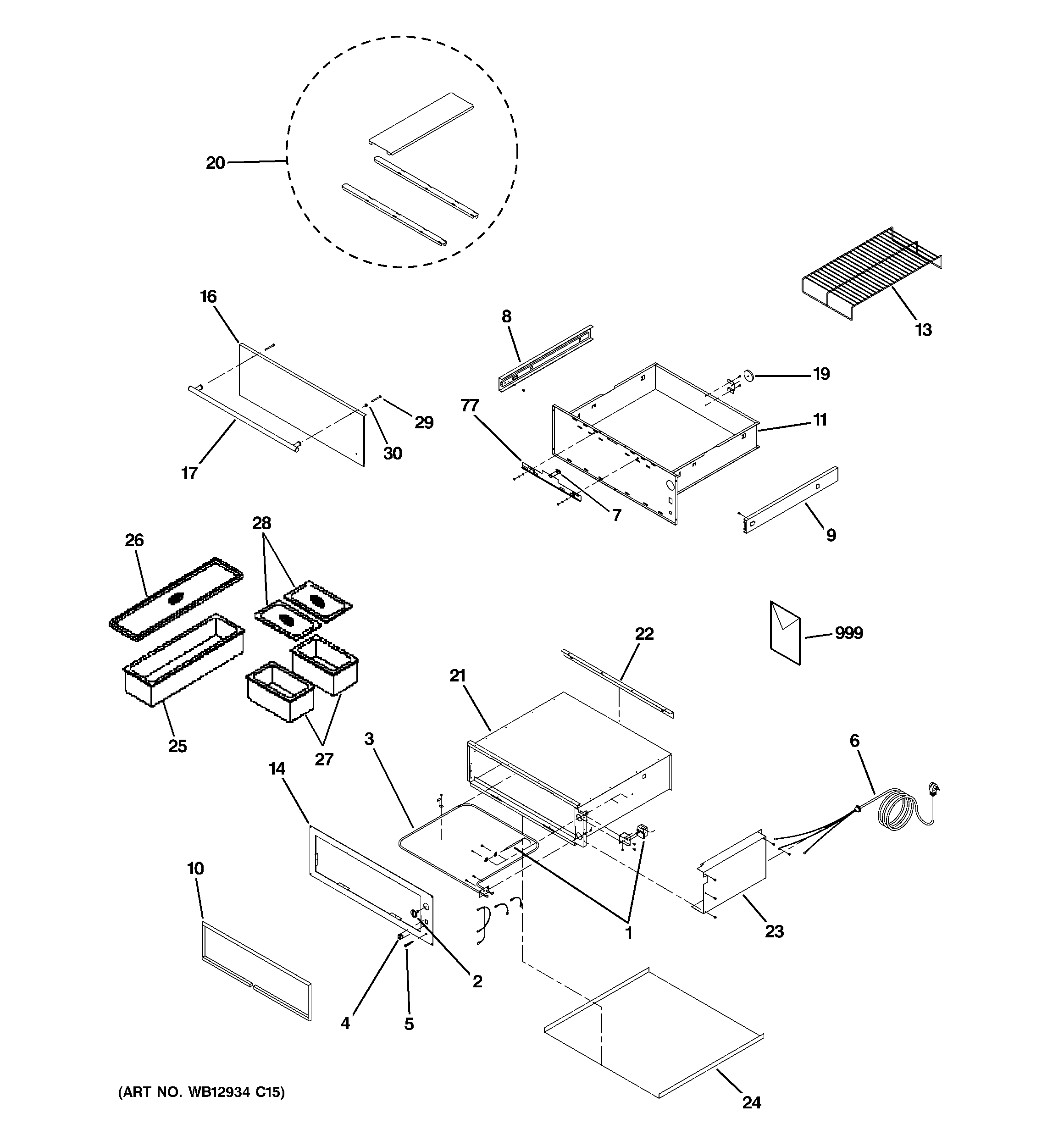

PositionProduct
1THERMOSTAT
2GEN WB03X10349
3WB44X10029 GE Oven Heating Element
4WB24X10206 GE Oven Rocker Switch
5WB02X10587 GE Oven Lamp Indicator
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB39X10014
9GEN WB39X10015
10GEN WB02X11289
11GEN WB58X10020
13WB48X10045 GE Wire Rack
14GEN WB56X10698
16WB55X10822 GE Oven Front Assembly 30" Stainless Steel MG
17WB15X10136 GE Oven Handle 30" Stainless Steel
19GEN WB02X11290
20WB64X10032 GE Oven 30" Rail Service Kit Assembly
21GEN WB63X10059
22GEN WB02X11006
23WB02X11551 GE Oven Warming Drawer Control Panel
24GEN WB02X11008
25WB49X10158 GE Half Pan
26WB49X10159 GE Half Pan Cover
27WB49X10160 GE Quarter Pan
28WB49X10161 GE Quarter Pan Cover
29WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head
30GEN WB01X10289
77GEN WB06X10692
999GEN 49-80301
999WB01X10351 GE Installation Screw (Qty 4)
