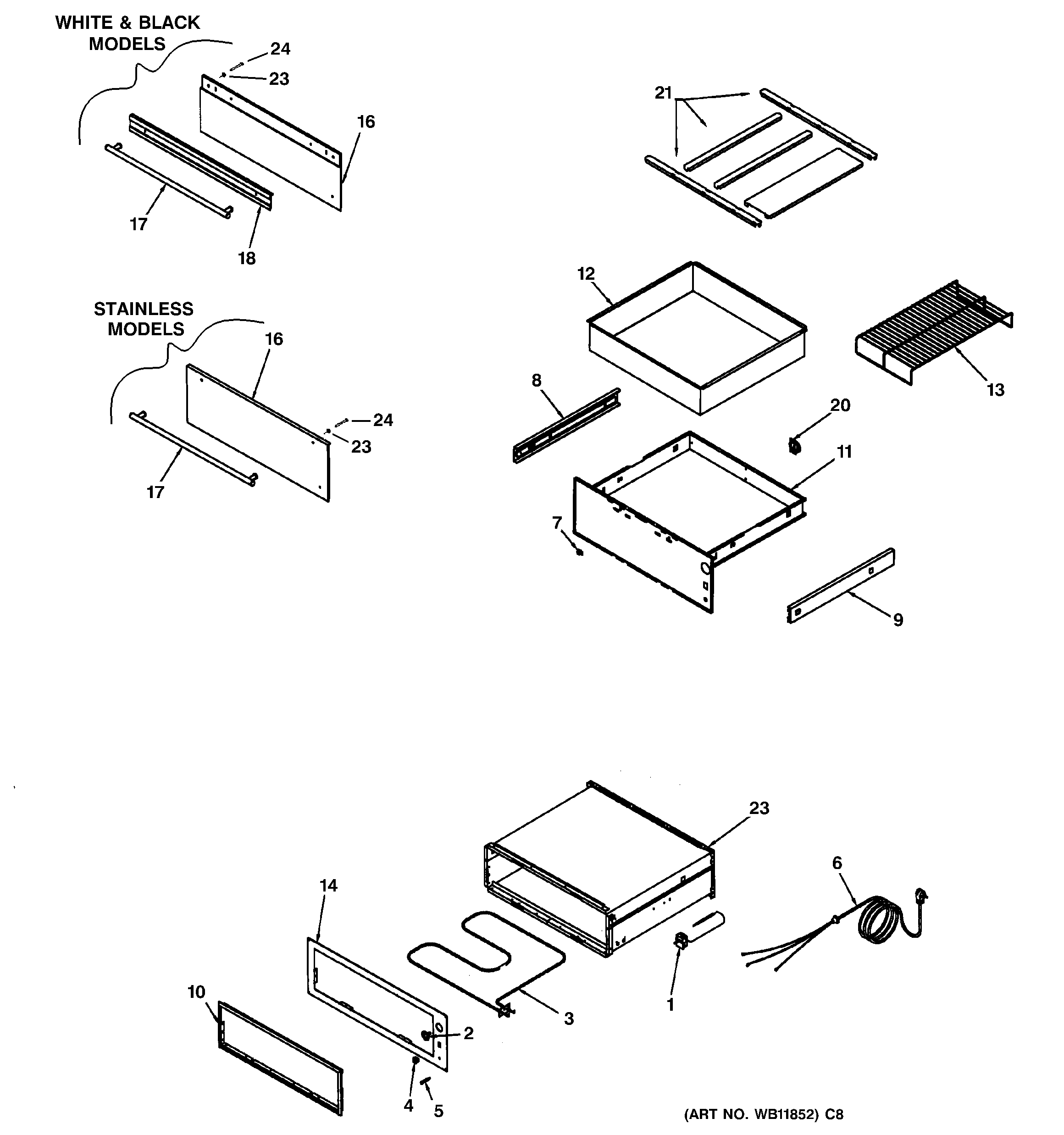

ZTD910WB1WW WARMING DRAWER ASSEMBLY

ZTD910WB1WW WARMING DRAWER ASSEMBLY

Written by

in

ZTD910WB1WW WARMING DRAWER ASSEMBLY

Products

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5WB02X10587 GE Oven Lamp Indicator
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB02X10589
9GEN WB02X10590
10GEN WB02X10593
11WB58X10016 GE Drawer Frame
12GEN WB58X10006
13WB48X10045 GE Wire Rack
14FACE PANEL 30" SERV ASS'
16GEN WB55X10235
17GEN WB15X10033
18GEN WB07X10228
20WB02X10592 GE Magnet Closed Detent
21WB64X10032 GE Oven 30" Rail Service Kit Assembly
23GEN WB01X10289
24WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head
