ZTDX1DPSN1SS UPPER OVEN

ZTDX1DPSN1SS UPPER OVEN

Written by

in

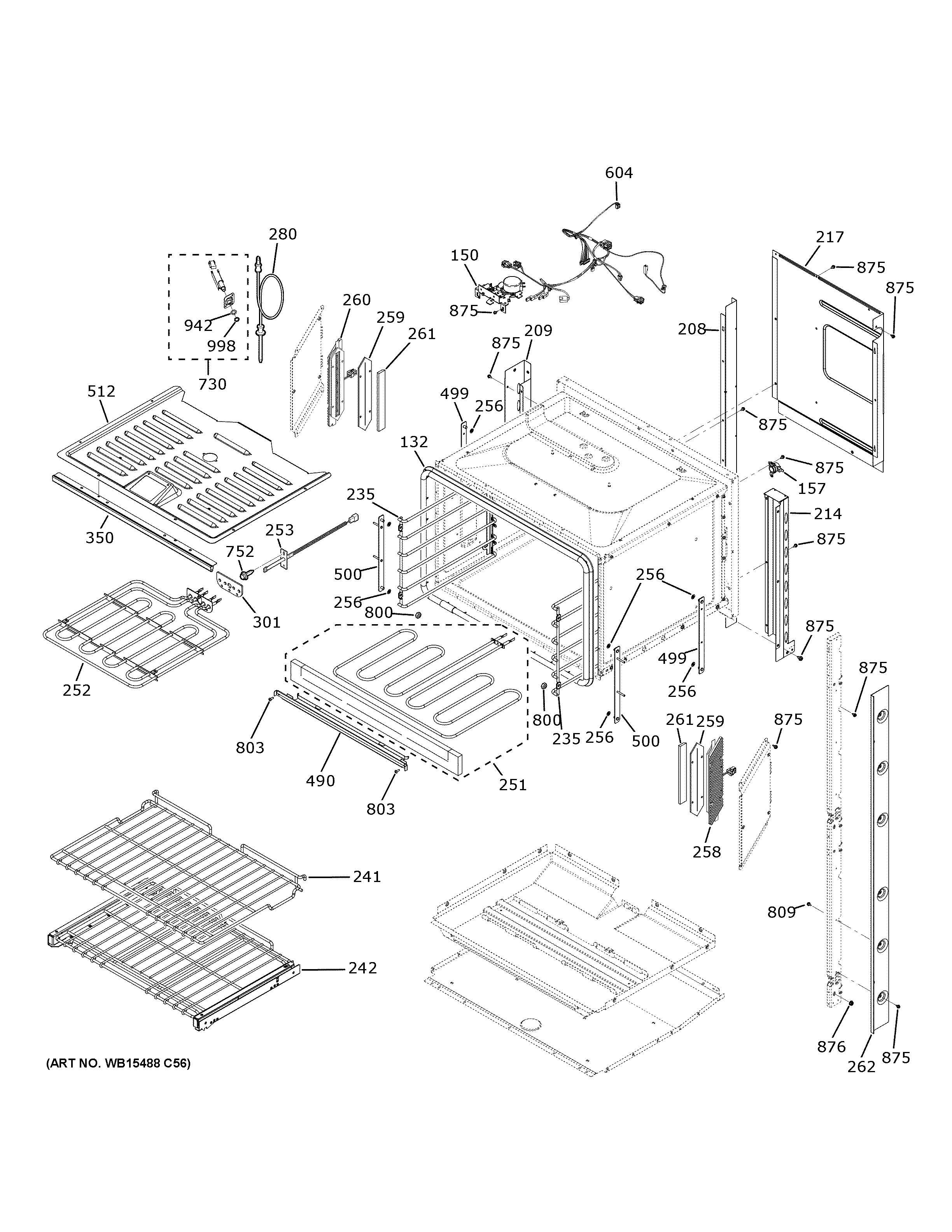

ZTDX1DPSN1SS UPPER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
150LATCH ASM
157HIGH LIMIT SWITCH
208WB34T10140 GE Oven Double Divider Air
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
235WB48X21765 GE Oven Right Guide Rack
235WB48X21766 GE Oven Guide Rack Left
241WB48X34690 GE Flat Rack 30"
242RACK OVEN SLIDE ASM 30"
251WB44X21667 GE Oven Hidden Bake Element Kit
252WB44X40787 GE Broil Element
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
258WB27X23582 GE LED Board Assembly
259WB35X23584 GE LED Insulation
260WB27X23581 GE LED Board Assembly
261WB34X23583 GE Oven LED Glass
262WB07X34906 GE Stainless Trim Vertical Side
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
490WB55T10197 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
500CAVITY RACK BRACE
512WB37T10024 GE Oven Top Plate
604HARNESS WIRE LATCH COM
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5062 GE Oven Screw
800WB01X21270 GE Oven Rack Guide Nut
803WB01X21742 GE Screw
809WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
875WH2X930 GE Screw
876LOCK NUT
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
