ZTDX1DSSN3SS LOWER DOOR

ZTDX1DSSN3SS LOWER DOOR

Written by

in

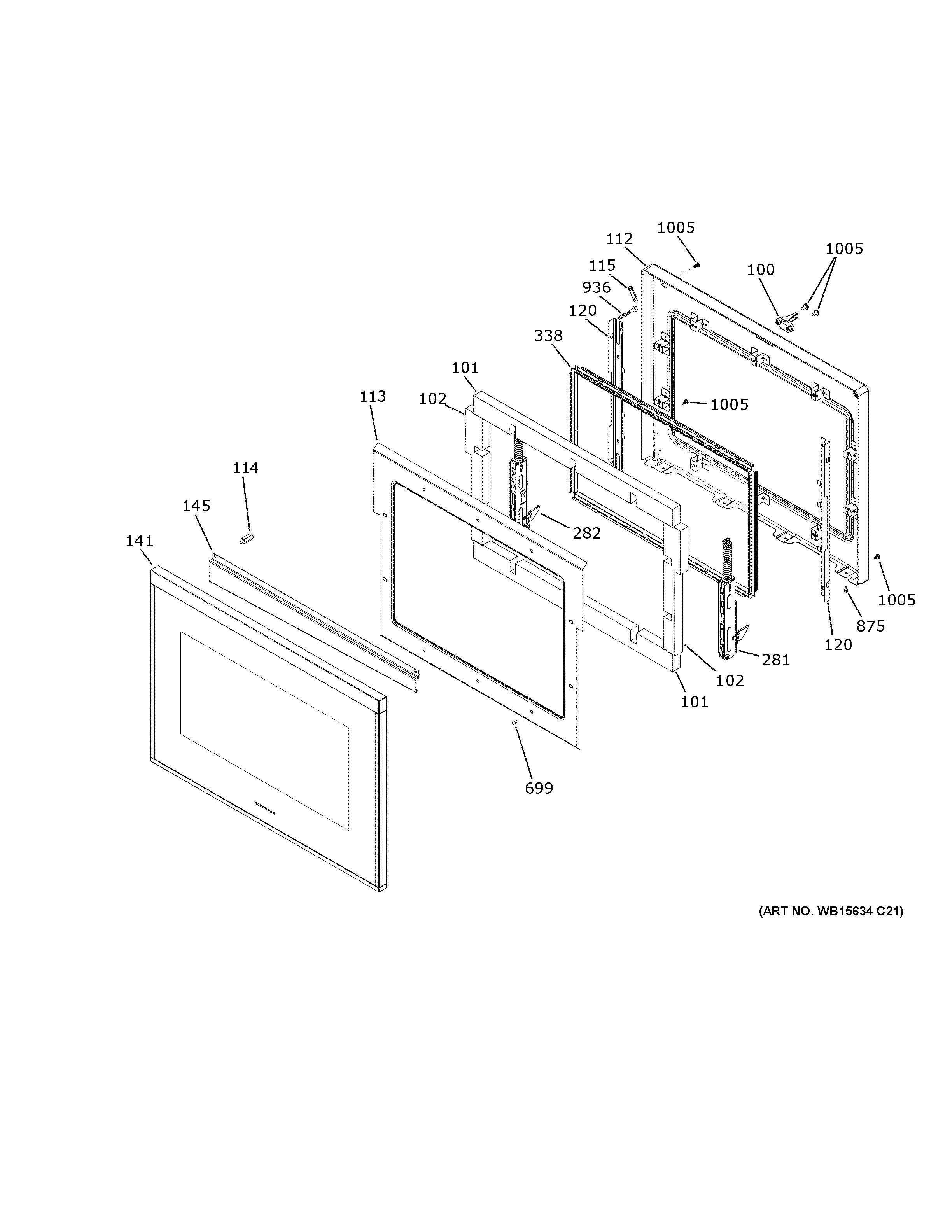

ZTDX1DSSN3SS LOWER DOOR

Products

PositionProduct
100WB14X34677 GE Latch Pawl
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112LINER OVEN DOOR ASM
113WB34X31516 GE Door Insulation Retainer
114SPACER REINFORCEMENT
115WB02X32816 GE Oven Door Liner Plug
120LINER SUPPORT
141OUTER DOOR W/O LOGO
145WB24X33028 GE RJ45 Bracket
281HINGE DOOR SOFT OPEN RIGHT
282HINGE DOOR SOFT OPEN LEFT
338WB56X27662 GE Window Pack Assembly
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB01X24096 GE Screw 8-18X
1005WB01T10008 GE Oven Screw 10-32
