ZTDX1DSSN3SS LOWER OVEN

ZTDX1DSSN3SS LOWER OVEN

Written by

in

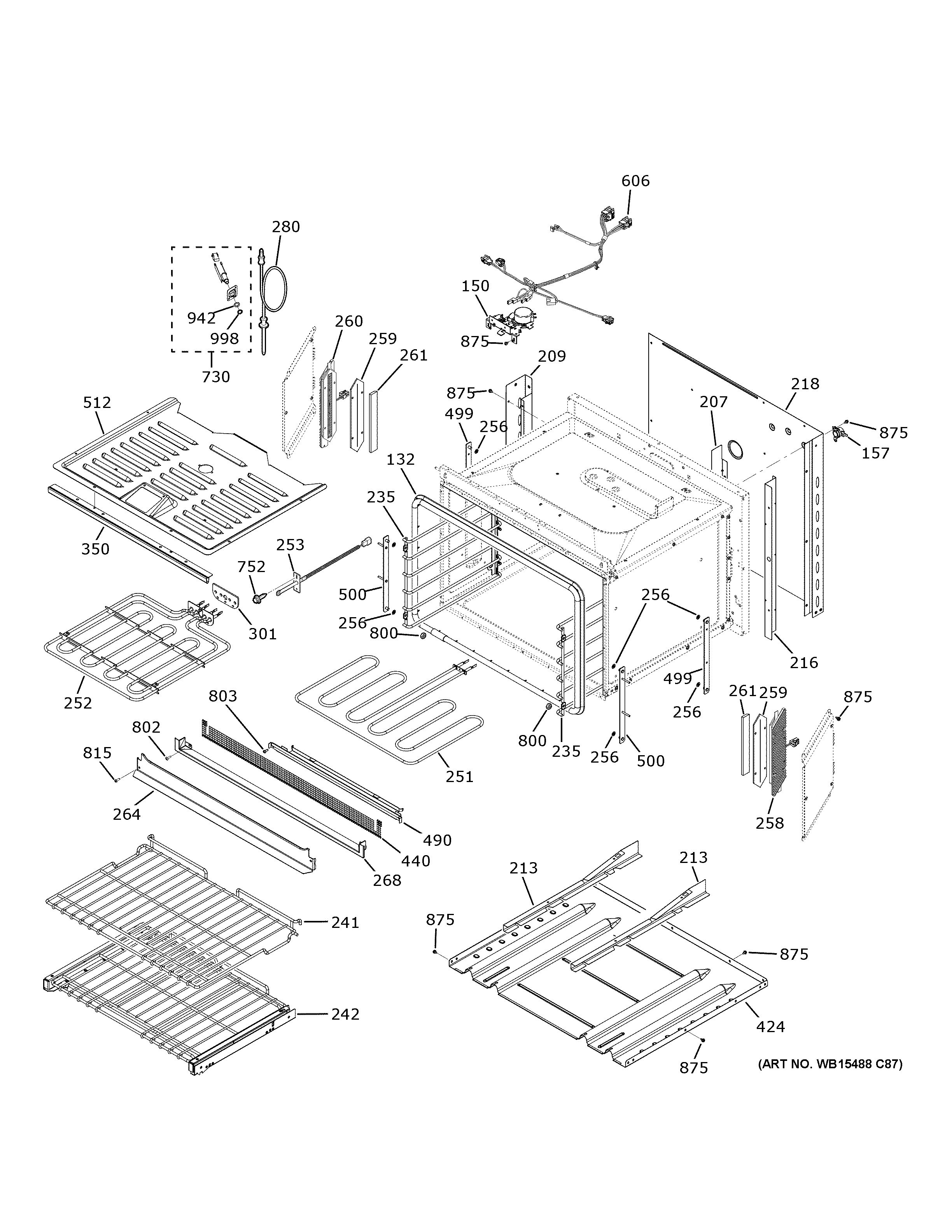

ZTDX1DSSN3SS LOWER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
150WB10X40032 GE Latch and Harness Assembly
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
213WB34T10163 GE Air Divider Bottom
216DIVIDER AIR DUCT RIGHT
218DUCT LOWER REAR DUCT
235WB48X21766 GE Oven Guide Rack Left
235WB48X21765 GE Oven Right Guide Rack
241WB48X34690 GE Flat Rack 30"
242RACK OVEN SLIDE ASM 30"
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
258WB27X23582 GE LED Board Assembly
259WB35X23584 GE LED Insulation
260WB27X23581 GE LED Board Assembly
261WB34X23583 GE Oven LED Glass
264WB07X21783 GE Oven Lower Vent Trim
268WB07T10786 GE Oven Bottom Cabinet Trim
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
424WB56X43352 GE Air Duct Bottom Cover
440SCREEN SUPPORT
490WB55T10197 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
500CAVITY RACK BRACE
512WB37T10024 GE Oven Top Plate
606HARNESS WIRE LATCH COM
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5062 GE Oven Screw
800WB01X21270 GE Oven Rack Guide Nut
802WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
803WB01X21742 GE Screw
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
