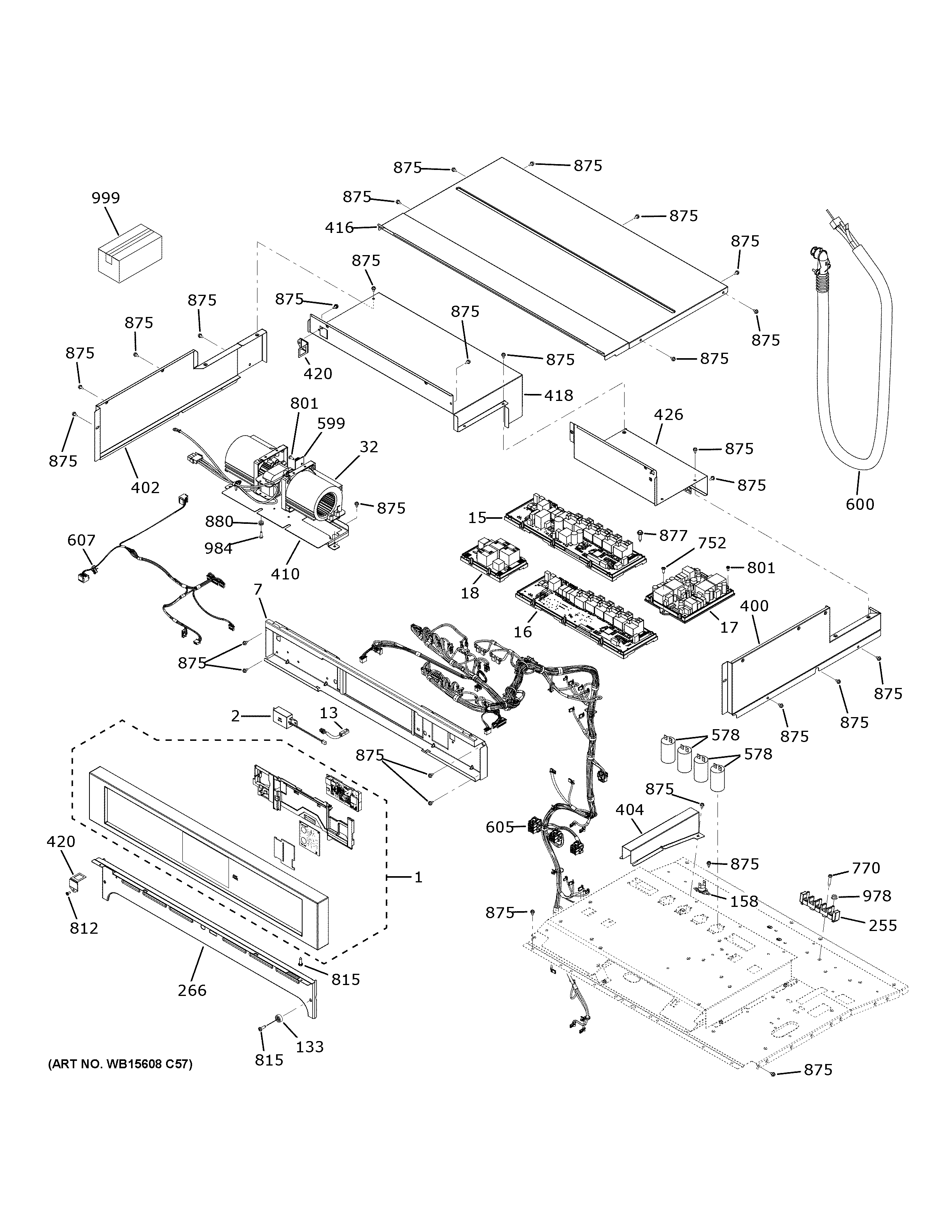

ZTDX1DSSN4SS CONTROL PANELadmin2025-04-26T12:02:19+00:00ZTDX1DSSN4SS CONTROL PANEL ProductsPositionProduct1CONTROL PANEL - STAINLESS2WB27X33354 GE Speaker 70C 3W7WB07X32471 GE Oven Control Panel Mounting BRack13WB18X30704 GE Jumper15UPPER OVEN CONTROL RC17 - FLASHED16LOWER OVEN CONTROL RC17 - FLASHED17WB27X23562 GE Oven LED Power Supply Board18WB27X33083 GE Relay Board and Frame Assembly32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper158WB24X35587 GE Limit Switch255WB17K10001 GE Oven Block Terminal266TRIM VENT UPPER400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB24X32772 GE Top Rear Cover420WB24X33028 GE RJ45 Bracket426WB35T10273 GE Oven Rear Wire Cover578WB27T10662 GE Oven Capacitor599WB27T11463 GE Oven Fan Sensor Board600WB18X33486 GE Conduit Wire Assembly600WB18T10580 GE Oven 6 FT Optional Conduit605HARNESS WIRE MAIN607UI AND RJ45 HARNESS752WB1K5062 GE Oven Screw770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"812WB01T10012 GE Oven Screw815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8875WH2X930 GE Screw877WZ4X416 GE WZ04X0408880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS999WB02T10303 GE Cleaner Lubricant999PM OWNERS MANUAL
