ZTDX1DSSN4SS CONVECTION FANS

ZTDX1DSSN4SS CONVECTION FANS

Written by

in

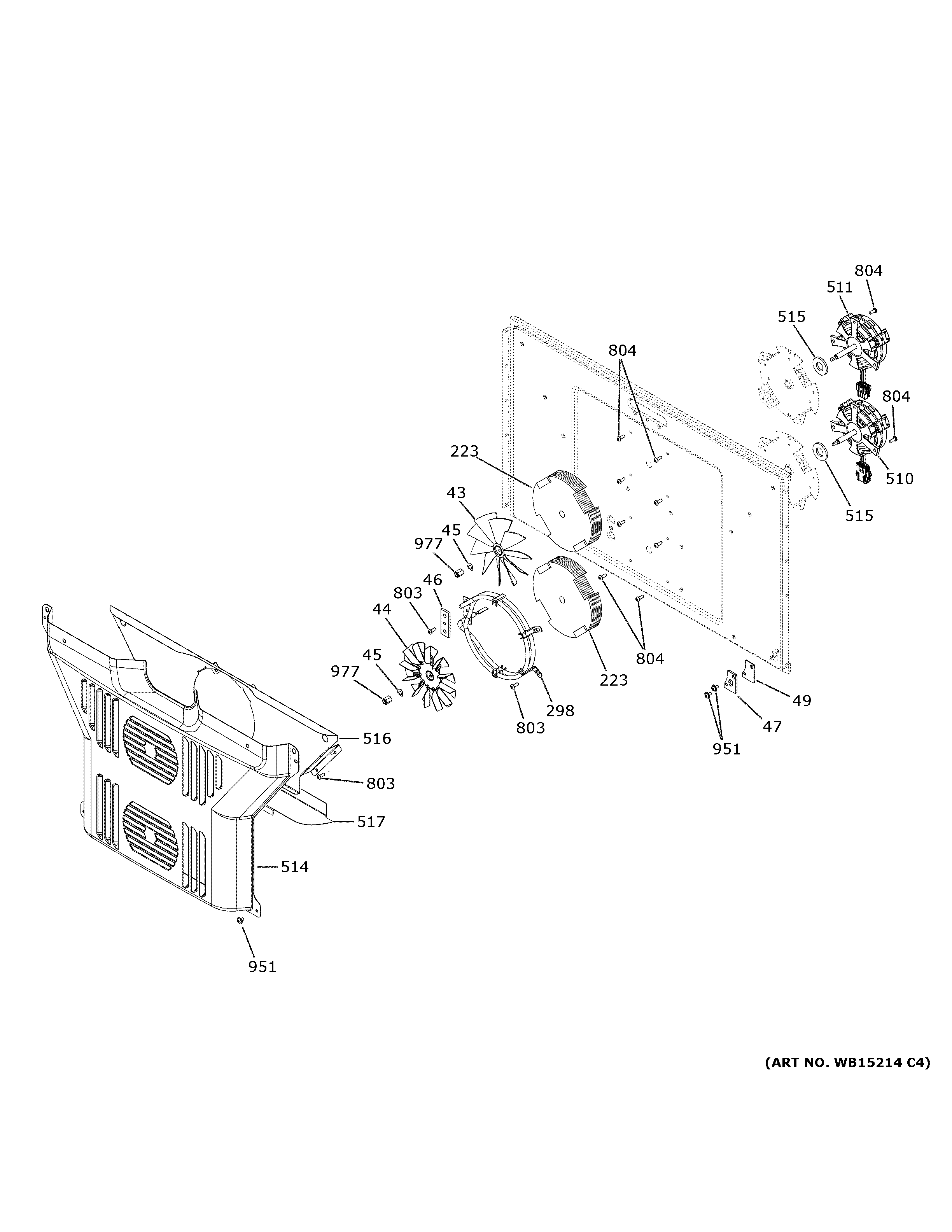

ZTDX1DSSN4SS CONVECTION FANS

Products

PositionProduct
43FAN BLADE
44WB02T10289 GE Oven Stirring Fan Blade
45WB01X36465 GE Washer Spring
46GASKET CONVECTION ELEMENT
47REAR TUBE GASKET
49REAR TUBE GASKET PLATE
223WB35T10259 GE Convection Fan Insulation
298CONVECTION ELEMENT
510WB26X34682 GE Convection Fan Motor
511MOTOR CONVECTION FAN
514BLACK CONVECTION COVER
515WB01T10079 GE Range Gasket
516DUCT CONVECTION BLACK BACK
517CONVECTION AIRFLOW DIVIDER
803WB01X21742 GE Screw
804WB01X34726 GE Screw 8-18 Ab Pnt-20
951SCREW 8-18 T20 3/8 IN
977WB02T10608 GE Oven Hex Nut
