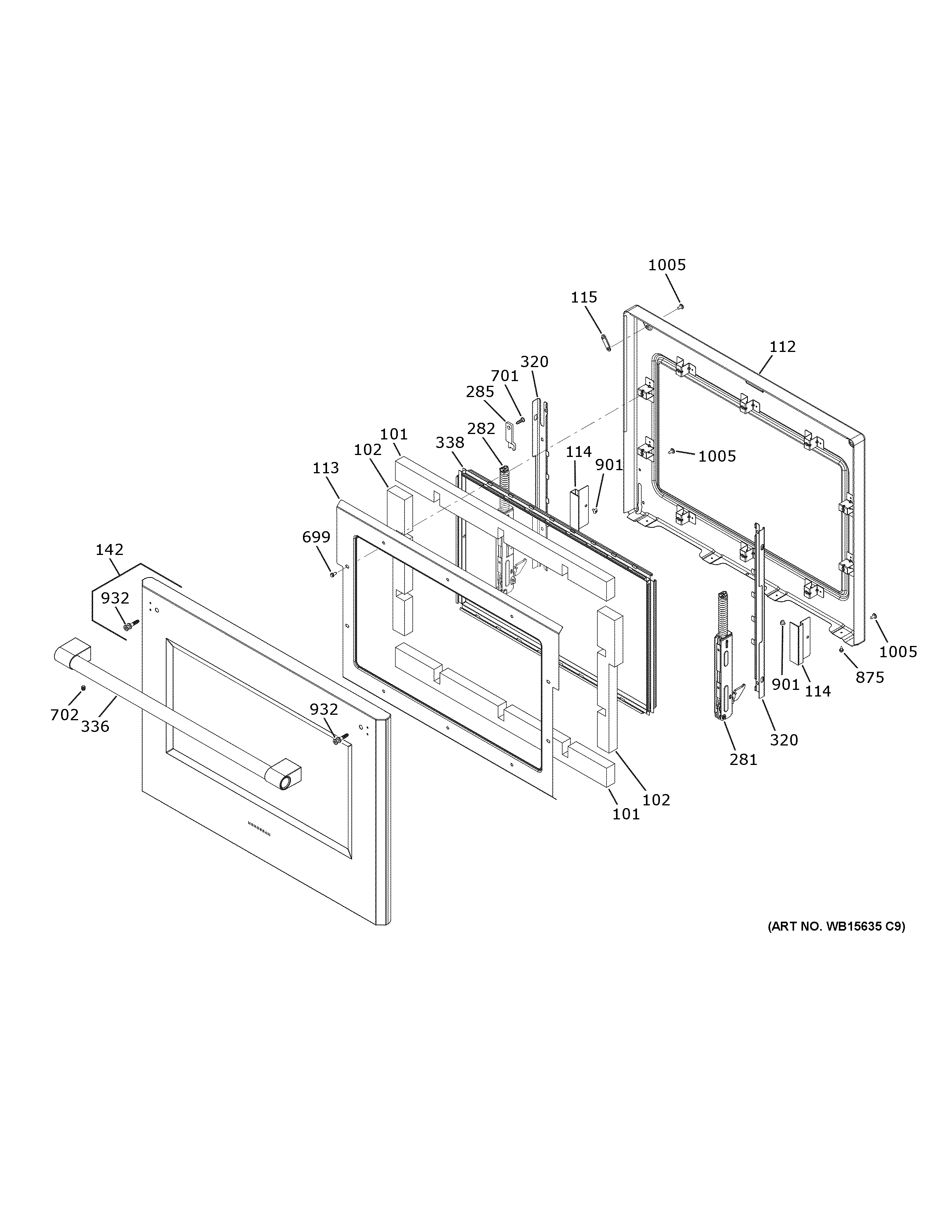

ZTDX1FPSN1SS LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
114BRACKET AND TAPE ASM
115WB02X32816 GE Oven Door Liner Plug
142WB56X45751 GE Stainless Lower Outer Door
281WB10X36953 GE Right Door Soft Close Hinge
282WB10X36945 GE Soft Close Hinge Left Door
285BRACKET HINGE
320LINER SUPPORT
336WB15X41046 GE Stainless Door Handle Pack
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
702WR01X20424 GE Refrigerator Screw
875WH2X930 GE Screw
901SCREW 10-32 MCH TRT20 I/4
932WB01X31574 GE Mounting Stud
1005WB01T10008 GE Oven Screw 10-32
