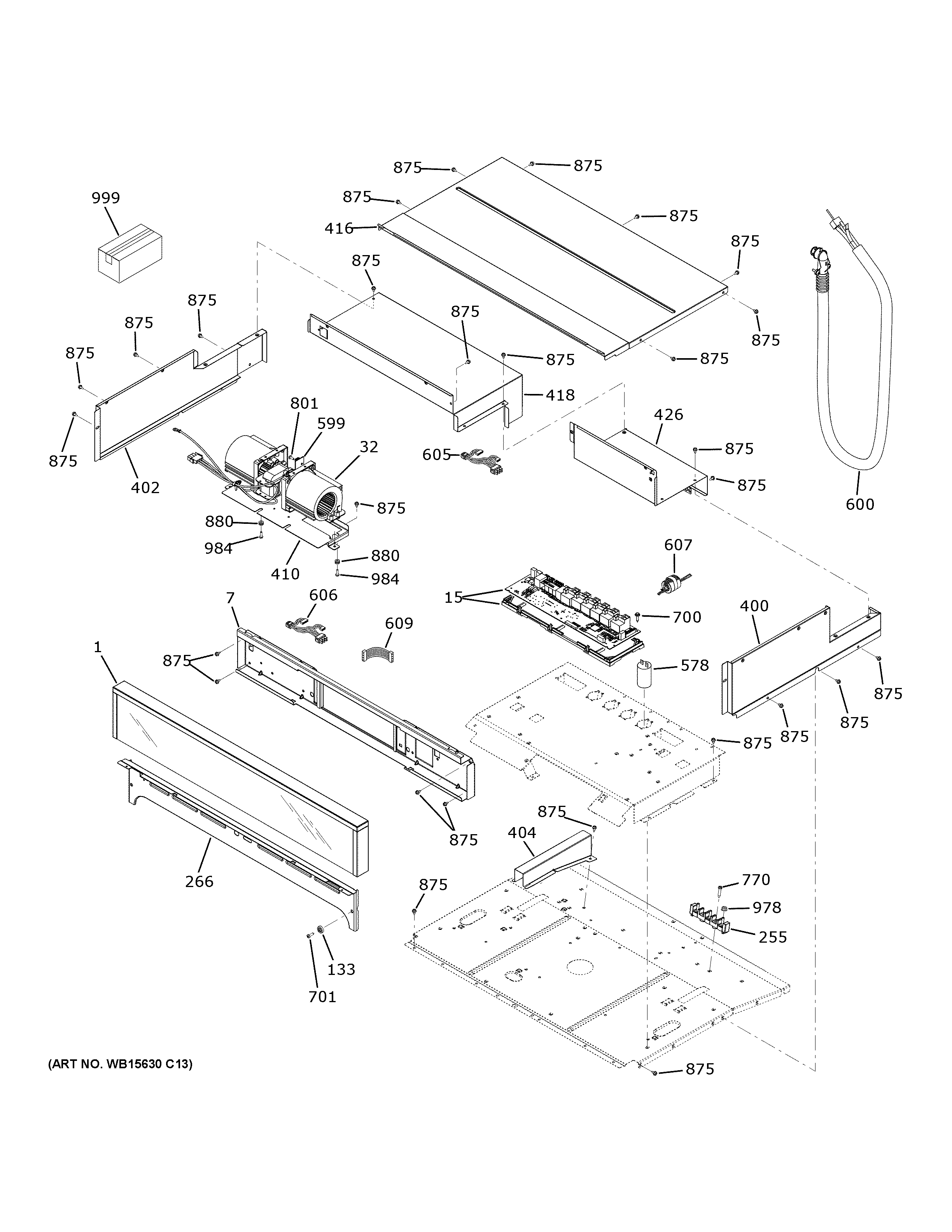

ZTS90DSSN1SS CONTROL PANELadmin2025-04-26T12:03:17+00:00ZTS90DSSN1SS CONTROL PANEL ProductsPositionProduct1WB56X40080 GE Control Panel7WB07X32471 GE Oven Control Panel Mounting BRack15WB27X43210 GE Control Assembly RC17 Flashed32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper255WB17K10001 GE Oven Block Terminal266WB07X32831 GE Upper Trim Vent400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB24X32772 GE Top Rear Cover426WB35T10273 GE Oven Rear Wire Cover578WB27T10662 GE Oven Capacitor599WB27T11463 GE Oven Fan Sensor Board600WB18X35246 GE Conduit Wire SWO600WB18T10578 GE Oven Optional 6 ft Conduit605WB18X32920 GE Wire Main Harness606WB18X32919 GE COM Wire Harness607LATCH COM WIRE HARNESS609WB18X30704 GE Jumper700WZ4X416 GE WZ04X0408701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999MANUAL U&C TIP SHEET999PM MINI MANUAL AND WIRING999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS999WB02T10303 GE Cleaner Lubricant999PM OWNERS MANUAL
