ZTSX1DPSN3SS CONTROL PANEL

ZTSX1DPSN3SS CONTROL PANEL

Written by

in

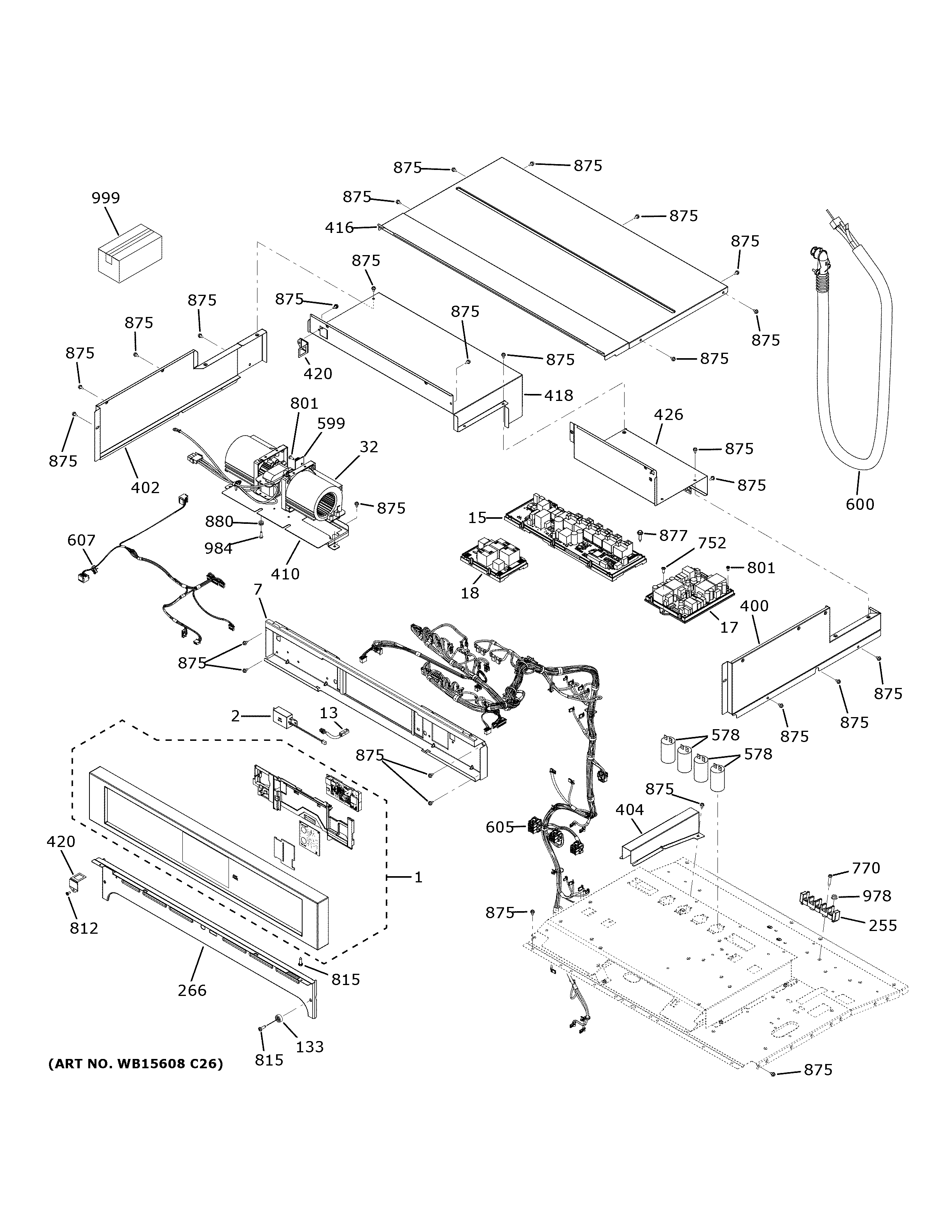

ZTSX1DPSN3SS CONTROL PANEL

Products

PositionProduct
1WB56X47972 GE Dishwasher Control Panel with Wi-Fi
2WB27X33354 GE Speaker 70C 3W
7WB07X32471 GE Oven Control Panel Mounting BRack
13WB18X30704 GE Jumper
15CONTROL RC17 (FLASHED)
17WB27X23562 GE Oven LED Power Supply Board
18WB27X33083 GE Relay Board and Frame Assembly
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266WB07X32831 GE Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
420WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10578 GE Oven Optional 6 ft Conduit
600WB18X35246 GE Conduit Wire SWO
605HARNESS MAIN
607WB18X32919 GE COM Wire Harness
752WB1K5062 GE Oven Screw
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
812WB01T10012 GE Oven Screw
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
877WZ4X416 GE WZ04X0408
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM OWNERS MANUAL
