ZTSX1FPSN4SS CONTROL PANEL

ZTSX1FPSN4SS CONTROL PANEL

Written by

in

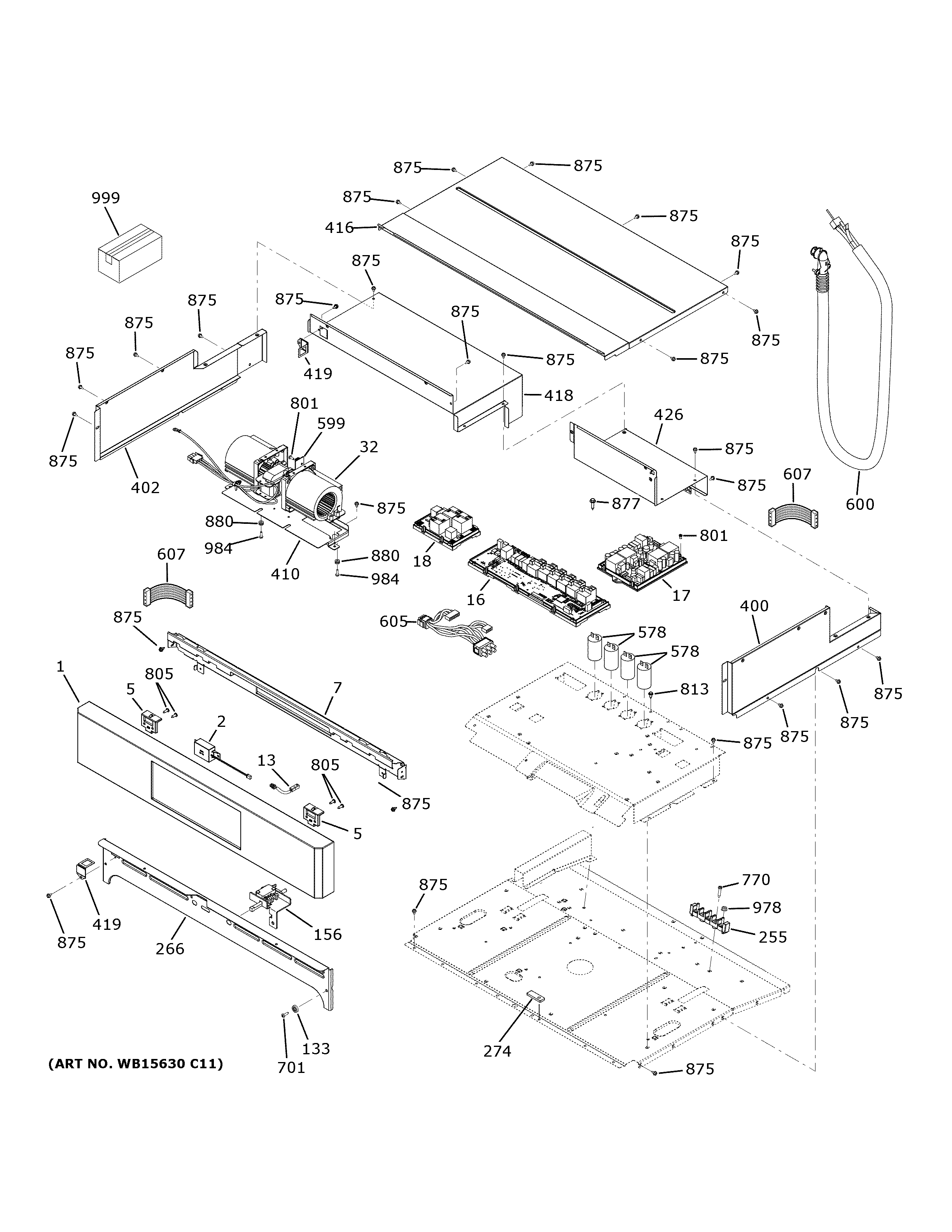

ZTSX1FPSN4SS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL W/ WIFI – STAINLESS
2WB27X33354 GE Speaker 70C 3W
5WB34X29268 GE Oven Control Panel Support Bracket
7WB34X28389 GE Oven Bracket Control Panel Mounting
13WB18X30704 GE Jumper
16RC17 CONTROL – FLASHED
17WB27X23562 GE Oven LED Power Supply Board
18WB27X33083 GE Relay Board and Frame Assembly
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
156WB24X23760 GE Oven Switch Plate Assembly
255WB17K10001 GE Oven Block Terminal
266TRIM VENT UPPER
274SPACER LATCH ASM
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
419WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10578 GE Oven Optional 6 ft Conduit
600WB18X35246 GE Conduit Wire SWO
605HARNESS MAIN
607UI COM AND RJ45 HARNESS
701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
805WB1K5062 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WH2X930 GE Screw
877WZ4X416 GE WZ04X0408
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM INSTRUCTIONS INSTALL
999WB02T10303 GE Cleaner Lubricant
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
