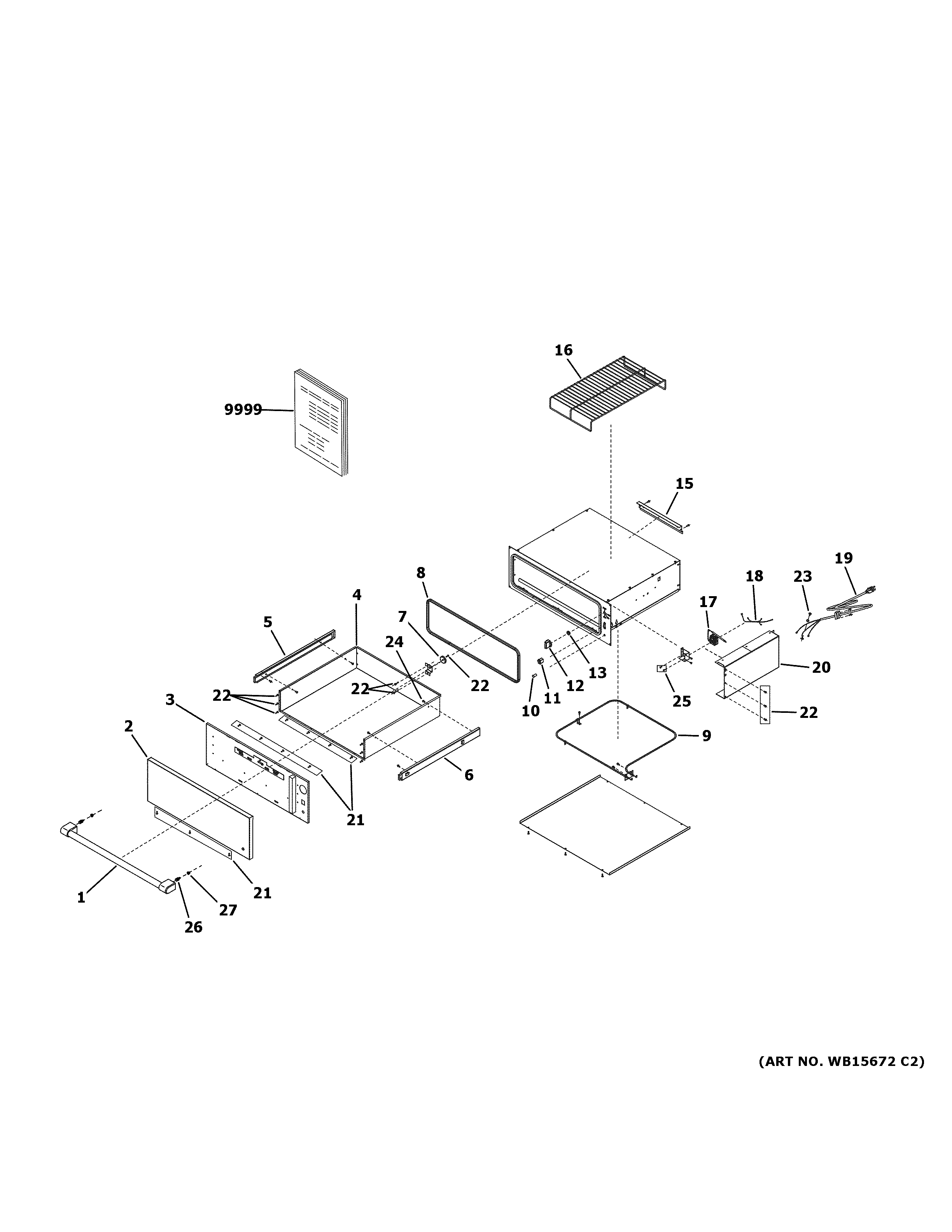

ZTW900PSN1SS WARMING DRAWER

Products

Position	Product
1	WB15X35305 GE Stainless Handle Without Logo
2	STAINLESS STEEL MONOGRAM DOOR
3	DOOR BACK PANEL
4	DRAWER FRAME
5	SLIDE LH
6	SLIDE RH
7	MAGNET AND COVER
8	GASKET SEAL
9	HEATER ELEMENT WITH BRACKET
10	INDICATOR
11	SWITCH
12	MONOGRAM KNOB
13	KNOB SEAL
15	ANTI – TIP BRACKET
16	RACK
17	TEMPERATURE CONTROL WITH SENSOR
18	WIRING HARNESS
19	POWER CORD
20	CONTROL COVER
21	FRONT APRON SCREW
22	SCREW PAN HEAD M4*10
23	WH02X30339 GE Ground Screw
24	SLIDE SCREW
25	SCREW FOR SENSOR
26	HANDLE STUD HEAD 13mm LONG 24 mm
27	HANDLE MOUNTING NUT
9999	PM MINI MANUAL AND WIRING
9999	PM INSTALL INSTRUCTIONS
9999	PM OWNERS MANUAL
