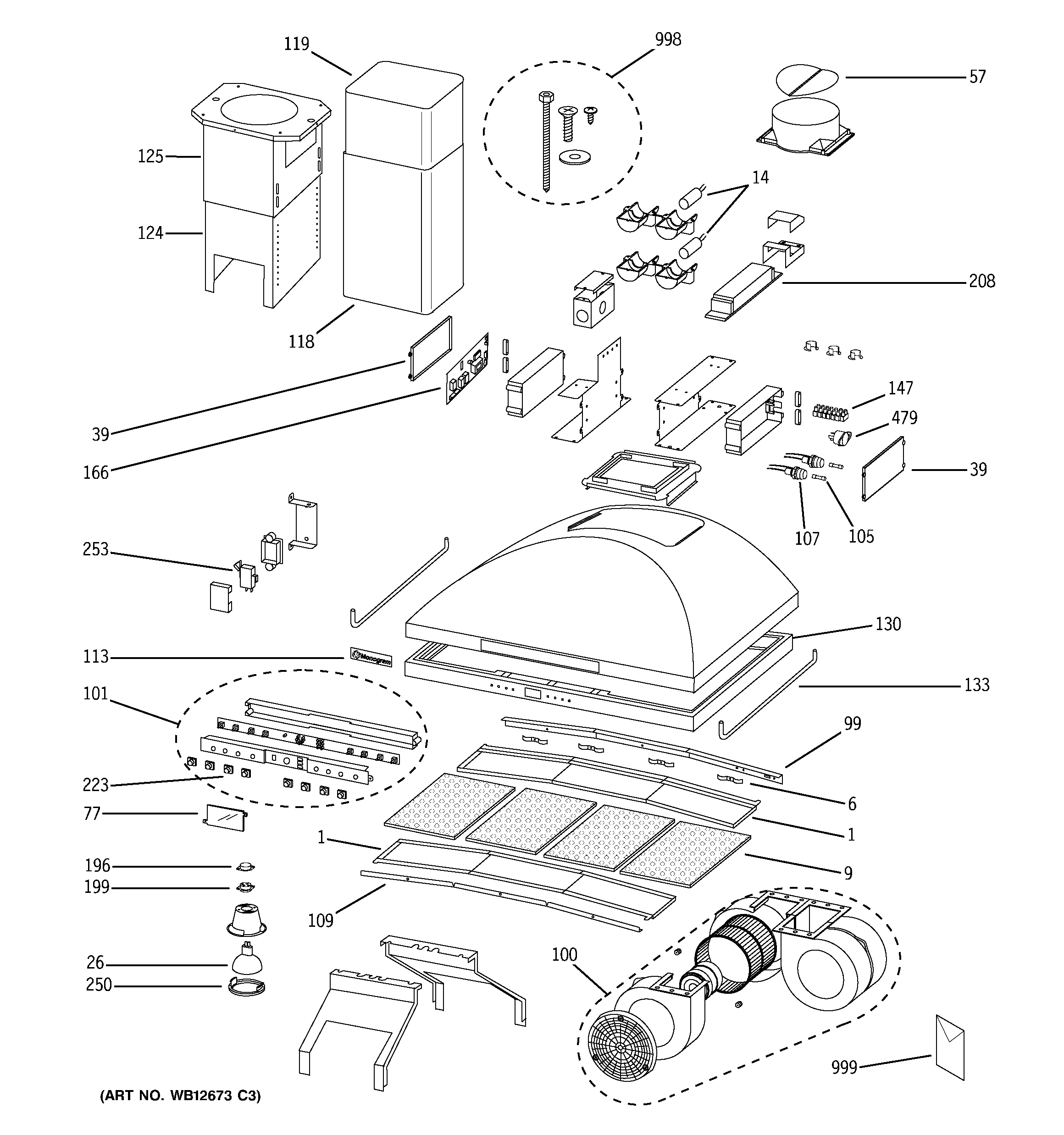

ZV1050S1FSS RANGE HOOD

Products

Position	Product
1	FRAME
6	GEN 02000191
9	WB02X10888 GE Grease Filter 4/Box
14	WB17X10032 GE Oven START Capacitor with Wires
26	WB25X37025 GE Bulb Lamp
39	COVER
57	WB02X11327 GE Oven Air Outlet Connection 8"
77	WB02X10801 GE Oven Plexiglas
99	GREASE FILTER REAR BRACK
100	BLOWER ASSEMBLY
101	SWITCH BOX ASSEMBLY
105	WB27X10542 GE Oven Fuse
107	WB02X10647 GE Oven Fuse Holder
109	GEN WB02X10891
113	WB02X10833 GE Oven Monogram Badge Small
118	WB38X10135 GE Oven Bottom Duct for Vent
119	WB38X10165 GE Vent Upper Duct Cover
124	WB38X10162 GE Oven Bottom Telescopic Skillet
125	WB38X10163 GE Oven Upper Telescopic Bracket
130	FRONT PANEL
133	CUTLERY HANGER, ACCESSOR
147	WB02X10893 GE Hood Junction Clamp
166	WB02X10894 GE Oven Electrical Printed Circuit
196	REFLECTOR
199	WB02X10400 GE Oven Ceramic Insulation Base
208	WB17X10002 GE Oven Transformer
223	WB03X10149 GE Bottom Oven Switch
250	WB01X10002 GE Oven Ring Nut
253	WB24X10001 GE Oven Microswitch
479	WB02X10402 GE Oven Triac
998	WB01X10204 GE Hardware Pack
999	GEN 31-20787
999	GEN 49-80153
999	GEN 49-80157
