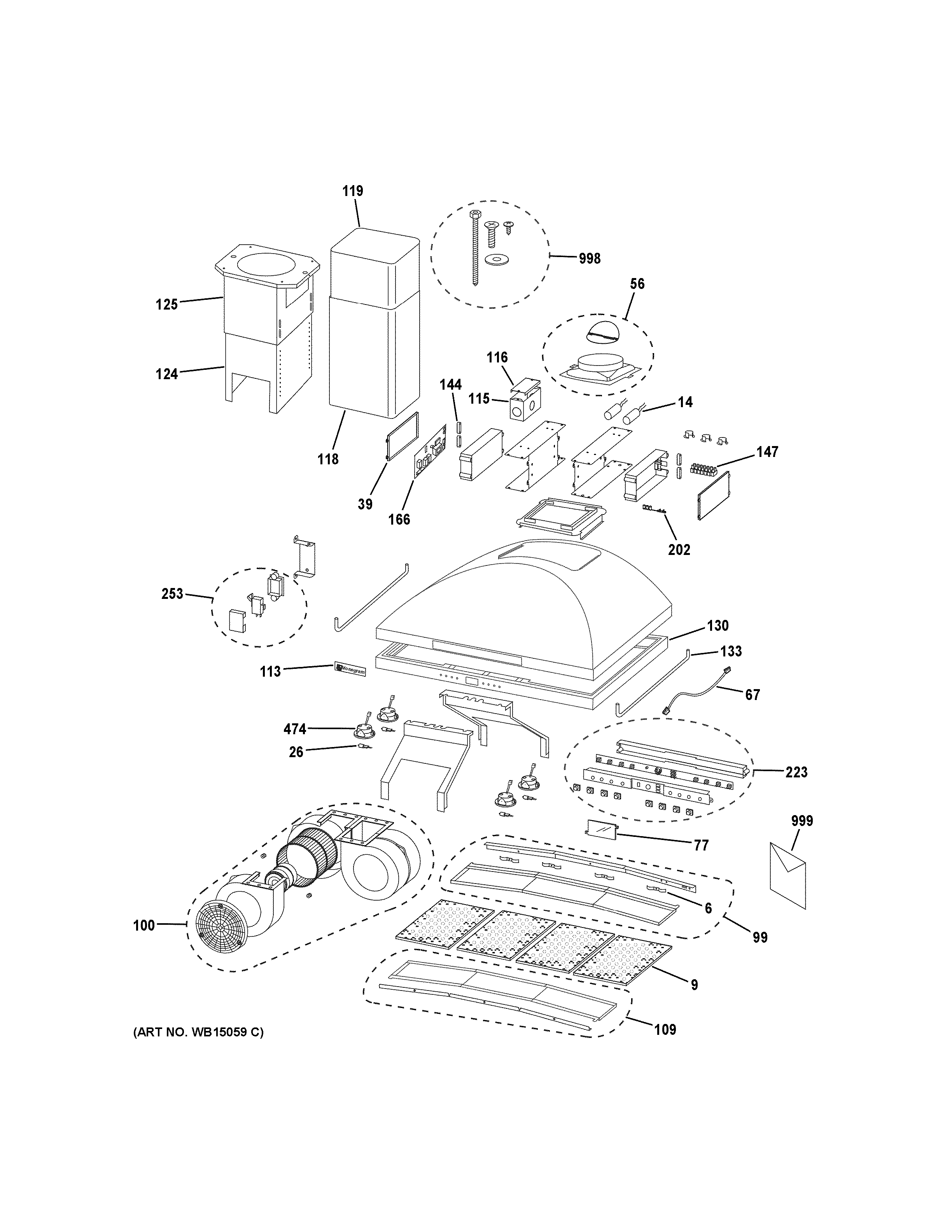

ZV1050SF3SS RANGE HOOD

Products

Position	Product
6	SPRING
9	WB02X10888 GE Grease Filter 4/Box
14	WB17X10035 GE Capacitor with 4 Wires
26	WB25X10020 GE Oven Bulb
39	COVER
56	WB02X11327 GE Oven Air Outlet Connection 8"
67	RIBBON CABLE WITH TOROID
77	WB02X10801 GE Oven Plexiglas
99	GREASE FILTER REAR BRACK
100	WB26X31758 GE Oven Blower Assembly
109	GREASE FILTER FRONT BRAC
113	WR04X24243 GE Refrigerator Badge Monogram Small No
115	WB02X11490 GE Dishwasher Junction Box
116	WB59X10006 GE Cover Oven
118	WB38X10164 GE Bottom Vent Duct Cover
119	WB38X10165 GE Vent Upper Duct Cover
124	WB38X10162 GE Oven Bottom Telescopic Skillet
125	WB38X10163 GE Oven Upper Telescopic Bracket
130	FRONT PANEL
133	CUTLERY HANGER, ACCESSOR
144	STRAIN RELIEF
147	WB02X10893 GE Hood Junction Clamp
166	WB27X11076 GE Oven Control Board
202	WIRE GUIDE
223	WB03X10335 GE Range Hood Switch Box Assembly
253	WB24X10192 GE Microswitch Assembly
474	HALOGEN LAMP ASSY
998	WB01X10204 GE Hardware Pack
999	PM INSTALL INSTRUCTIONS
999	PM MINI MANUAL
999	MOUNTING TEMPLATE
999	PM OWNERS MANUAL
