ZV36SSJ3SS RANGE HOOD

ZV36SSJ3SS RANGE HOOD

Written by

in

ZV36SSJ3SS RANGE HOOD

Products

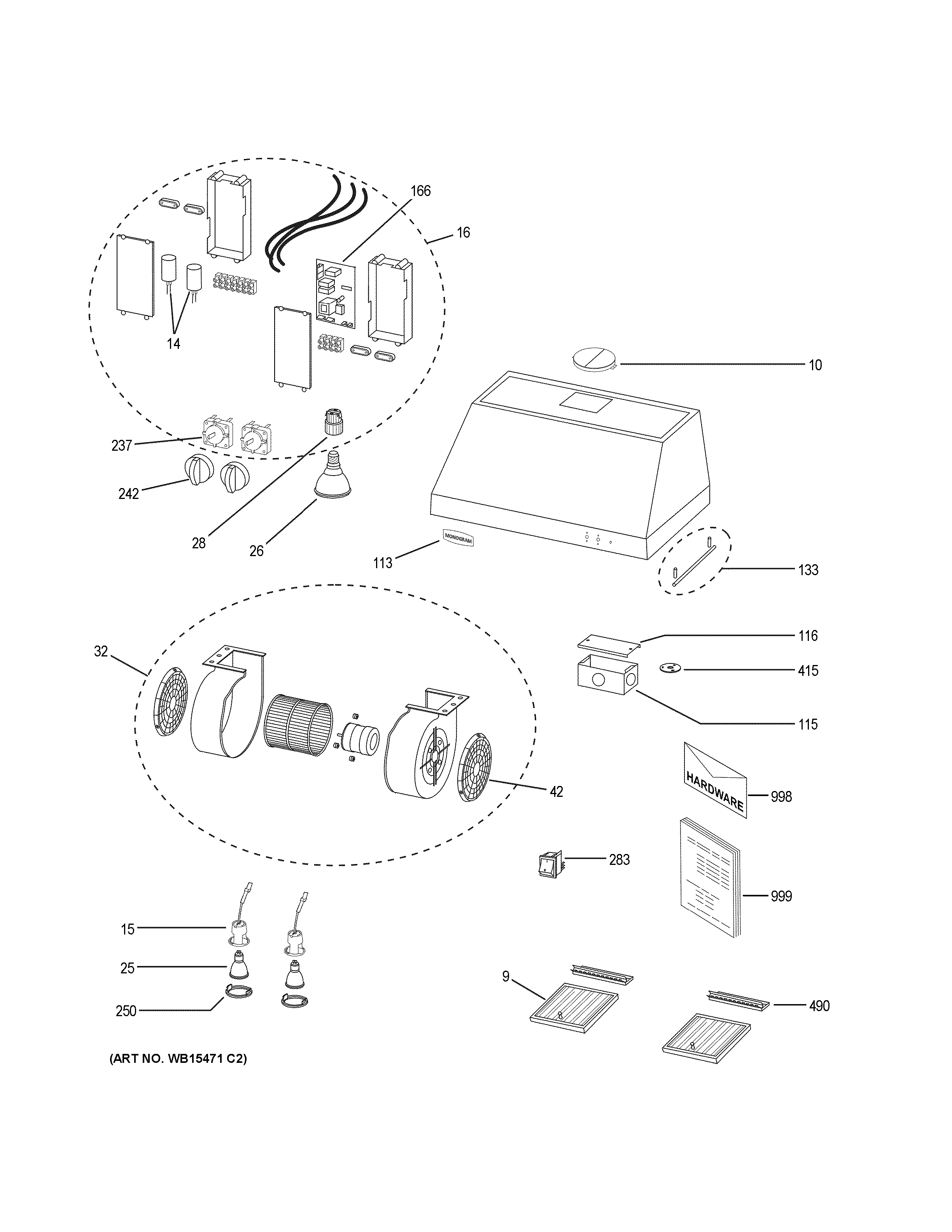

PositionProduct
9WB02X25887 GE Range Hood Grease Filter
10WB34X25902 GE Oven 10" Damper Assembly
14WB27X25903 GE Capacitor
15WB08X10053 GE Lamp Socket and Wire Assembly
16WB27X26342 GE Control Box and Wiring
25WB08X10052 GE Oven Light Bulb
26WB25X25901 GE Oven Infrared Lamp
28WB18X25907 GE Lamp Socket
32WB26X31760 GE Oven Blower Assembly
42WB07X10001 GE Oven Inlet Flange
113WR04X24243 GE Refrigerator Badge Monogram Small No
115WB02X11490 GE Dishwasher Junction Box
116WB59X10006 GE Cover Oven
133UTENSILS ROD
166WB27X25906 GE Lamp Triac Board
237WB27X25900 GE Oven Light Motor Switch
242WB03X26343 GE Oven Knob
250WB01X10349 GE Ring Nut
283WB27X26167 GE Infrared Warming Lamp
415STRAIN RELIEF GROMMET
490WB63X25886 GE Grease Tray
998INSTALLATION HARDWARE
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
