ZV750SY6SS RANGE HOOD

ZV750SY6SS RANGE HOOD

Written by

in

ZV750SY6SS RANGE HOOD

Products

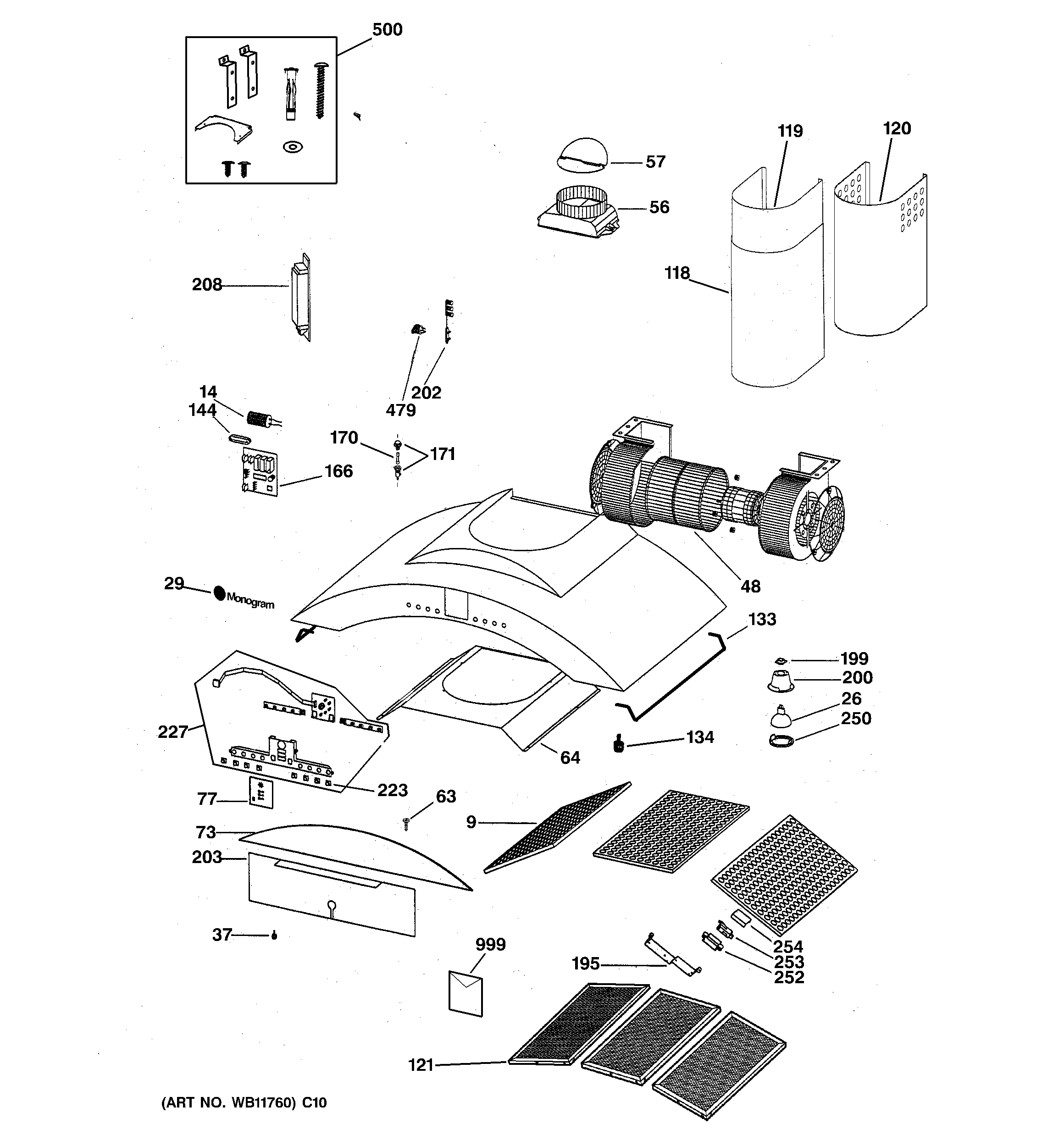

PositionProduct
9WB02X11491 GE Replacement Grease Filter
14CONDENSER
26WB25X37025 GE Bulb Lamp
29WB02X10832 GE Oven Monogram Logo
37THUMB SCREW
48WB26X10158 GE Oven Blower Motor Assembly
57WB02X11328 GE Oven 6" Air Outlet Connection
63WB01X10266 GE Oven Visor Plastic Screw
64WB02X11375 GE Bottom Blower Bracket
73WB07X10007 GE Oven Visor Glass
77WB02X10642 GE Oven Plexiglas Display Cover
118GEN WB38X10131
119GEN WB38X10132
119GEN WB38X10047
120GEN WB38X10043
120GEN WB38X10042
121WB02X10731 GE Charcoal Filter Set
133WB03X10092 GE Oven Implement Holder
134WB01X10170 GE Oven Implement Holder Screw
144STRAIN RELIEF
166PRINTED CIRCUIT BOARD
170FUSE
171WB02X10647 GE Oven Fuse Holder
195BRACKET
199WB02X10400 GE Oven Ceramic Insulation Base
200DICHROIC LAMP PROTECTION
202WIRE GUIDE
203WB07X11267 GE Hood Blocking Bracket
208WB17X10002 GE Oven Transformer
223SWITCH BUTTON
227GEN WB27X10620
250WB01X10002 GE Oven Ring Nut
252WB07X10003 GE Oven Micro Switch Box
253WB24X10001 GE Oven Microswitch
254WB07X10004 GE Oven Microswitch Box Cover
479WB02X10402 GE Oven Triac
500GEN WB02X10655
999GEN 31-20762
999GEN 49-8818
999GEN 49-8964-1
999GEN 49-8990
