ZV755SP3SS RANGE HOOD

Products

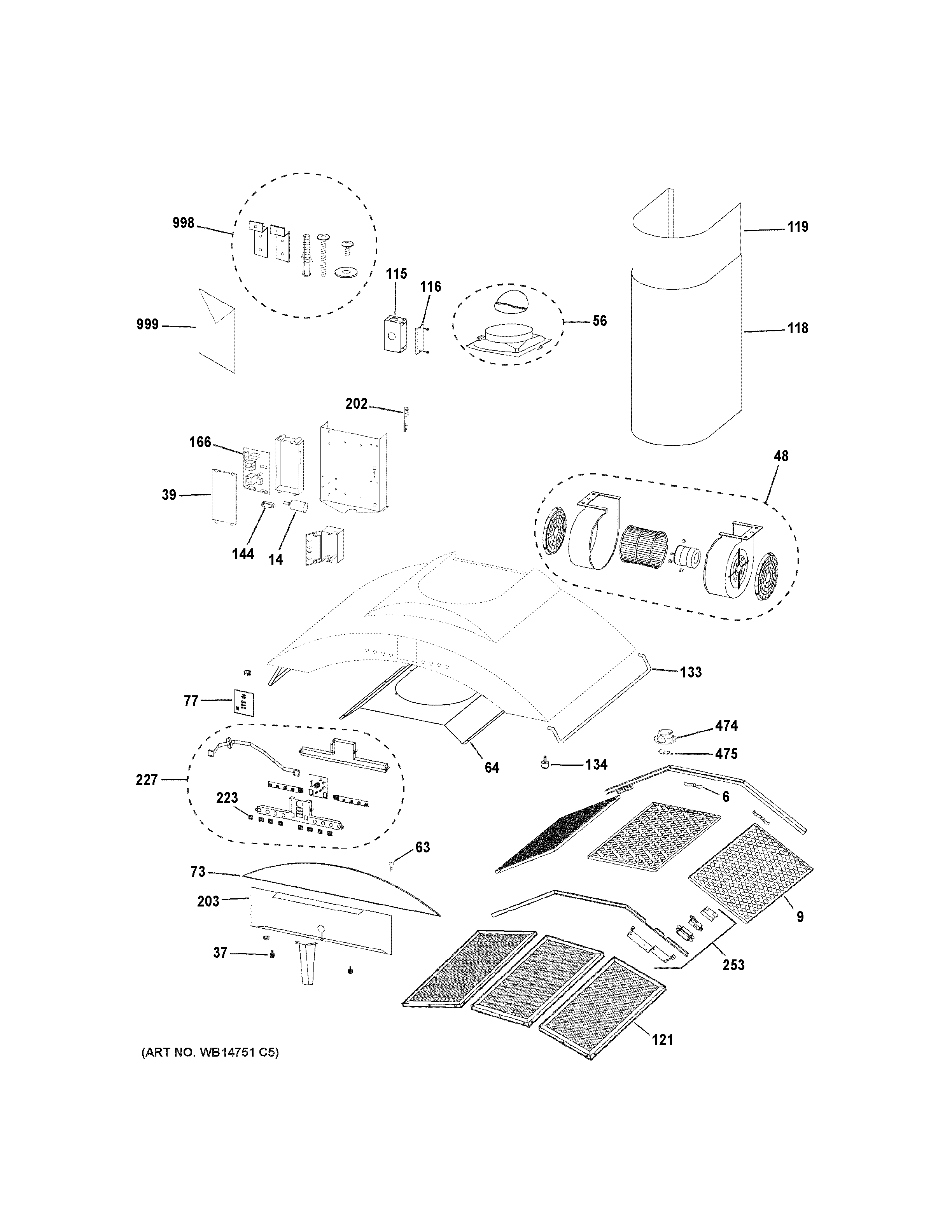

Position	Product
6	SPRING
9	WB02X11491 GE Replacement Grease Filter
14	WB17X10032 GE Oven START Capacitor with Wires
37	THUMB SCREW
39	COVER
48	BLOWER ASM
56	WB02X11328 GE Oven 6" Air Outlet Connection
63	WB01X10266 GE Oven Visor Plastic Screw
64	WB02X11375 GE Bottom Blower Bracket
73	WB07X10007 GE Oven Visor Glass
77	WB02X10642 GE Oven Plexiglas Display Cover
115	WB02X11490 GE Dishwasher Junction Box
116	WB59X10006 GE Cover Oven
118	WB38X10142 GE Bottom Duct Cover
119	WB38X10143 GE Upper Duct Cover
121	WB02X10731 GE Charcoal Filter Set
133	WB03X10092 GE Oven Implement Holder
134	WB01X10170 GE Oven Implement Holder Screw
144	STRAIN RELIEF
166	WB27X11076 GE Oven Control Board
202	WIRE GUIDE
203	WB07X11267 GE Hood Blocking Bracket
223	WB03X10149 GE Bottom Oven Switch
227	WB27X11077 GE Oven Switch Box Assembly
253	WB24X10179 GE Oven Microswitch Assembly
474	HALOGEN LAMP ASSY
475	WB25X10020 GE Oven Bulb
998	WB01X10403 GE Hood Installation Kit
999	PM INSTALL INSTRUCTIONS
999	MINI MANUAL
999	USE & CARE
