ZV800BJ1BB RANGE HOOD

ZV800BJ1BB RANGE HOOD

Written by

in

ZV800BJ1BB RANGE HOOD

Products

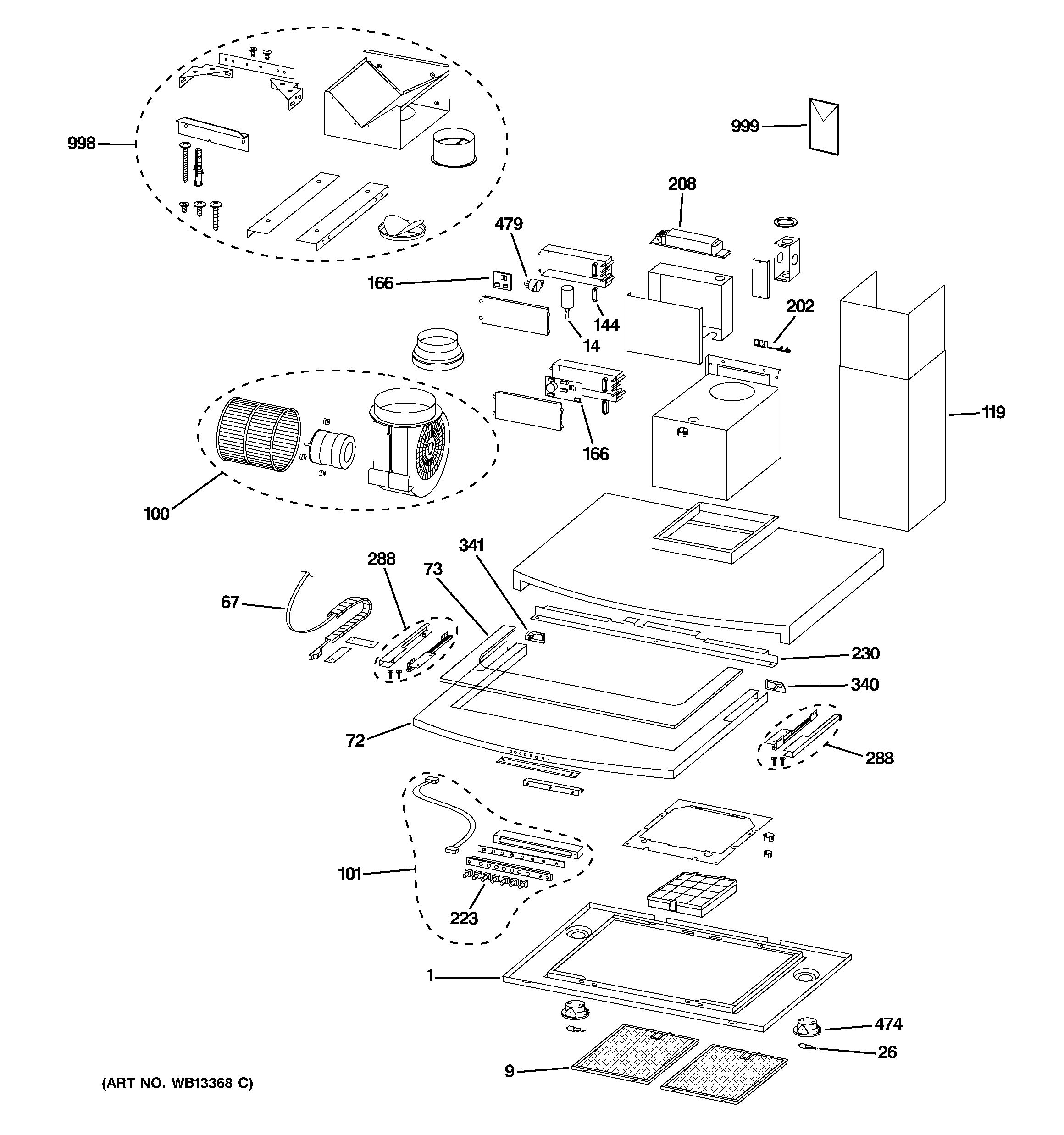

PositionProduct
1FRAME
9WB02X11137 GE Grease Filter
9RECIRC FILTER KIT
14WB17X10032 GE Oven START Capacitor with Wires
26WB01X10239 GE Halogen Lamp 20W 12V G4 Base
67WIRES
72GEN WB07X10867
73WB07X10868 GE Glass Visor
100WB26X31754 GE Oven Blower Assembly
101GEN WB03X10255
119GEN WB38X10087
119GEN WB38X10086
144STRAIN RELIEF
166WB02X10894 GE Oven Electrical Printed Circuit
166WB02X11136 GE Oven Range Hood Control Board
202WIRE GUIDE
208WB17X10002 GE Oven Transformer
223WB03X10149 GE Bottom Oven Switch
230SWITCH BOARD BOX COVER
288RUNNER BALL LEFT SUPPORT
288WB39X10012 GE Oven Right Support Ball Runner
340GEN WB02X11134
341GEN WB02X11135
474HALOGEN LAMP
479WB02X10402 GE Oven Triac
998WB02X11140 GE Oven Fitting Set
999GEN 49-80272
999GEN 49-80271
999GEN 49-80270
999GEN 49-80268
