ZV830SM2SS RANGE HOOD

ZV830SM2SS RANGE HOOD

Written by

in

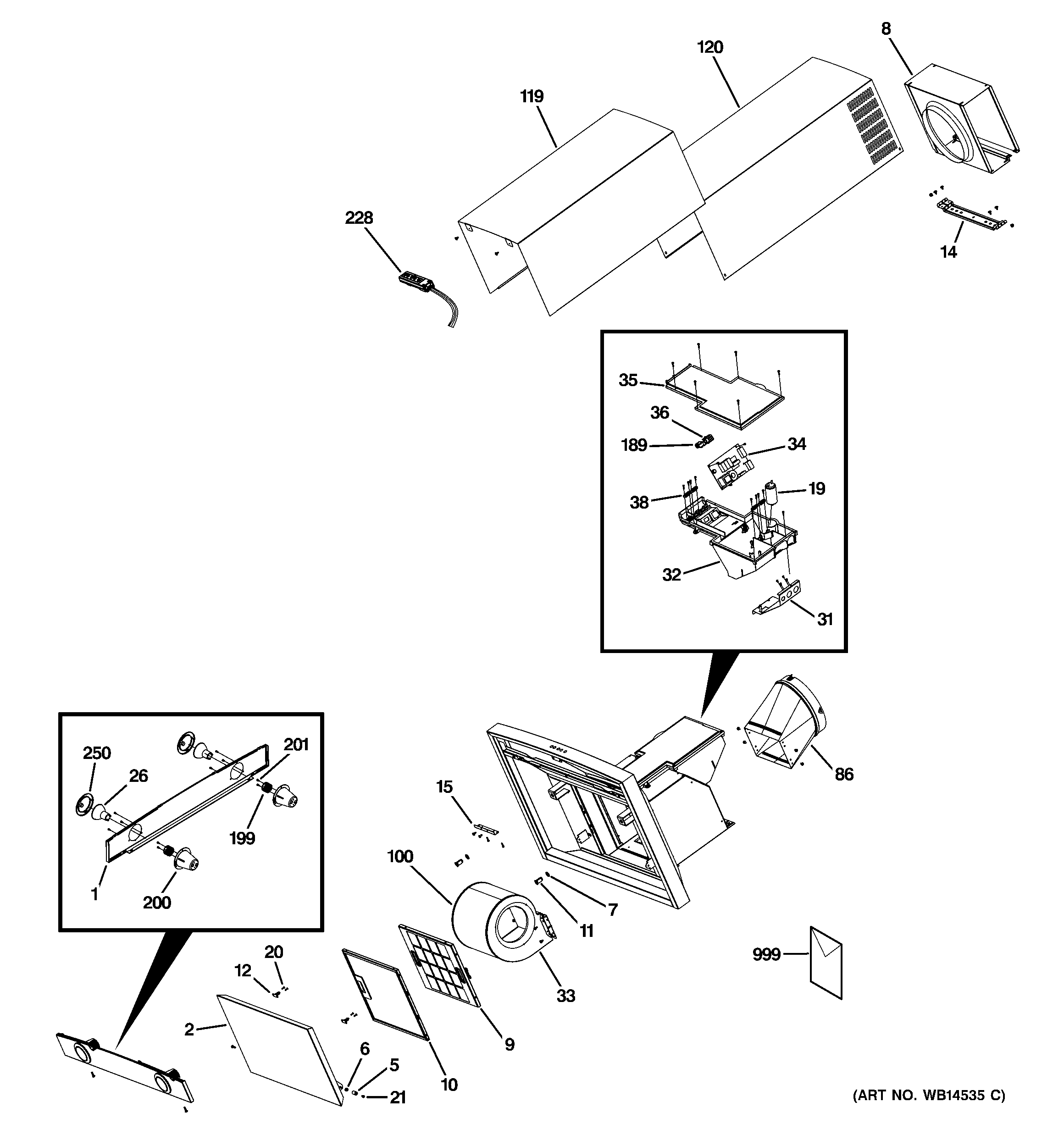

ZV830SM2SS RANGE HOOD

Products

PositionProduct
1GEN WB63X10062
2GEN WB02X11344
5GEN WB02X11346
6GEN WB01X10366
7WB01X10367 GE Oven Latch Receiver Nut
8WB02X11347 GE Hood Air Deflector
9WB02X11348 GE Charcoal Filter
10WB02X11350 GE Range Hood Grease Filter
11WB02X11351 GE Oven Latch Receiver
12WB02X11352 GE Range Hood Latch Stud
14WB02X11356 GE Range Hood Duct Bracket
15GEN WB02X11358
19WB27X10669 GE Oven Capacitor
20GEN WB01X10370
21WB01X10371 GE Screw
26WB08X10056 GE Oven Lamp
31GEN WB02X11353
32GEN WB02X11359
33GEN WB02X11357
34WB27X11122 GE Oven Main Control Board Kit
35JUNCTION BOX COVER
36WB18X10407 GE Harness Plug
38GEN WB02X11349
86WB02X11354 GE Oven Transition Damper
100WB26X10218 GE Oven Blower Motor Assembly
119WB38X10120 GE Lower Duct Cover
120WB38X10119 GE Upper Duct Cover
189WB24X10156 GE Oven Switch
199WB08X10055 GE Lamp Socket
200WB02X11355 GE Lamp Cover
201GEN WB01X10369
228WB27X11014 GE Oven Keypad Assembly
250WB01X10368 GE Bezel
999GEN 31-14722
999GEN 49-80512
999GEN 49-80513
