ZV850SB1SS RANGE HOOD

ZV850SB1SS RANGE HOOD

Written by

in

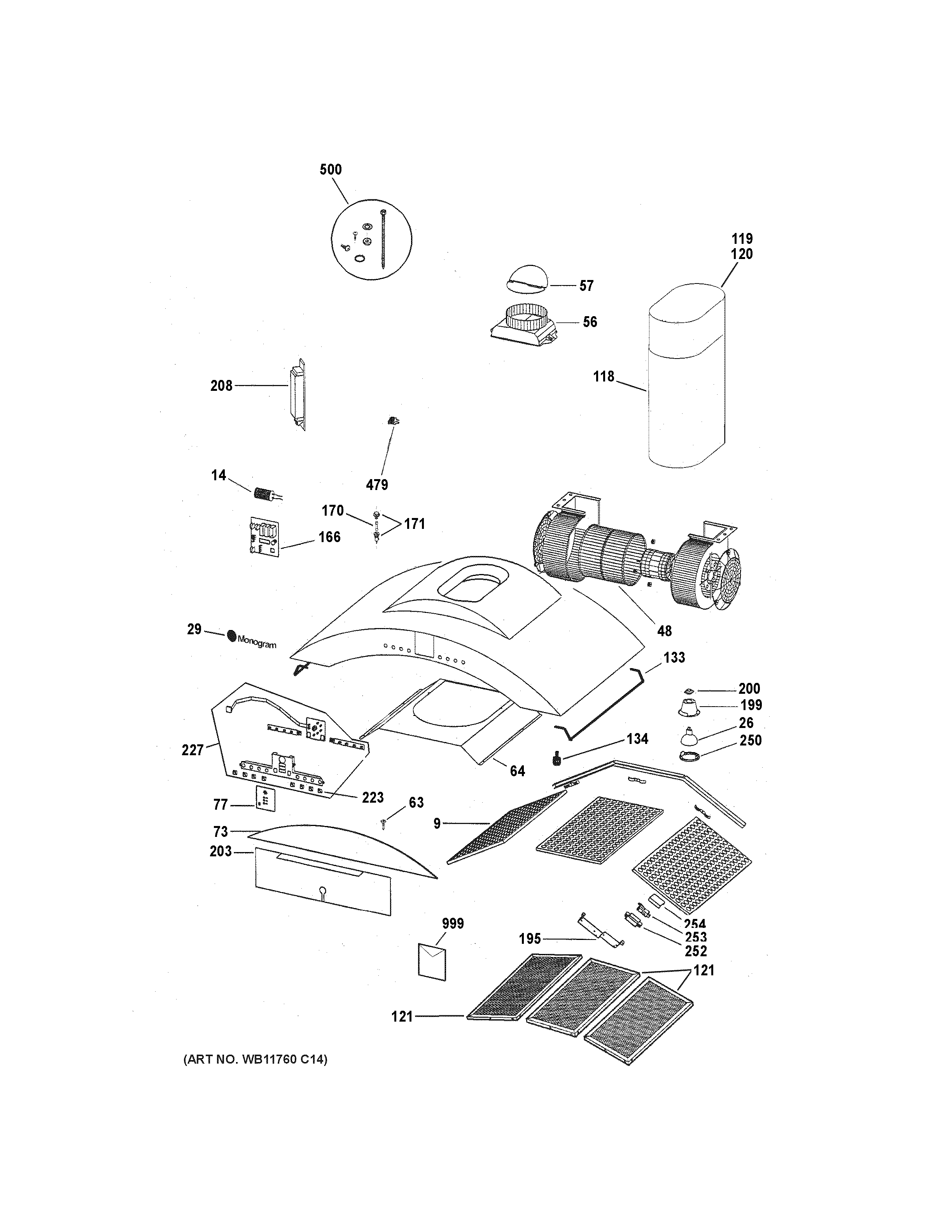

ZV850SB1SS RANGE HOOD

Products

PositionProduct
9WB02X11491 GE Replacement Grease Filter
14CONDENSER
26WB25X37025 GE Bulb Lamp
29WR04X24243 GE Refrigerator Badge Monogram Small No
48WB26X10158 GE Oven Blower Motor Assembly
57WB02X11328 GE Oven 6" Air Outlet Connection
63WB01X10266 GE Oven Visor Plastic Screw
64BUTTON BRACKET
73WB07X10007 GE Oven Visor Glass
77WB02X10642 GE Oven Plexiglas Display Cover
118BOTTOM DUCT 8 FT CEIL
118BOTTOM DUCT 9 FT CEIL
118BOTTOM DUCT 10 FT CEIL
119UPPER DUCT 1
119UPPER DUCT 9
119UPPER DUCT 7
120UPPER DUCT R
120UPPER DUCT R
120UPPER DUCT R
121WB02X10731 GE Charcoal Filter Set
133IMPLEMENT HOLDER
134WB01X10170 GE Oven Implement Holder Screw
166PRINTED CIRCUIT BOARD
170FUSE
171WB02X10647 GE Oven Fuse Holder
195BRACKET
199WB02X10400 GE Oven Ceramic Insulation Base
200DICHROIC LAMP PROTECTION
203WB07X10339 GE Blocking Bracket
208WB17X10002 GE Oven Transformer
223SWITCH BUTTON
227GEN WB27X10345
250WB01X10002 GE Oven Ring Nut
252WB07X10003 GE Oven Micro Switch Box
253WB24X10001 GE Oven Microswitch
254WB07X10004 GE Oven Microswitch Box Cover
479WB02X10402 GE Oven Triac
500INSTALLATION HARDWARE
999MINI MANUAL
99949-8775
999049-80396
99949-8970-2
