ZV950SD6SS RANGE HOOD

ZV950SD6SS RANGE HOOD

Written by

in

ZV950SD6SS RANGE HOOD

Products

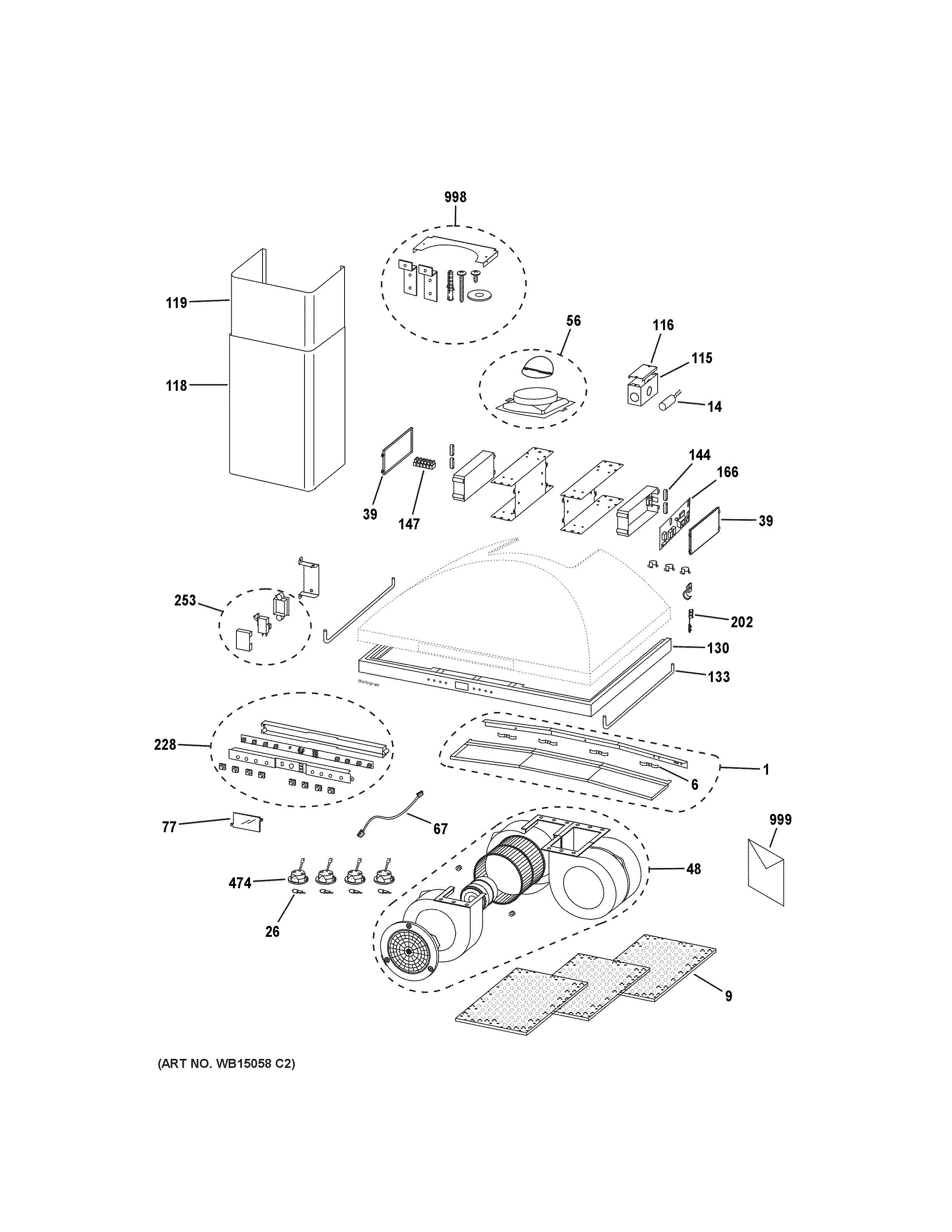

PositionProduct
1WB63X10063 GE Oven Frame
6SPRING
9WB02X11491 GE Replacement Grease Filter
14WB17X10034 GE Capacitor with 2 Wires
26WB25X10020 GE Oven Bulb
39COVER
48WB26X31755 GE Blower Assembly
56WB02X11327 GE Oven Air Outlet Connection 8"
67RIBBON CABLE WITH TOROID
77WB02X10801 GE Oven Plexiglas
115WB02X11490 GE Dishwasher Junction Box
116WB59X10006 GE Cover Oven
118WB38X10160 GE Vent Bottom Duct Cover
119WB38X10161 GE Upper Vent Duct Cover
130WB07X11236 GE Front Panel
133WB03X10148 GE Holder Assembly
144STRAIN RELIEF
147JUNCTION CLAMP
166WB27X11076 GE Oven Control Board
202WIRE GUIDE
228WB03X10334 GE Oven Switch Box Assembly
253WB24X10192 GE Microswitch Assembly
474HALOGEN LAMP ASSY
998WB02X11525 GE Installation Hardware for
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL
999MOUNTING TEMPLATE
