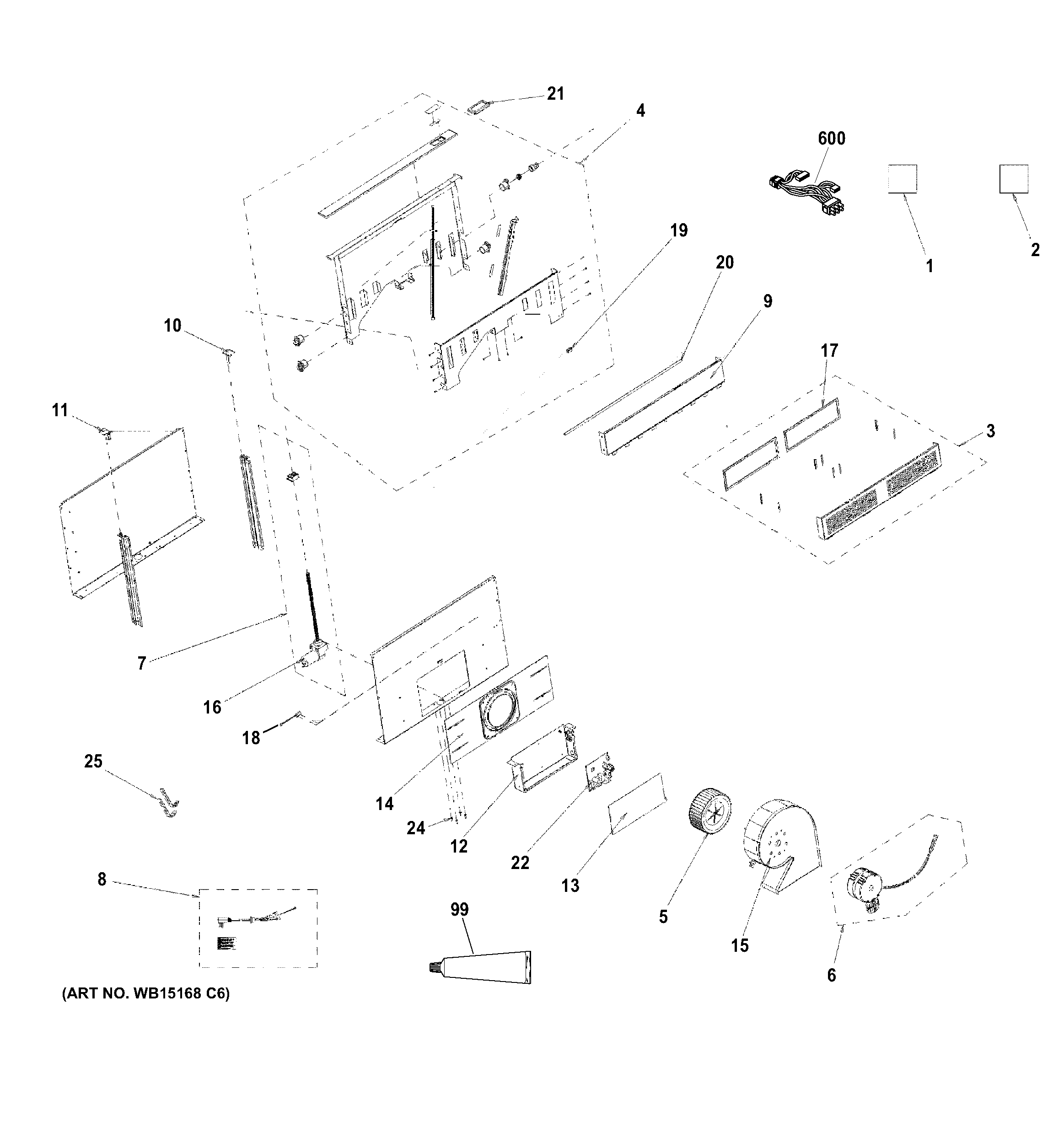

ZVB30ST4SS RANGE HOOD

Products

PositionProduct
1GEN 31-10728
2GEN 49-80573
3GEN WB02X11540
4GEN WB63X10089
5GEN WB26X10130
6GEN WB26X10222
7GEN WB63X10075
8WB18X10508 GE Oven Power Cord Assembly
9WB56X10983 GE Snorkel Panel
10WB06X10913 GE Oven Trim Stop Bracket Right Hand
11GEN WB06X10914
12GEN WB06X10912
13WB06X10915 GE Hood Control Box Cover
14GEN WB07X11377
15GEN WB26X10129
16WB26X21615 GE Oven Gear Motor and Screw
17FILTER
18GEN WB24X10199
19GEN WB06X10916
20GEN WB06X10911
21GEN WB24X10201
22GEN WB27X21614
24WB01X10269 GE Oven Screw 8-18 x 5/8 IHW
25WB02X10577 GE Oven Support Bracket Assembly
99WB49X10244 GE Oven Lubricant Snorkel Kit
600WB18X21197 GE Oven Wire Harness with Ferrite
