ZVC36L2SS RANGE HOOD

ZVC36L2SS RANGE HOOD

Written by

in

ZVC36L2SS RANGE HOOD

Products

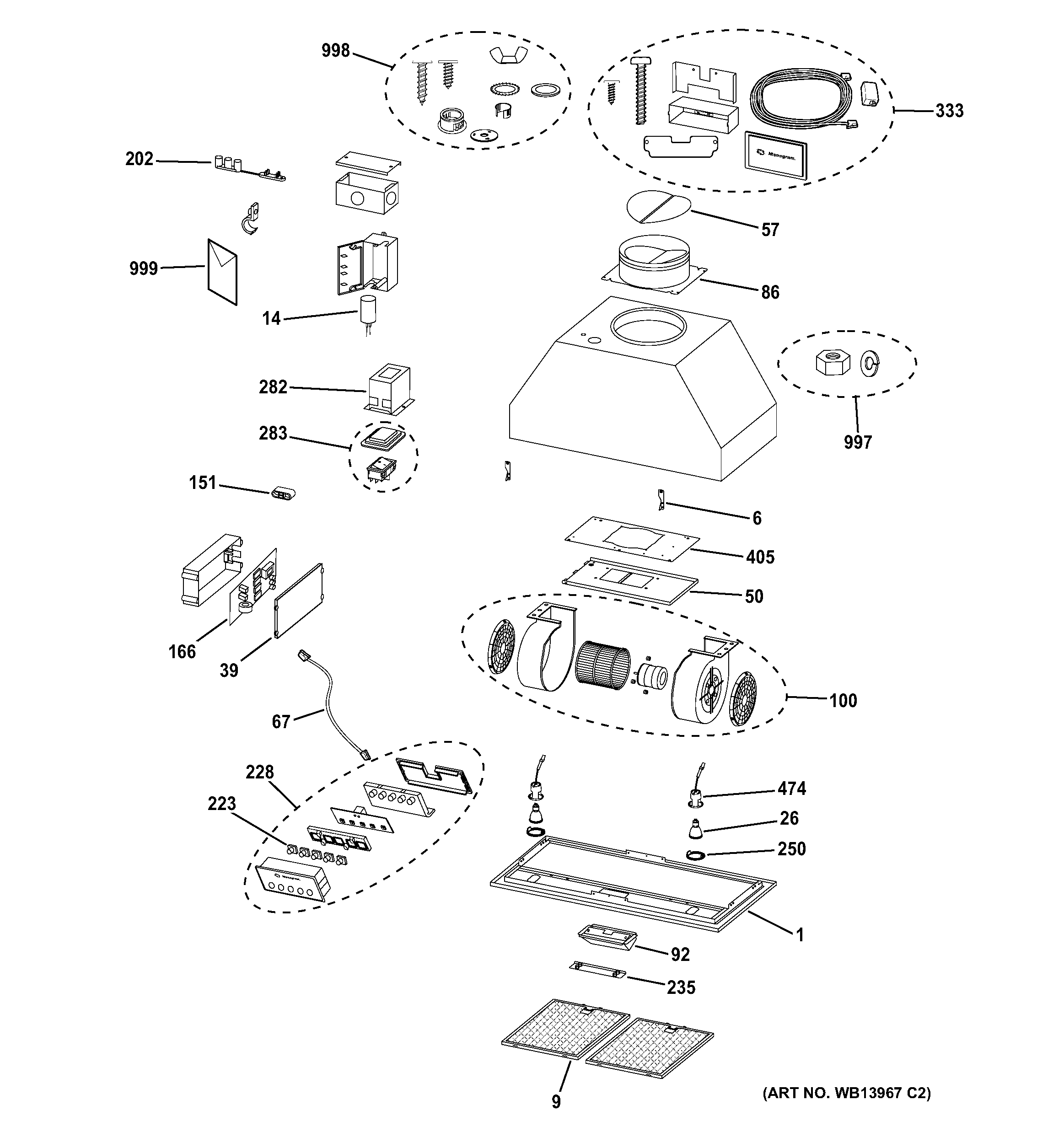

PositionProduct
1WB63X10069 GE Frame
6WB09X10030 GE Spring
9WB02X11304 GE Grease Filter
14WB17X10032 GE Oven START Capacitor with Wires
26WB08X10052 GE Oven Light Bulb
39COVER
50WB02X11314 GE Range Hood Blower Bracket
57WB02X11308 GE Hood Non-Return Flap
67WB18X10380 GE Oven Wiring Harness
86WB07X11057 GE Flange Outlet
92SWITCH BOARD BOX SUPPORT
100WB26X31760 GE Oven Blower Assembly
151WB02X11298 GE Range Hood Electrical Box
166GEN WB02X11300
202WIRE GUIDE
223WB03X10256 GE Oven Button Switch
228WB03X10347 GE Oven Switch Box Assembly
235SWITCHES SUPPORT
250WB01X10349 GE Ring Nut
282WB24X10162 GE Main Switch Support
283WB23X10017 GE Oven Main Switch
333REMOTE MNTG HRDWARE KIT
405GEN WB02X11305
474WB08X10053 GE Lamp Socket and Wire Assembly
997WB02X11302 GE Hood Fitting Set
998WB02X11301 GE Fitting Set
999GEN 49-80415
999GEN 49-80425
999GEN 49-80442
999GEN WB02X11547
999GEN WB53X10019
999GEN WB53X10018
