ZVC48L5SS RANGE HOOD

Products

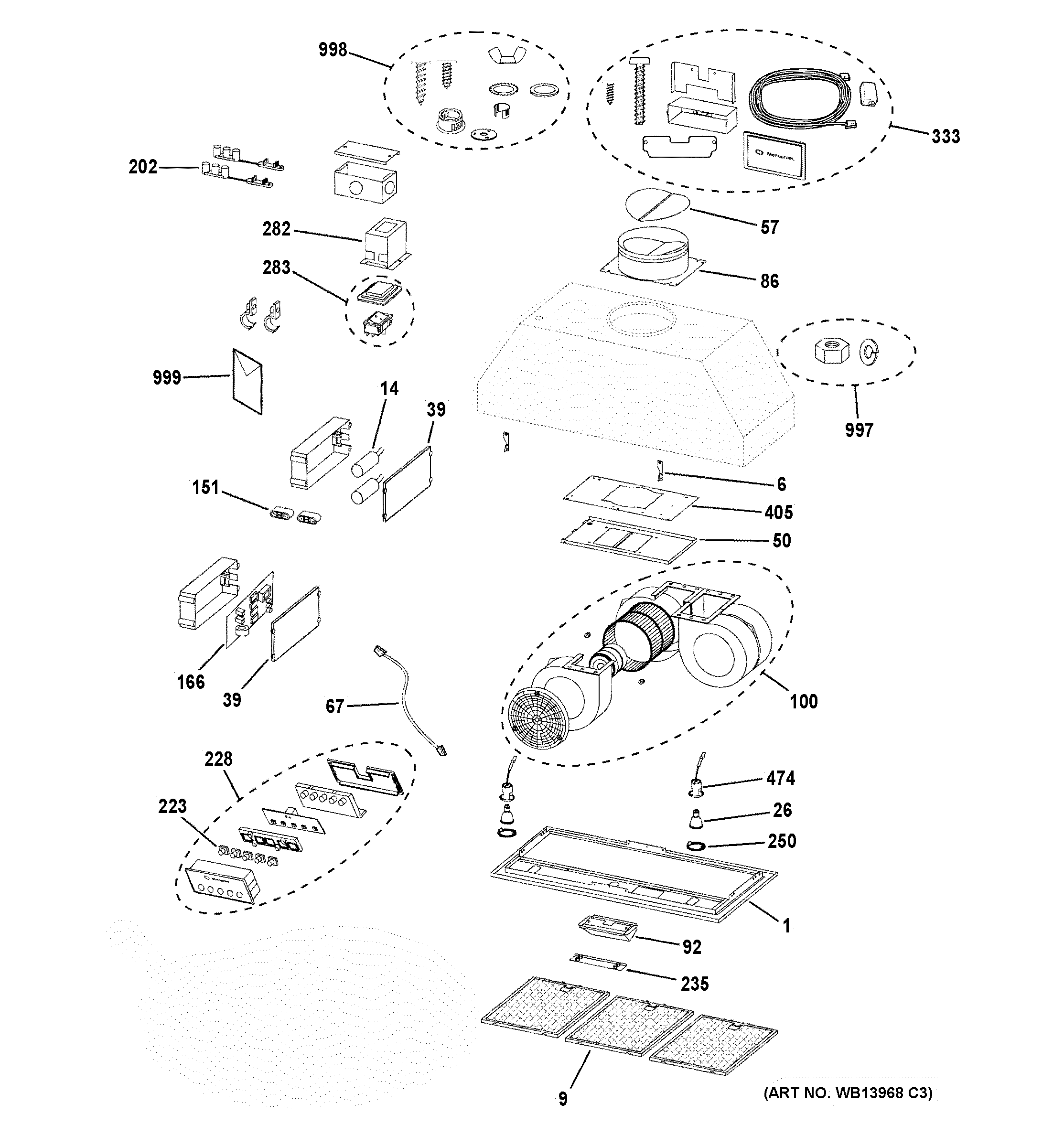

Position	Product
1	WB63X10070 GE Frame
6	WB09X10030 GE Spring
9	WB02X11304 GE Grease Filter
14	WB17X10032 GE Oven START Capacitor with Wires
26	WB08X10052 GE Oven Light Bulb
39	COVER
50	GEN WB02X11315
57	WB02X11308 GE Hood Non-Return Flap
67	WB18X10381 GE Oven Wiring
86	WB07X11057 GE Flange Outlet
92	SWITCH BOARD BOX SUPPORT
100	WB26X31759 GE Oven Blower Assembly
151	WB02X11298 GE Range Hood Electrical Box
166	MAIN BOARD
202	WIRE GUIDE
223	WB03X10256 GE Oven Button Switch
228	WB03X10347 GE Oven Switch Box Assembly
235	SWITCHES SUPPORT
250	WB01X10349 GE Ring Nut
282	WB24X10162 GE Main Switch Support
283	WB23X10017 GE Oven Main Switch
333	REMOTE MNTG HRDWARE KIT
405	GEN WB02X11305
474	WB08X10053 GE Lamp Socket and Wire Assembly
997	WB02X11302 GE Hood Fitting Set
998	WB02X11301 GE Fitting Set
999	USE AND CARE
999	GEN WB53X10020
999	INSTALLATION INSTRUCTION
999	MINI MANUAL
