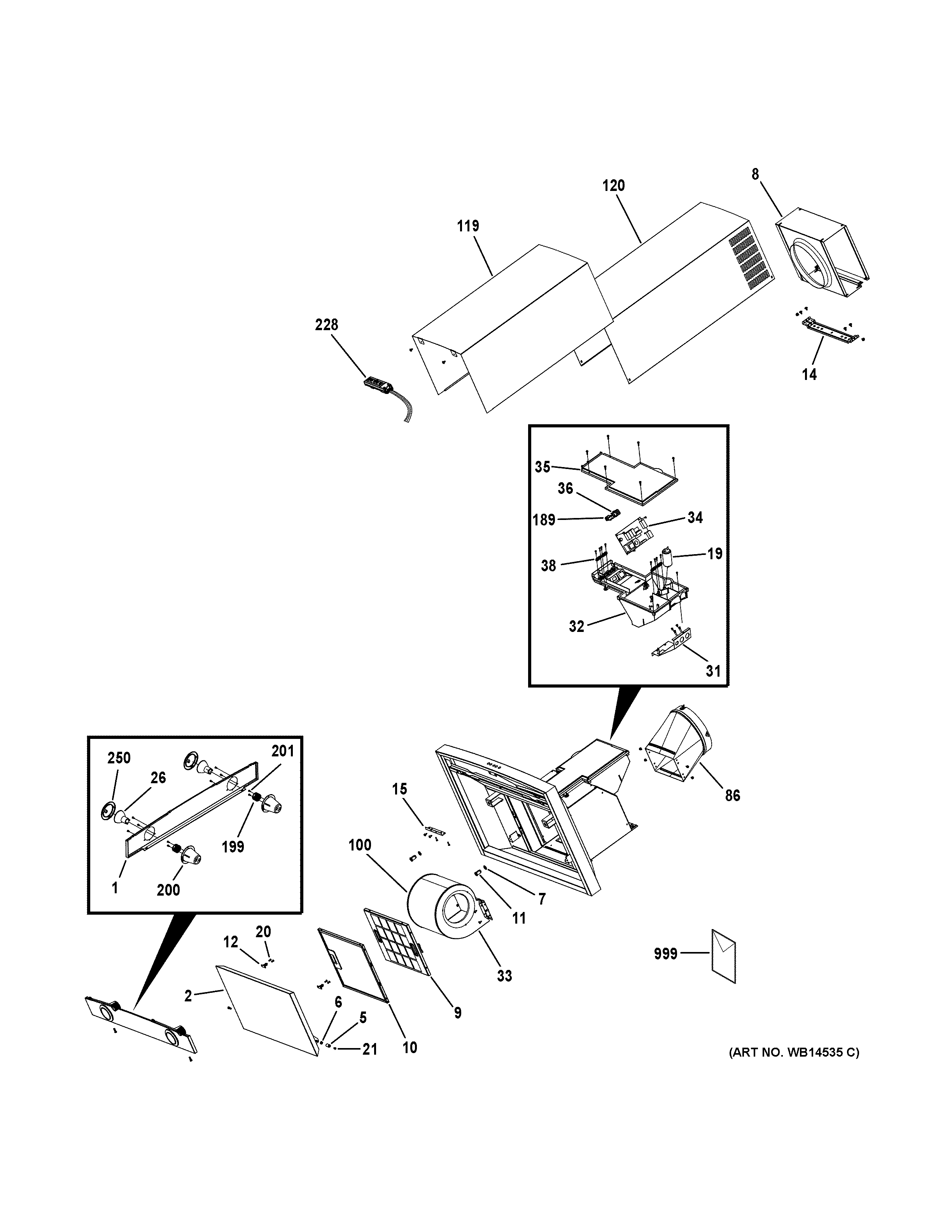

ZVW8301SW1SS RANGE HOOD

Products

Position	Product
1	GEN WB63X10062
2	GEN WB02X11344
5	GEN WB02X11346
6	GEN WB01X10366
7	WB01X10367 GE Oven Latch Receiver Nut
8	WB02X11347 GE Hood Air Deflector
9	WB02X11348 GE Charcoal Filter
10	WB02X11350 GE Range Hood Grease Filter
11	WB02X11351 GE Oven Latch Receiver
12	WB02X11352 GE Range Hood Latch Stud
14	WB02X11356 GE Range Hood Duct Bracket
15	GEN WB02X11358
19	CAPACITOR
20	GEN WB01X10370
21	WB01X10371 GE Screw
26	WB08X10056 GE Oven Lamp
31	GEN WB02X11353
32	GEN WB02X11359
33	GEN WB02X11357
34	WB27X11122 GE Oven Main Control Board Kit
35	JUNCTION BOX COVER
36	WB18X10407 GE Harness Plug
38	GEN WB02X11349
86	WB02X11354 GE Oven Transition Damper
100	BLOWER MOTOR CN077A
119	WB38X10120 GE Lower Duct Cover
120	WB38X10119 GE Upper Duct Cover
189	WB24X10156 GE Oven Switch
199	WB08X10055 GE Lamp Socket
200	WB02X11355 GE Lamp Cover
201	GEN WB01X10369
228	WB27X11014 GE Oven Keypad Assembly
250	WB01X10368 GE Bezel
999	USE & CARE
999	INSTRUCTION INSTALL
999	MINI MANUAL
