ZWE23NSTCSS CASE PARTS

ZWE23NSTCSS CASE PARTS

Written by

in

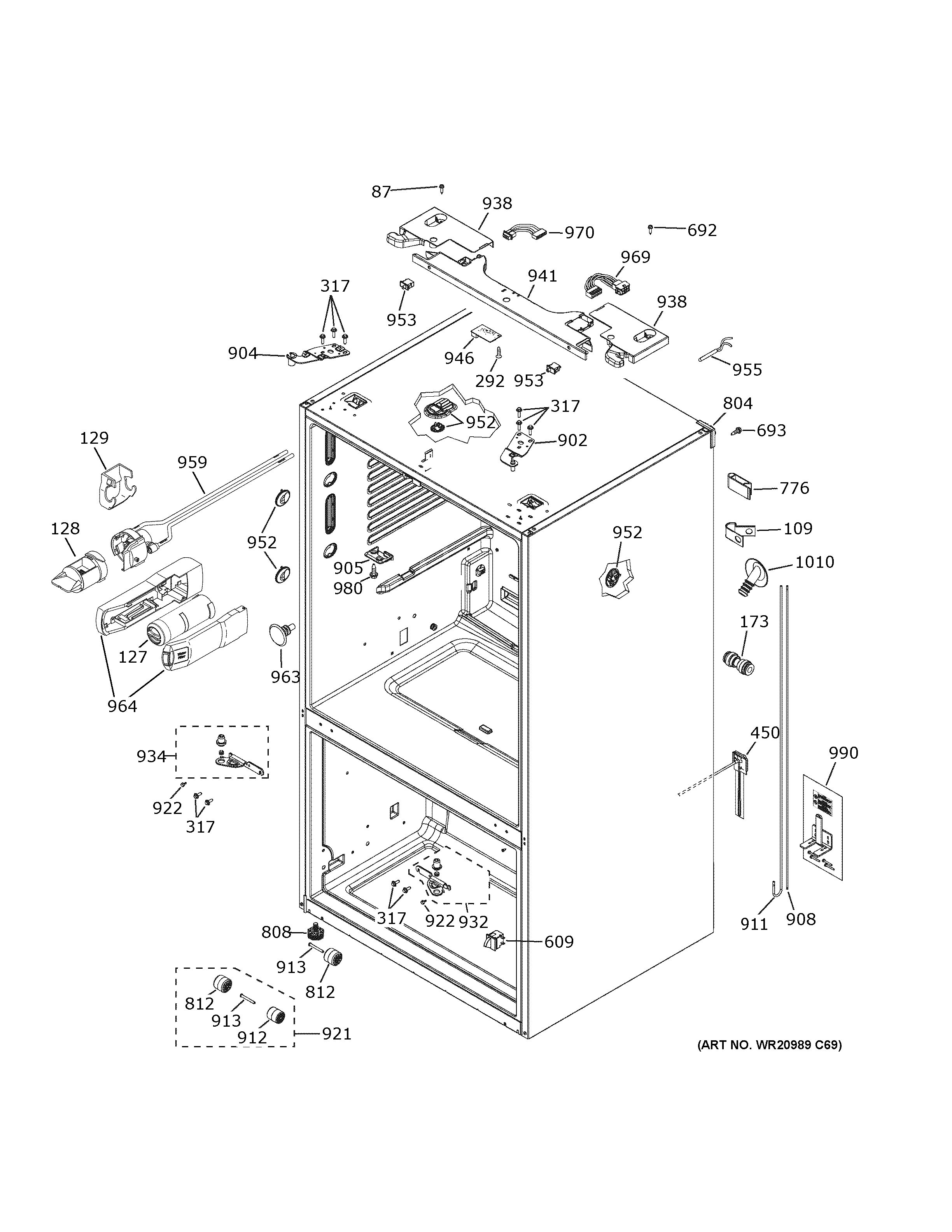

ZWE23NSTCSS CASE PARTS

Products

PositionProduct
87WR02X36891 GE Screw ST3.9-1.4 Ab IHXWT20
109WR01X11064 GE Refrigerator Plastic Clip
127XWFE GE Refrigerator Water Filter
128WR17X33825 GE Bypass Filter Plug
129WR17X31815 GE Refrigerator Filter Manifold Bracket
173WR02X13738 GE Refrigerator Coupler Straight 1/4
292ETHERNET BOARD SCREW
317WR02X36714 GE Refrigerator Screw M6-1.0 T IHXW 20 S
450WR02X20621 GE Refrigerator Ice Maker Fill Tube Heater Assembly
609WR23X37285 GE Light Switch
692WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
693WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
776WR02X10522 GE Refrigerator Clamp Tube
804WR02X13759 GE Refrigerator Cap Case Corner Assembly DGY
808WR01X11046 GE Refrigerator Screw Levelling Assembly
812WR02X13616 GE Front Wheel Overmold Assembly
902WR13X25910 GE Refrigerator Hinge Top Pin Assembly Right Hand
904WR13X25911 GE Refrigerator Top Left Hand Hinge Assembly
905WR01X31733 GE Refrigerator Mullion Striker
908WR02X32130 GE Refrigerator PEX Water Line
911WR02X32126 GE Refrigerator PEX Water Line
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
921WR49X10268 GE Refrigerator Front/Rear Wheel & Axle
922WR02X36985 GE Screw ST4.8-1.6 Ab PNT25 19 S
932WR13X32036 GE Refrigerator Center Hinge Right
934WR13X32039 GE Refrigerator Left Center Hinge
938WR17X20164 GE Refrigerator Hinge Endcap Assembly DGY (2pk)
941WR17X13226 GE Refrigerator Middle Cover Assembly Dark Gray
946WR55X34647 GE Refrigerator Humidity Board
952WR55X11132 GE Refrigerator LED Light Cover Assembly
953WR23X29161 GE Refrigerator Door Switch
955WR55X10025 GE Refrigerator Temperature Sensor
959FILTER MANIFOLD
963PLUG CONDUIT WATER TANK
964COVER WATER FILTER ASM
969WR23X29160 GE Refrigerator AC Door Switch Harness
970WR23X10777 GE Refrigerator Door Case Harness
980WR01X11060 GE Scr 8-18 Ab Hex 9/16S
990WR02X13770 GE Refrigerator Kit Anti Tip Assembly
1010WR02X13760 GE Refrigerator Liner Grommet
