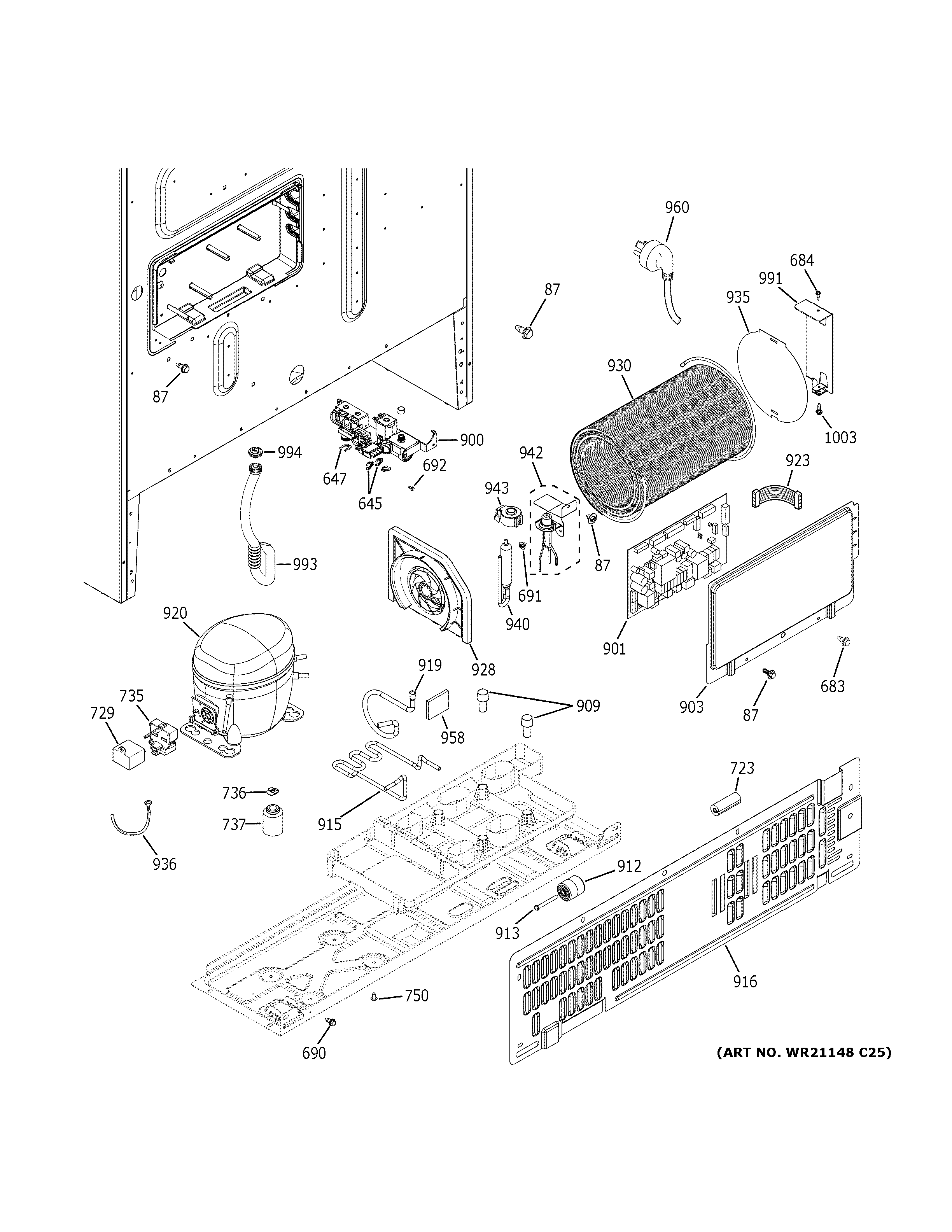

ZWE23PSHRSS MACHINE COMPARTMENT

ZWE23PSHRSS MACHINE COMPARTMENT

Written by

in

ZWE23PSHRSS MACHINE COMPARTMENT

Products

PositionProduct
87WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
645WR01X11040 GE Refrigerator Quick Clip Connect 5/16
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
683WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
684WR01X10635 GE Scr 8-32 Ca IHVW .625 S
690WZ5X158D GE Screw Package of 12
691SCR 12-24TT BHT20 .700 S
692SCREW
723WR14X10055 GE Refrigerator Slit Grommet Tubing
729WR55X24064 GE Refrigerator Run Capacitor
735COMBO RELAY
736WR02X28299 GE Refrigerator Compressor Mounting Clip
737WR02X13719 GE Refrigerator Compressor Grommet
750WR1X1786 GE Refrigerator Screw
900VALVE DOUBLE IW ASM
901BOARD ASM MAIN REFLASHED
903WR02X25126 GE Refrigerator Mainboard Cover
909WR02X13668 GE Condenser Support
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
915WR84X34173 GE Refrigerator Compressor Discharge Jumper
916WR82X37208 GE Refrigerator Rear Access Cover
919WR84X27946 GE Refrigerator Compressor Suction Jumper TU
920WR87X33165 GE Refrigerator Compressor
923PERSONALITY HARNESS
928WR60X23363 GE Refrigerator Fan Gasket Assembly
930WR84X10115 GE Refrigerator Condenser Assembly Formed
935WR17X13045 GE Refrigerator Baffle Condenser Air
936HARNESS GROUND
940DRYER FILTER
943VALVE BODY ASM
958WR02X13724 GE Refrigerator Sound Deadening Mastic
960WR23X24389 GE Refrigerator Power Cord Harness
991WR02X13622 GE Refrigerator Condenser Bracket
993WR02X28514 GE Refrigerator Drain Tube
994WR01X28515 GE Refrigerator Drain Vacuum BR
1003WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
