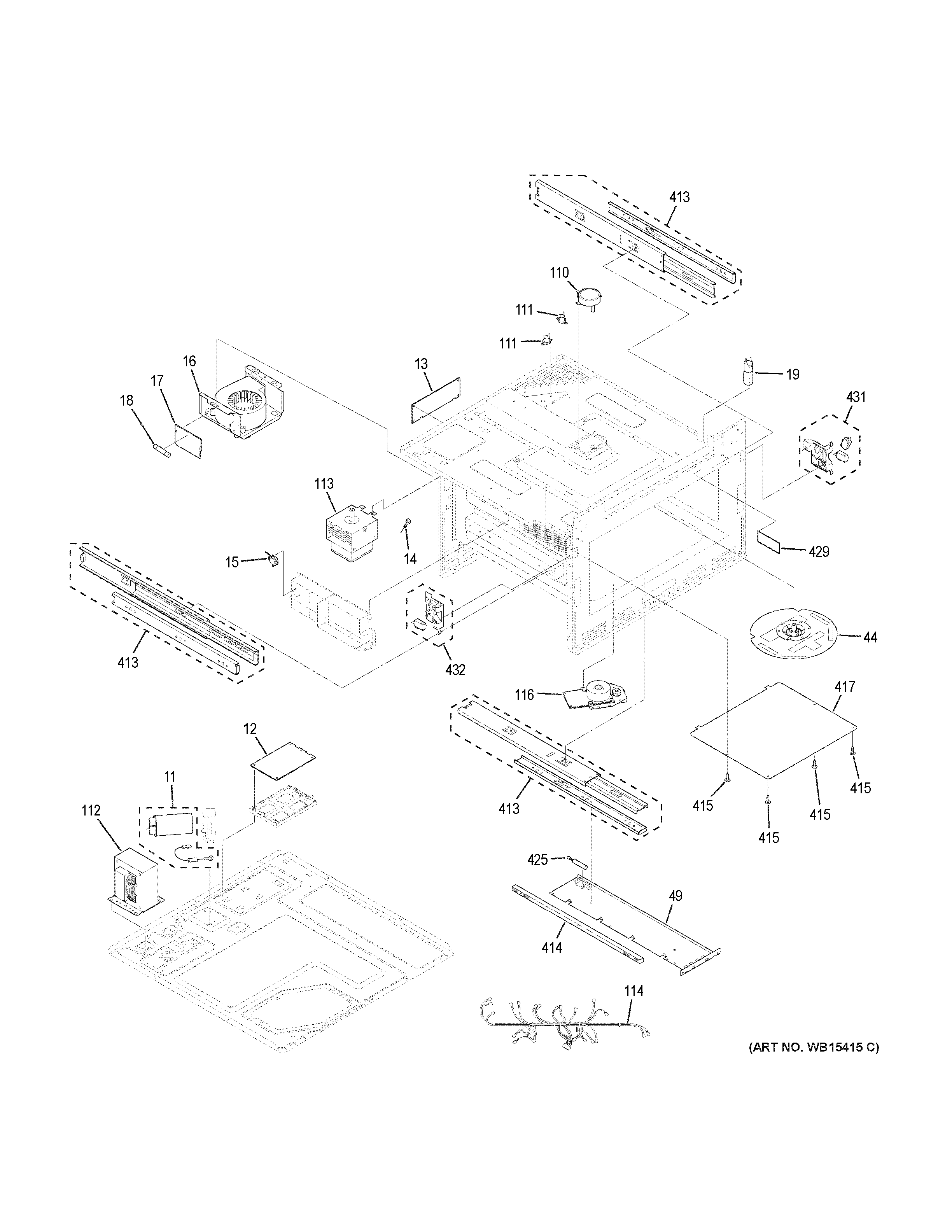

ZWL1126SJ5SS OVEN CAVITY PARTS

ZWL1126SJ5SS OVEN CAVITY PARTS

Written by

in

ZWL1126SJ5SS OVEN CAVITY PARTS

Products

PositionProduct
11WB27X25193 GE Oven Capacitor
12WB27X32412 GE Gas Relay Board
13WB27X27465 GE Power Supply Board
14POWER CORD
15WB24X24663 GE Humidity Sensor Assembly
16WB26X24689 GE Cooling Fan
17NOISE FILTER UNIT
18MONITOR SWITCH
19WB25X24661 GE Oven Lamp with Socket
44WB02X24655 GE Stirrer Assembly
49DOOR SUPPORT ANGLE B
110WB26X24653 GE Stirrer Motor
111WB24X25189 GE Oven Thermal Cut-Out
112WB26X24652 GE Oven Transformer
113WB27X32414 GE Magnetron
114DRAWER HARNESS
116WB26X35885 GE Auto Drawer Gear Assembly
413SLIDE RAIL
414RACK GEAR
415CLIP
417WB34X24654 GE Stirrer Cover
425OIL DAMPER
429LAMP OVERLAY
431WB10X25192 GE Right Latch Hook Assembly Kit
432WB10X25191 GE Dishwasher Left Latch Hook Assembly
