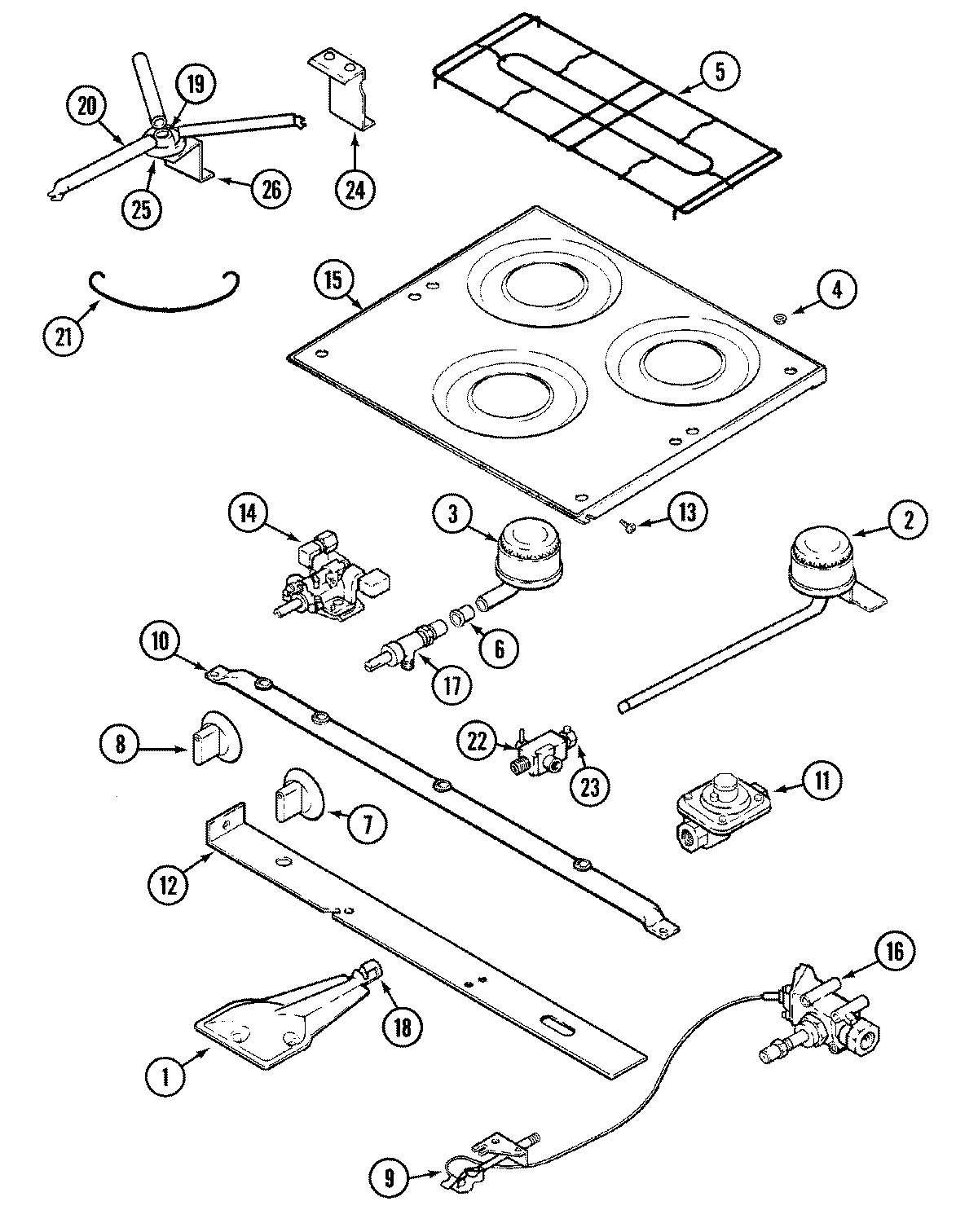

16RA-3BT 02 – MAIN TOP & BURNER ASSEMBLY
Written by
in
16RA-3BT 02 – MAIN TOP & BURNER ASSEMBLY
Products
Position
Product
1
MAY 3403W025-45
2
MAY 7505P195-60
2
MAY 7505P196-60
3
MAY 7505P144-60
4
MAY Y8007P02060
5
MAY 7518P012-60
6
MAY 7214P015-60
7
MAY 7733P072-60
8
MAY 7731P074-60
9
MAY 7505P202-60
9
MAY 1555261K
10
MAY 7513P097-60
11
MAY 7507P047-60
11
MAY 7510P043-60
11
MAY 7507P083-60
12
MAY 74001834
13
MAY 8003P008-60
14
MAY 7515P031-60
14
MAY 1555280K
14
MAY 3414F077-44
14
MAY 1555222
14
MAY 3414F079-44
14
MAY 7507P049-60
15
MAY 74001503
16
MAY 1555279
16
MAY 7501P121-60
17
MAY 7502P180-60
17
MAY 7502P181-60
18
MAY 3411F003-34
19
MAY 7505P147-60
19
MAY 8030P002-60
20
MAY 7506P068-60
20
MAY 7506P067-60
21
MAY 7112P068-60
22
MAY 7506P096-60
23
MAY 7507P046-60
24
MAY 3604F127-44
25
MAY 7506P065-60
26
MAY 3807F462-45
27
MAY 8112P107-60
←
