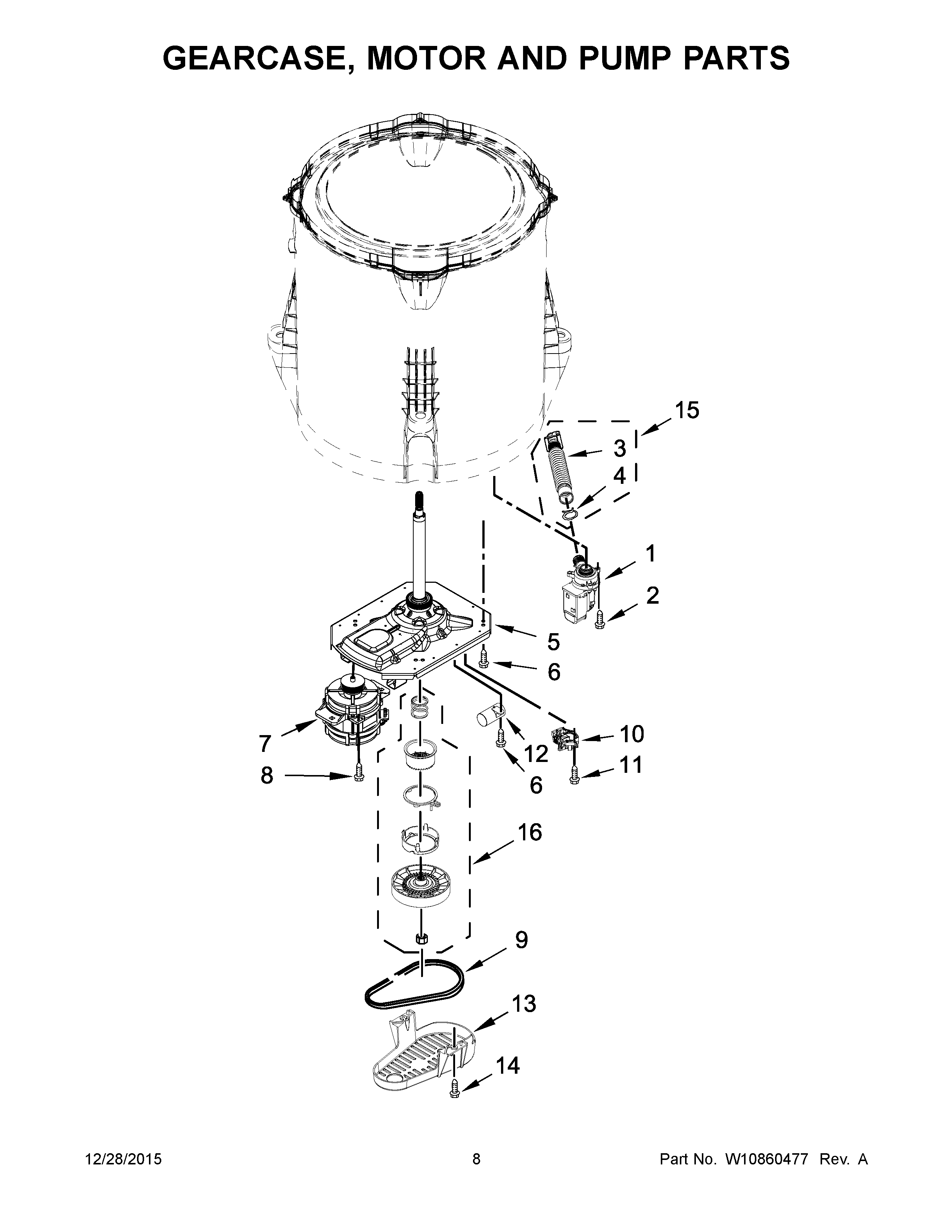

2DWTW4705EW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	WPW10297342 Whirlpool Water Pump
2	WPW10004910 Whirlpool Screw
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	W10416658 Whirlpool Drive Motor
8	W11685857 Whirlpool Screw Assembly
9	WPW10006388 Whirlpool Belt
10	ACTUATOR
11	W11596033 Whirlpool Microwave Screw
12	W11227944 Whirlpool Capacitor
13	WPW10427633 Whirlpool Belt Shield
14	W11573574 Whirlpool Screw
15	W10899966 Whirlpool Hose Assembly
16	W10759993 Whirlpool Cam
