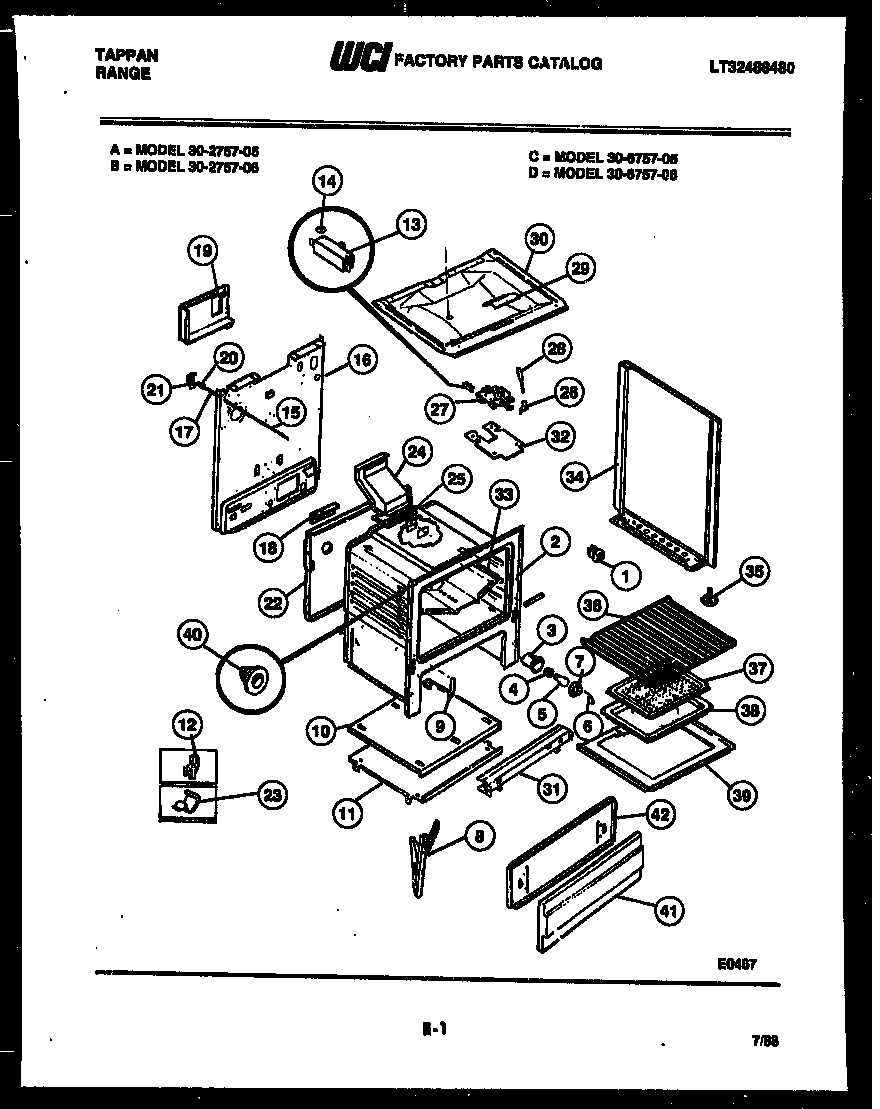

30-2757-66-05 06 – BODY PARTS

Products

PositionProduct
*16592316282700 Frigidaire Oven Screw
*16592ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8CHANL-DR HNG (2)
9WCI 3131570
10WCI 3131312
11WCI 3131313
11AWCI 665T437F01
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15A5304534000 Frigidaire Cord
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131316
23CLIP, WIRE
24WCI 3131931
25BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
25ASHIELD-LATCH (NON-ILLUSTRATED)
25316542102 Frigidaire Flue Gasket
26WCI 358T158S02
27WCI 368T027P01
28WCI 3131357
29WCI 3131101
30WCI 095T030F02-86
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3131315
34PNL. B/S (RH WEAT)
34PNL. B/S (LH WEAT)
35WCI 636M004P01
36316067902 Frigidaire Oven Rack
37WCI 3131356
38PAN, BROILER
39WCI 058T036F02-86
39A316064600 Frigidaire Oven Support
39B3131903 Frigidaire Door/Drawer Bumper
40BUTTON-REMOTE SW
40AFSTNR-POWER CORD (NON-ILLUSTRATED)
40BINSUL OVEN BACK (NON-ILLUSTRATED)
40C08067973 Frigidaire 0 Insulation
40EWCI 655T434F01
40DINSULATION, OVEN TOP
41PNL-DRAWER-WHEAT
42SHIELD-PNL
