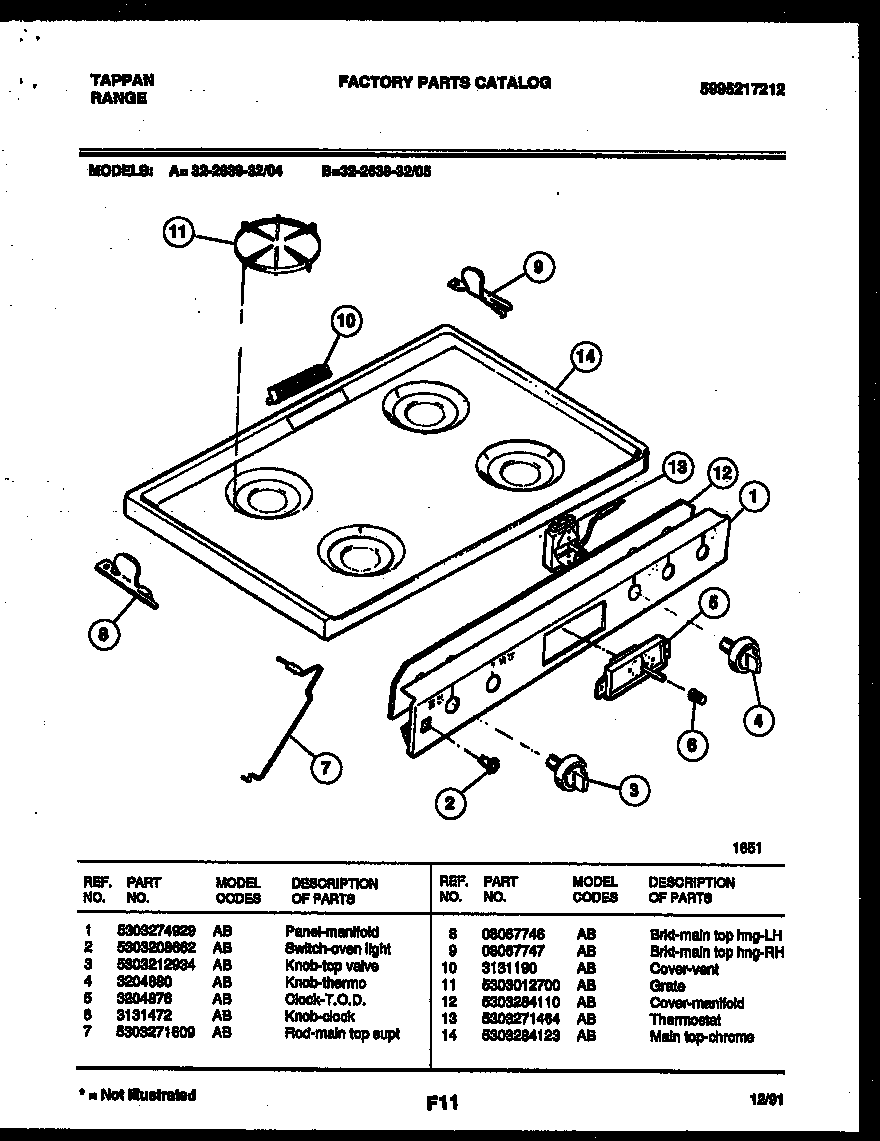

32-2639-00-05 03 – COOKTOP PARTS

Products

PositionProduct
1WCI 5303274929
25308015487 Frigidaire Switch-Oven Light
3KNOB – TOP VALVE (4)
4WCI 3204880
5CLOCK
6KNOB-CLOCK
7ROD-MAIN SUPPORT (2)
8BRACKET-HINGE,MAIN TOP LH
9BRACKET-HINGE,MAIN TOP RH
10WCI 3131190
11316055800 Frigidaire Oven Grate
12WCI 5303284110
13316032411 Frigidaire Stove Temperature Control Thermostat
14WCI 5303284123
