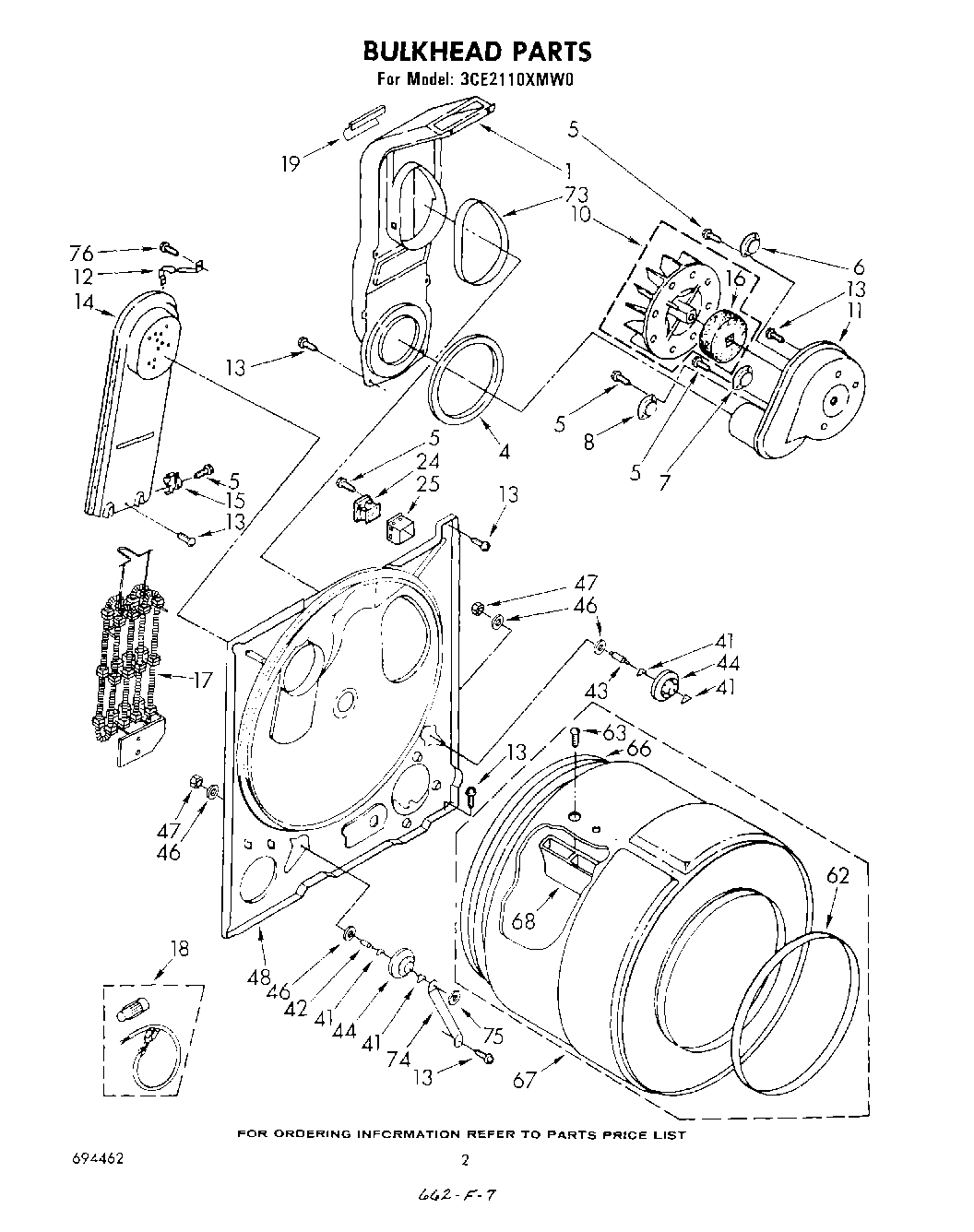

3CE2110XMW0 02 – BULKHEAD, LITERATURE AND OPTIONAL

3CE2110XMW0 02 – BULKHEAD, LITERATURE AND OPTIONAL

Written by

in

3CE2110XMW0 02 – BULKHEAD, LITERATURE AND OPTIONAL

Products

PositionProduct
799344 Whirlpool Refrigerator Paint
1279505 Whirlpool Chute
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6(Alt.)
6Thermostat, 180~F (82~C)
7WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower (Export)
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279054 Whirlpool Dryer High Limit Thermostat L290 3W
16Seal, Blower
17Element, Heater (Use 279139 Jumper Wire For Heater Element Harness Terminal Replacement)
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
24Relay, 50 Hz.
25Shield, Relay
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
76Instructions, Multi-Venting
76Instructions, Installation
76350938 Whirlpool Spray Gun
7672017 Whirlpool Appliance Touch-Up Paint White
76Leveler (Thinner)
76350930 Whirlpool White Spray Paint
76WPL 799351
76List, Service Parts
