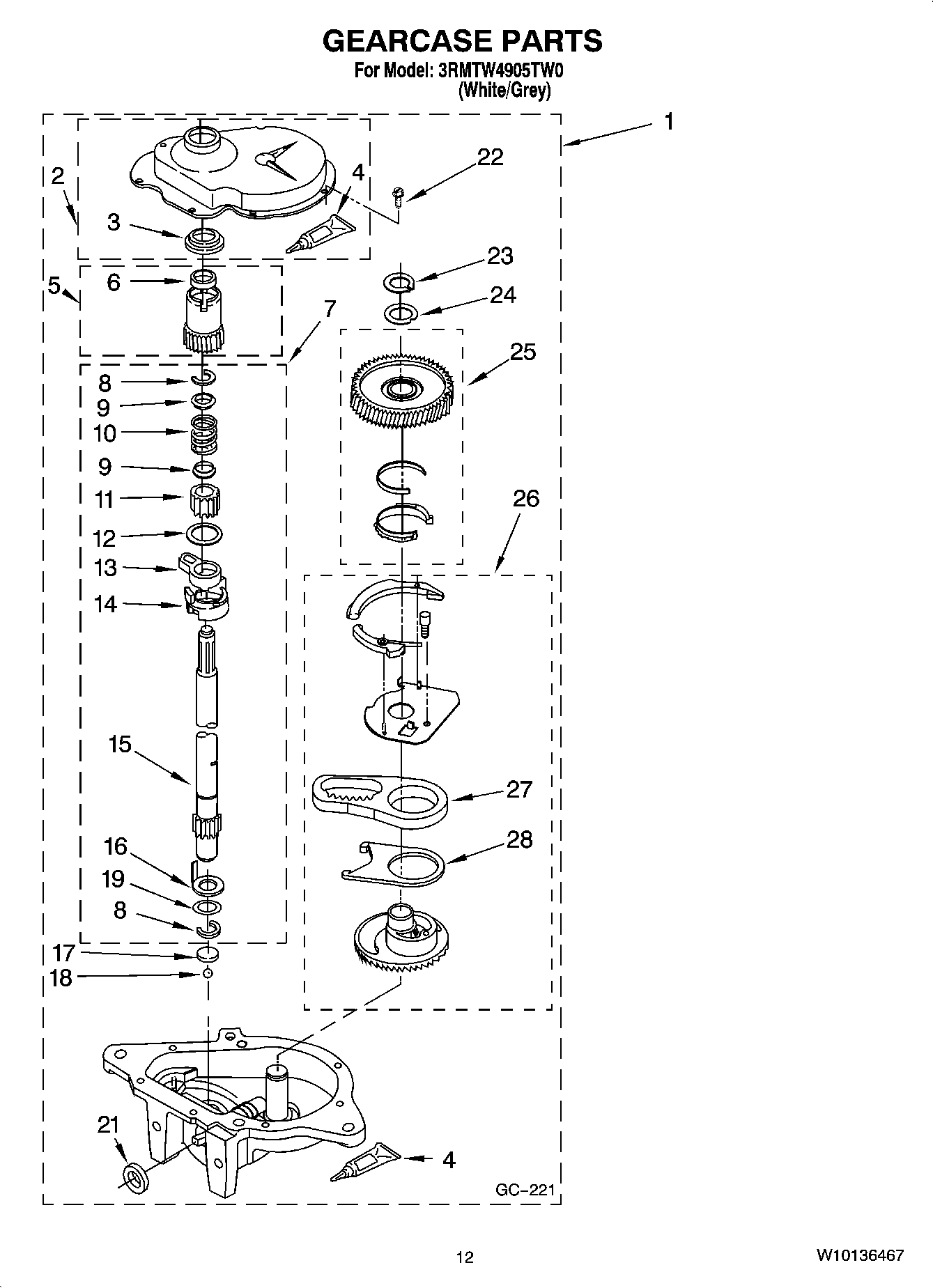

3RMTW4905TW0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 285208
NI	WATER SYSTEM PARTS, DRAIN PROTECTOR
NI	MAY 280129
NI	SEALER, GASKET (.20 FL. OZ.) (6ML)
NI	MAY 280130
NI	MAY 280131
NI	MAY 350572
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY W10116916
2	MAY 285202
3	MAY 3349985
5	Pinion, Spin (Includes Illus. 25)
6	Seal, Spin Pinion
7	SHAFT, AGITATOR COMPLETE
8	MAY 90369
9	Retainer, Spring (2)
10	MAY 62676
11	GEAR, AGITATE
12	MAY W10080940
13	MAY 62580
14	CAM, AGITATE
15	MAY 389231
16	MAY 62618
17	Bearing, Thrust (Includes 18)
18	Ball, Bearing (Includes 17)
19	MAY W10080950
21	MAY 285352
22	Screw, Ground
23	MAY 3946619
24	MAY 285766
25	MAY 63400
26	MAY 3948434
27	MAY 8546456
28	MAY 62621
