3WSC20N4XB00 06 – FREEZER DOOR PARTS

3WSC20N4XB00 06 – FREEZER DOOR PARTS

Written by

in

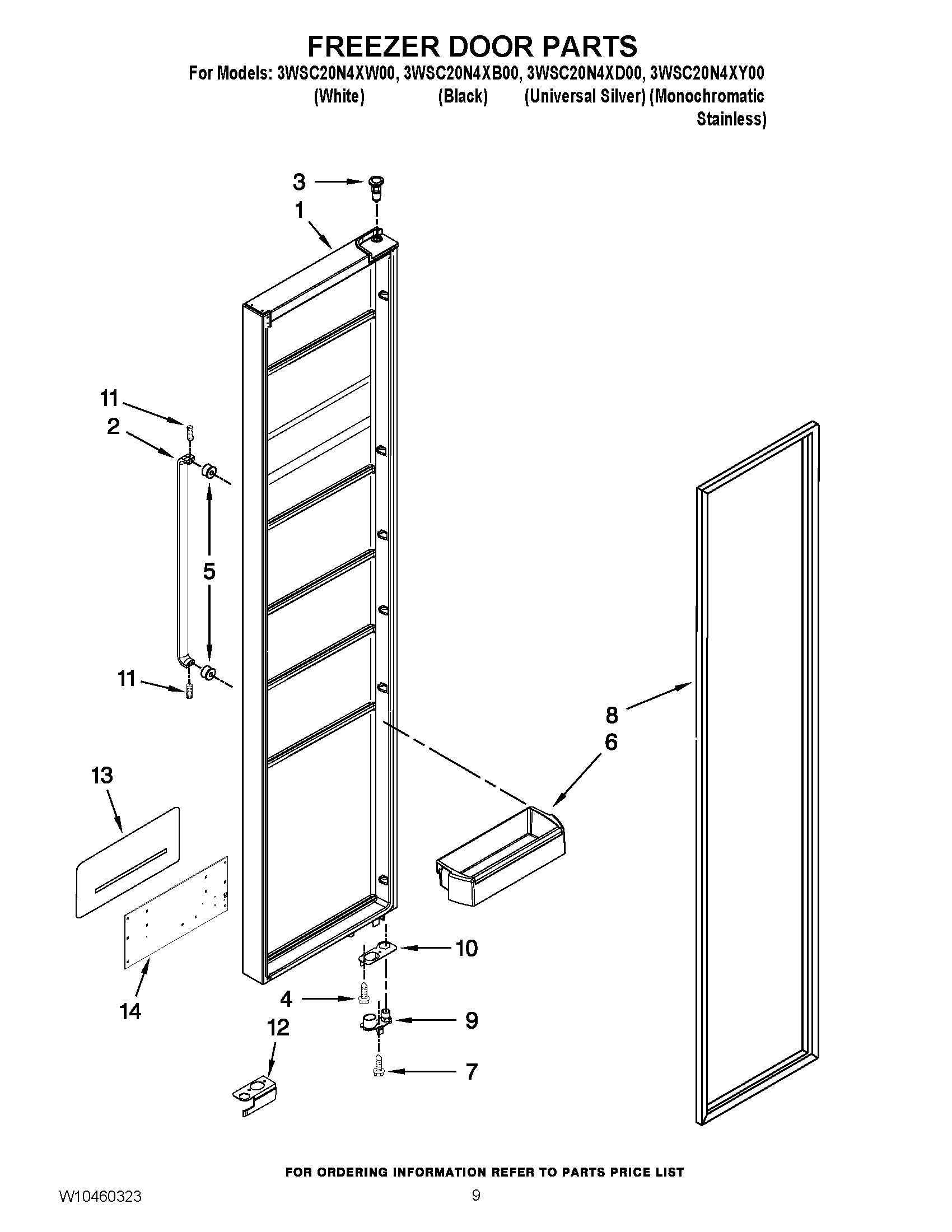

3WSC20N4XB00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (UNIVERSAL SILVER)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2HANDLE
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10249913 Whirlpool Refrigerator FIP Gasket
9WPW10248015 Whirlpool Refrigerator Door Cam
9WPW10257206 Whirlpool Refrigerator Door Cam
9W11607100 Whirlpool Refrigerator Thimble Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12W10632060 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
12WPW10632062 Whirlpool Refrigerator Wire Cover
13FRONT COVER, CONTROL
14WPW10291877-includeCORE Whirlpool WPW10291877 Refrigerator Electronic Control Board + Core
