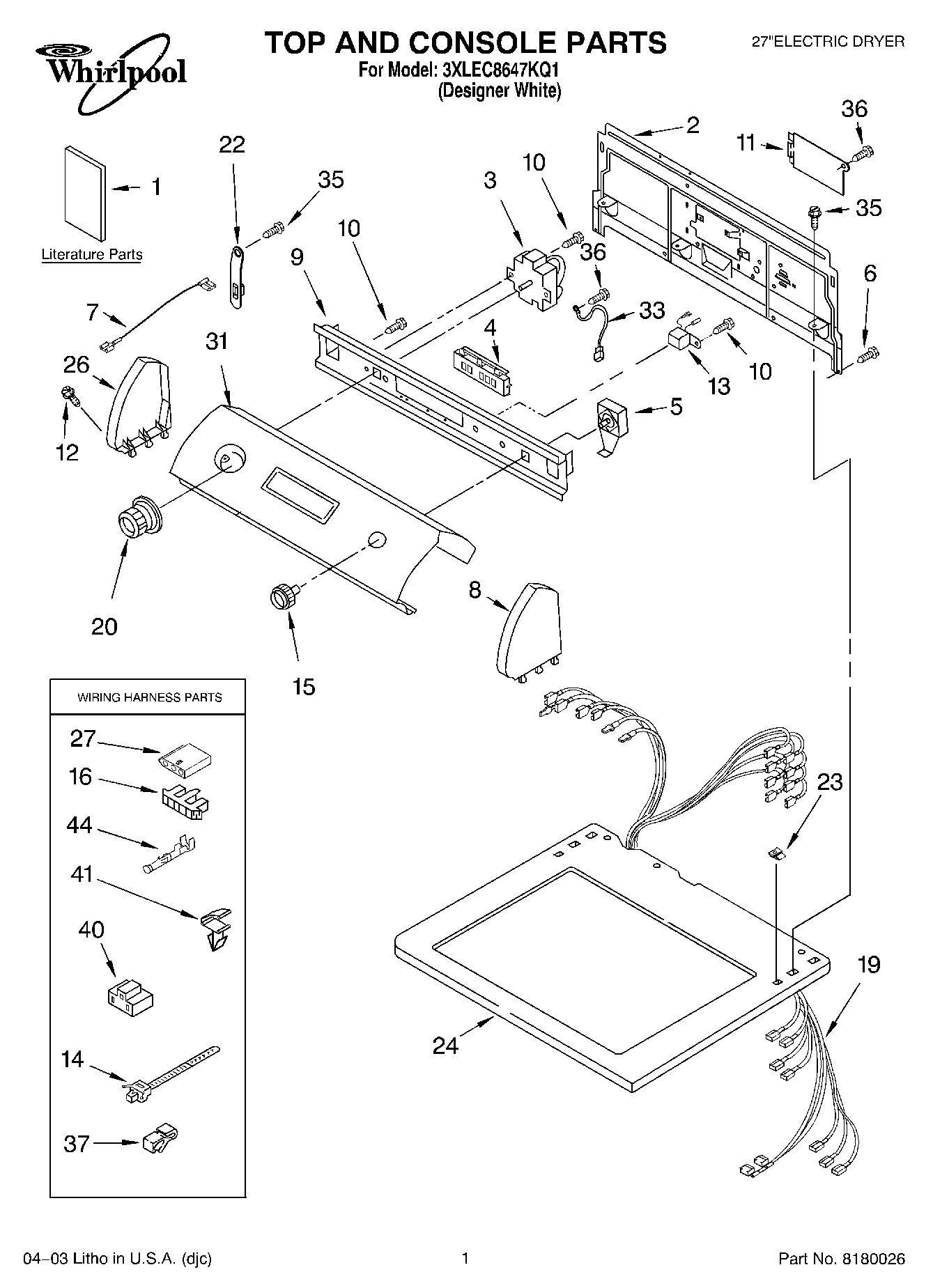

3XLEC8647KQ1 01 – TOP AND CONSOLE PARTS

3XLEC8647KQ1 01 – TOP AND CONSOLE PARTS

Written by

in

3XLEC8647KQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Instructions, Installation)
1Dryer
1Literature Parts (Guide, Use & Care)
2285909 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4Switch, Clean Touch (White)
5WPW10112633 Whirlpool Relay Parts
6WP693995 Whirlpool Screw
7Wire, Jumper (Blue)
7Wire, Jumper (Violet)
7Wire, Jumper (White)
7Wire, Jumper (Yellow/Black)
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPW10139210 Whirlpool Screw
11WPW10119283 Whirlpool Terminal Cover
12WP388326 Whirlpool Screw
13Buzzer, Mini
14WP3391018 Whirlpool Wire Tie
15WP3957799 Whirlpool Knob
16Connector, Timer
19Harness, Wiring
20WP3957754 Whirlpool Knob Assembly
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
273936144 Whirlpool Connector
31Panel, Control
33Wire, Ground
35WP488729 Whirlpool Refrigerator Door Screw
36303776 Whirlpool Dishwasher Screw
37W10113937 Whirlpool Clamp
403401144 Whirlpool Connector
41WP3394427 Whirlpool Clip
44WP94614 Whirlpool Terminal
