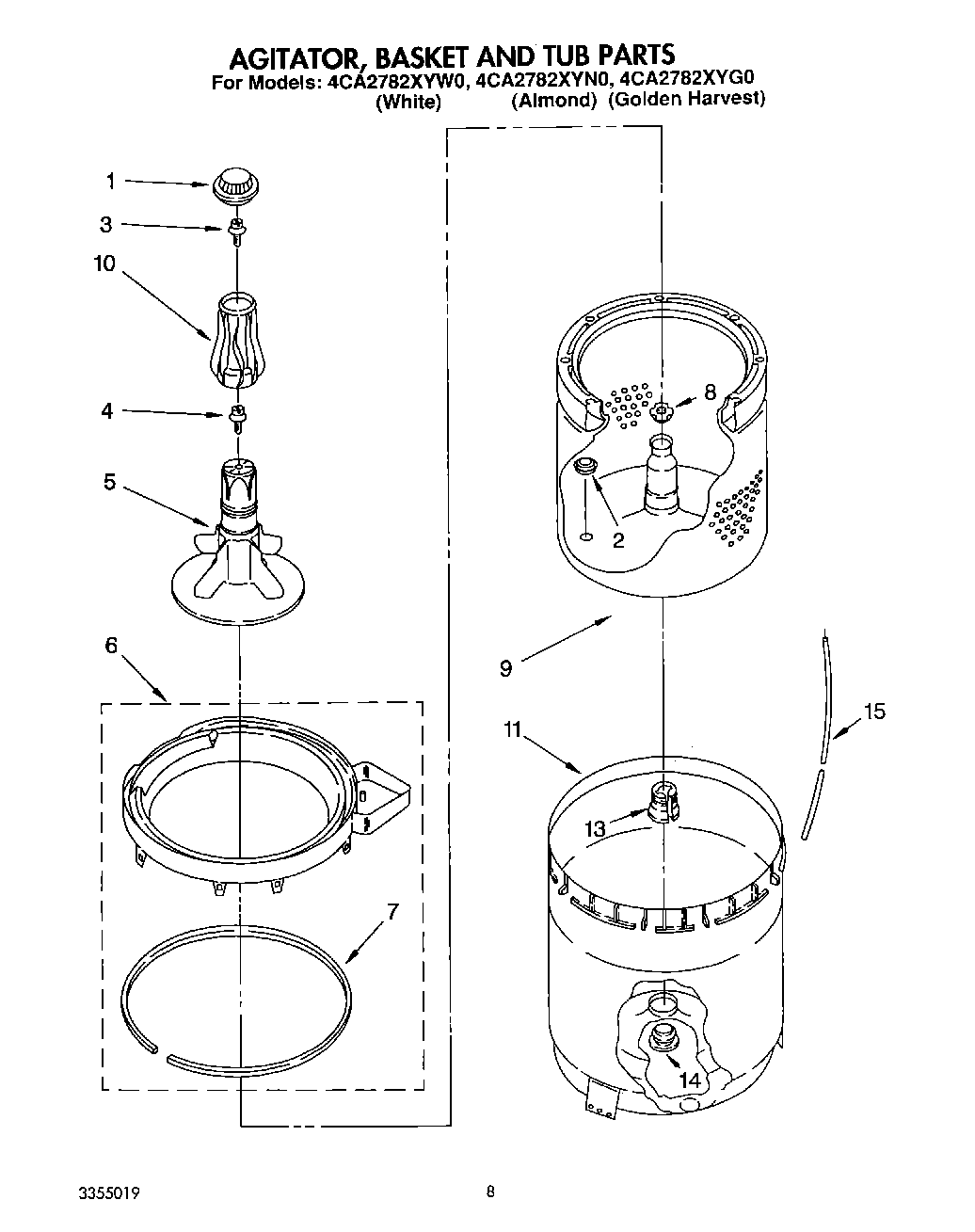

4CA2782XYG0 05 – AGITATOR, BASKET AND TUB

4CA2782XYG0 05 – AGITATOR, BASKET AND TUB

Written by

in

4CA2782XYG0 05 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2Snap-In-Plugs (4)
3WPW10109200 Whirlpool Screw
4WP358237 Whirlpool Agitator Bolt
5Agitator
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10Filter, Manual
1163849 Whirlpool Outer Tub Primary Assembly
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
