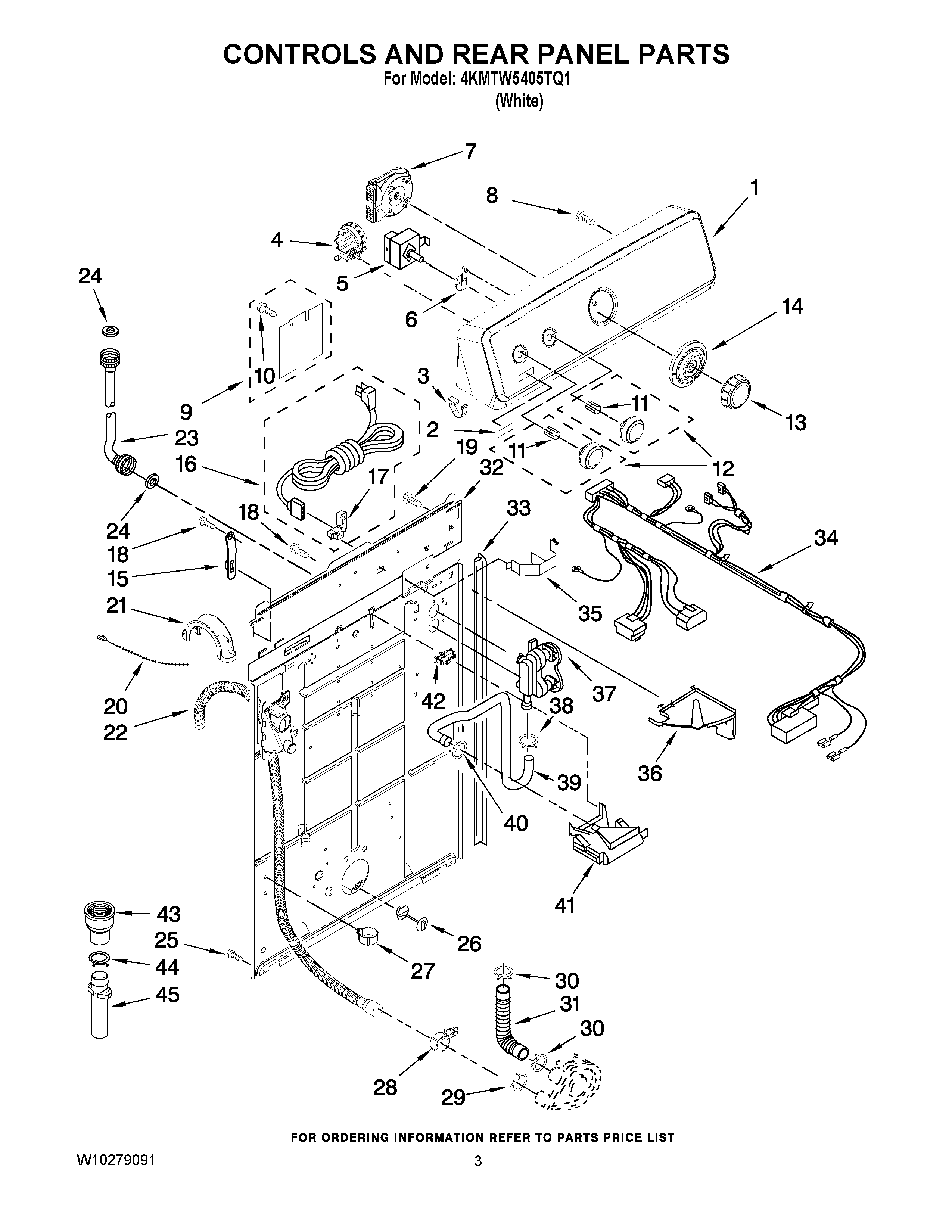

4KMTW5405TQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	CONSOLE & SHELL ASSEMBLY (INCLUDES ITEMS 2 & 3)
2	Badge
3	MAY 8312709
4	MAY 8577845
5	MAY 661612
6	MAY 8317975
7	MAY W10117054
8	SCREW
9	MAY W10093726
10	RETAINER, PUSH-IN
11	CLIP, SPRING
12	Knob, Control (3)
13	MAY W10110027
14	MAY W10110028
15	Strap, Console
16	MAY W10111552
17	MAY 8559337
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	MAY W10138068
23	Hose, Water Inlet (Hot Water)
23	Hose, Water Inlet (Cold Water)
24	ACCESSORY PARTS, WASHER, HOSE
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10121820
35	Clip, Harness & Pressure Switch
36	MAY 8539874
37	MAY 3360397
38	MAY 301958
39	MAY 8541607
40	MAY 370450
41	Thermister, Inlet
42	MAY 3352944
43	MAY 8577375
44	Clamp, Hose
45	MAY 3363920
