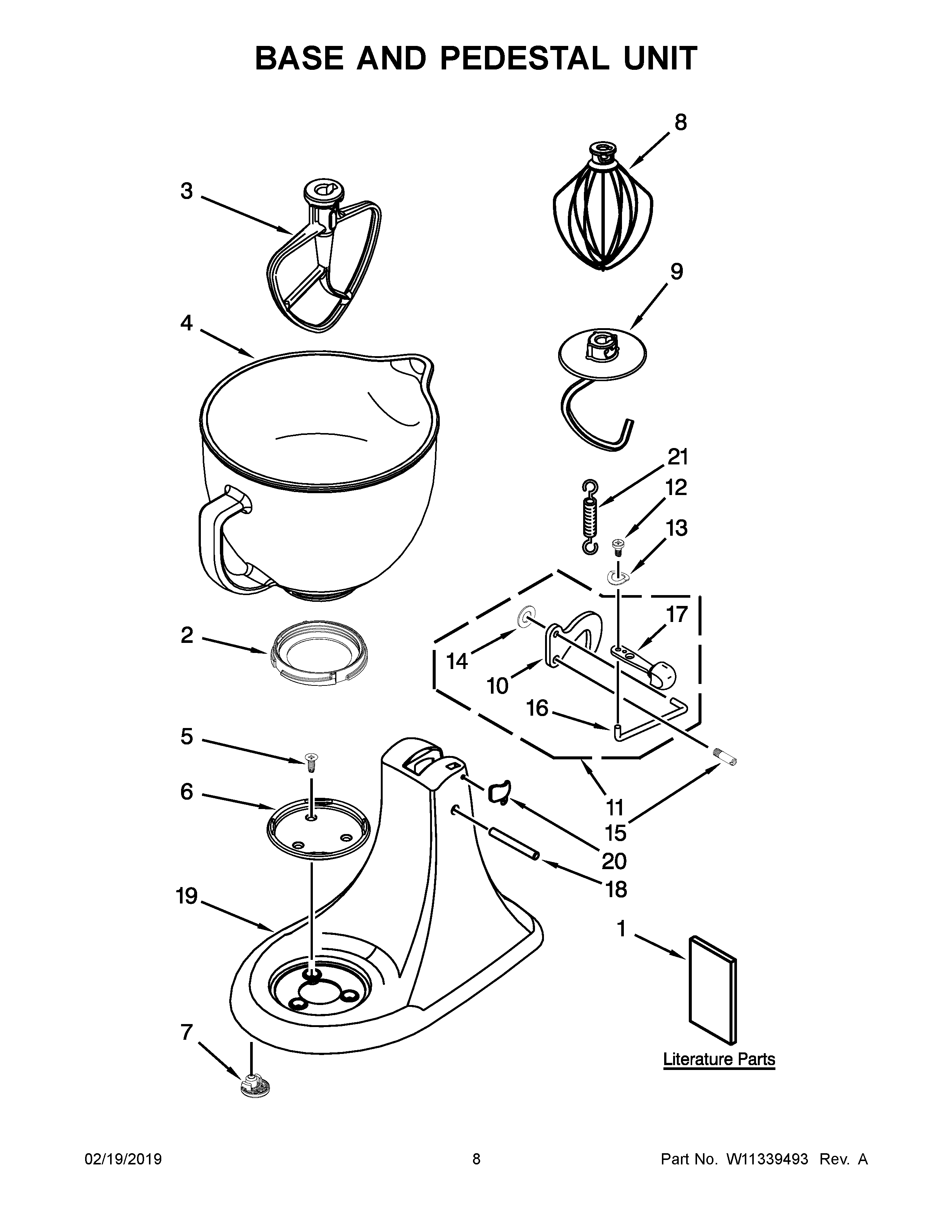

5KSM156WFEWH4 05 – BASE AND PEDESTAL UNIT

5KSM156WFEWH4 05 – BASE AND PEDESTAL UNIT

Written by

in

5KSM156WFEWH4 05 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1USE & CARE GUIDE
2WPW10220977 Whirlpool Ring
3WPW10672617 Whirlpool Stand Mixer Flat Beater
4DCERAMIC BOWL – WHISPERING FLORAL
4CERAMIC BOWL – GOLD CONNIFER
4ACERAMIC BOWL – PINE AND BERRIES
4BCERAMIC BOWL – SCANDI FLORAL
4CCERAMIC BOWL – INK BLUE
5SCREW
6WPW10191926 Whirlpool Cap Screw
7WP9709707 Whirlpool Foot
8WP9704329 Whirlpool Wire Whip
9WPW10674618 Whirlpool Dough Hook
10W11246352 Whirlpool Latch Mechanism
11AW11416057 Whirlpool Latch Lever
11WP3184200 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15103993 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709267 Whirlpool Latch Lever
17AW11676543 Whirlpool Latch Lever
18WP16910 Whirlpool Dowel Pin
19CABINET (NOT A SERVICEABLE PART)
20WP3184264 Whirlpool Headlock Assembly
21W11188450 Whirlpool Spring
