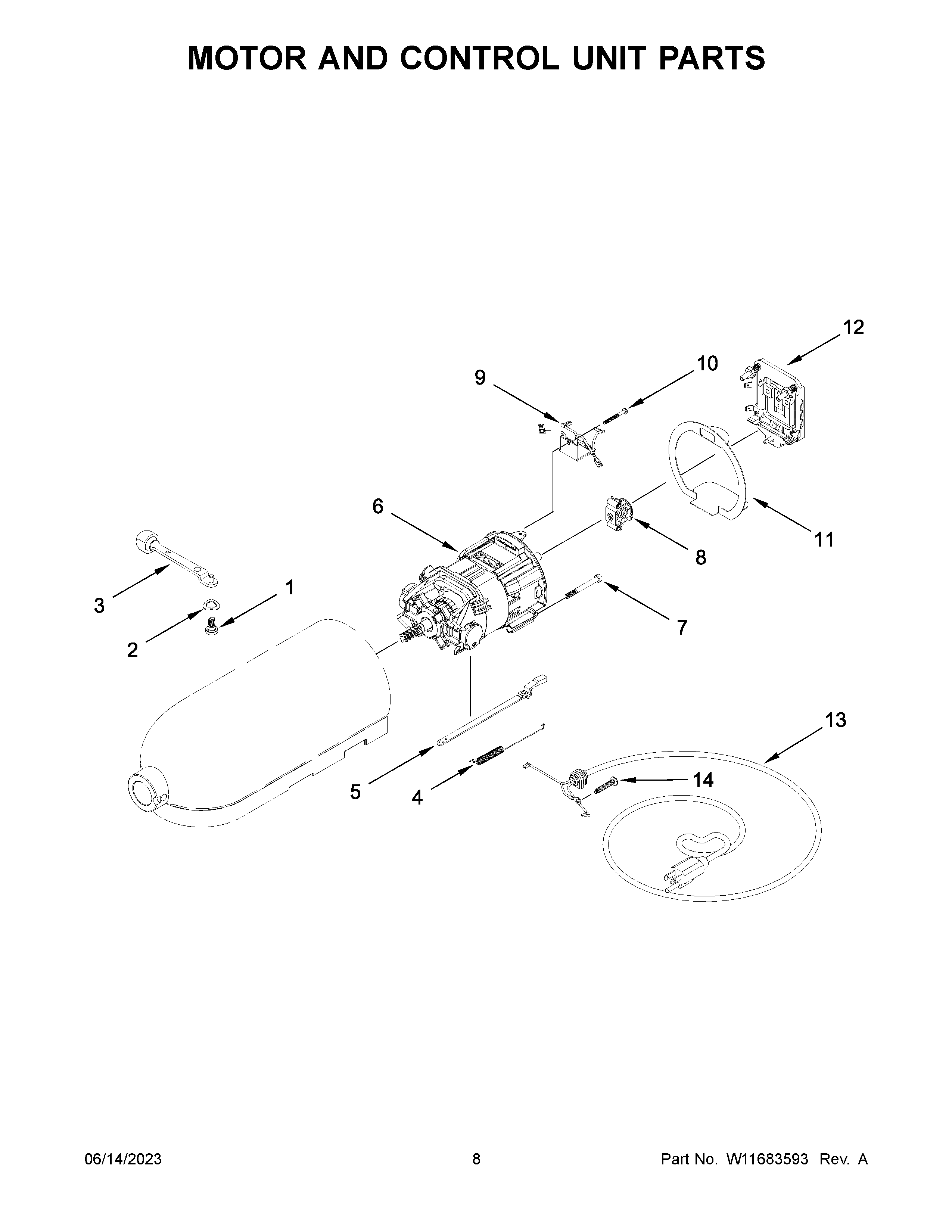

5KSM193ADBBM5 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3W11661858 Whirlpool Speed Lever
4WP3183680 Whirlpool Spring
5W11557271 Whirlpool Link Speed
6MOTOR ASSEMBLY
7SCREW, MOTOR MOUNTING
8WPW10330804 Whirlpool Speed Governor
9W11204851 Whirlpool Phase Board
10W11084238 Whirlpool Screw Assembly
11SEAL, END
12WPW10119326 Whirlpool Speed Control
13CORD, POWER (BLACK)
14W10914506 Whirlpool Screw
