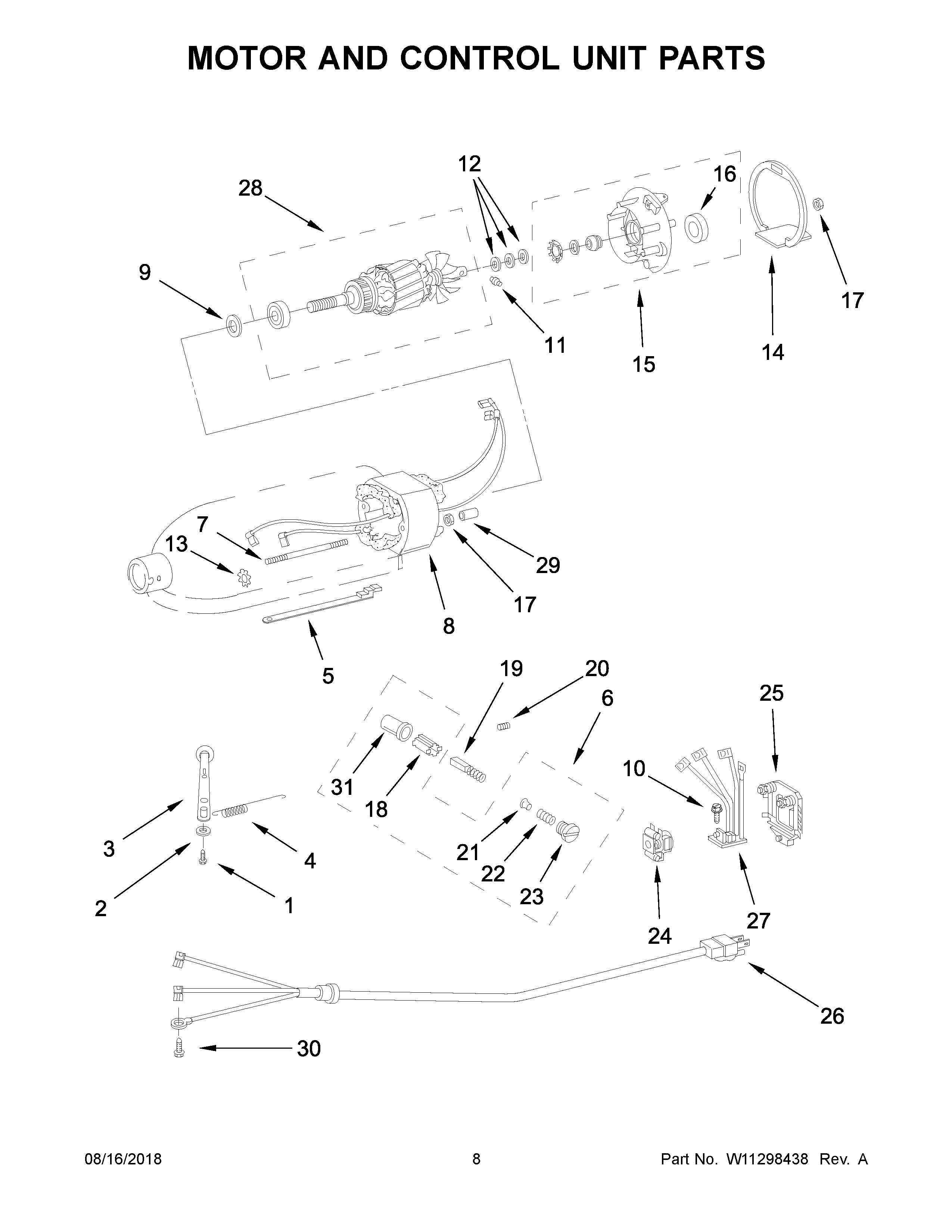

5KSM45BGD4 05 – MOTOR AND CONTROL UNIT PARTS

5KSM45BGD4 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

5KSM45BGD4 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5W11557271 Whirlpool Link Speed
64162546 Whirlpool Brush Holder
7W10851015 Whirlpool Stat Screw
8WPW10417246 Whirlpool Field Assembly
9WP9704324 Whirlpool Washer
10W11084238 Whirlpool Screw Assembly
11WP16998 Whirlpool Drive Stud
12W11233557 Whirlpool Washer
13W11170663 Whirlpool Washer
14WP240775-1 Whirlpool Endcap Seal
15WP3180526 Whirlpool Bearing Bracket
16WASHER
17WPW10131078 Whirlpool Nut Assembly
18W11656718 Whirlpool Insert
19WPW10380496 Whirlpool Stand Mixer Motor Brush
20W11176201 Whirlpool Screw
21WP116286 Whirlpool Spring Cap
22WP116287 Whirlpool Spring Cap
23WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
24WPW10330804 Whirlpool Speed Governor
25WPW10119326 Whirlpool Speed Control
26W11112762 Whirlpool Power Cord
26ACORD, POWER (BLACK (UNITED KINGDOM))
27W11174552 Whirlpool Stand Mixer Phase Board
28W10900799 Whirlpool Armature
29W11210996 Whirlpool Sleeve
30SCREW
31WP3179908 Whirlpool Brush Holder
