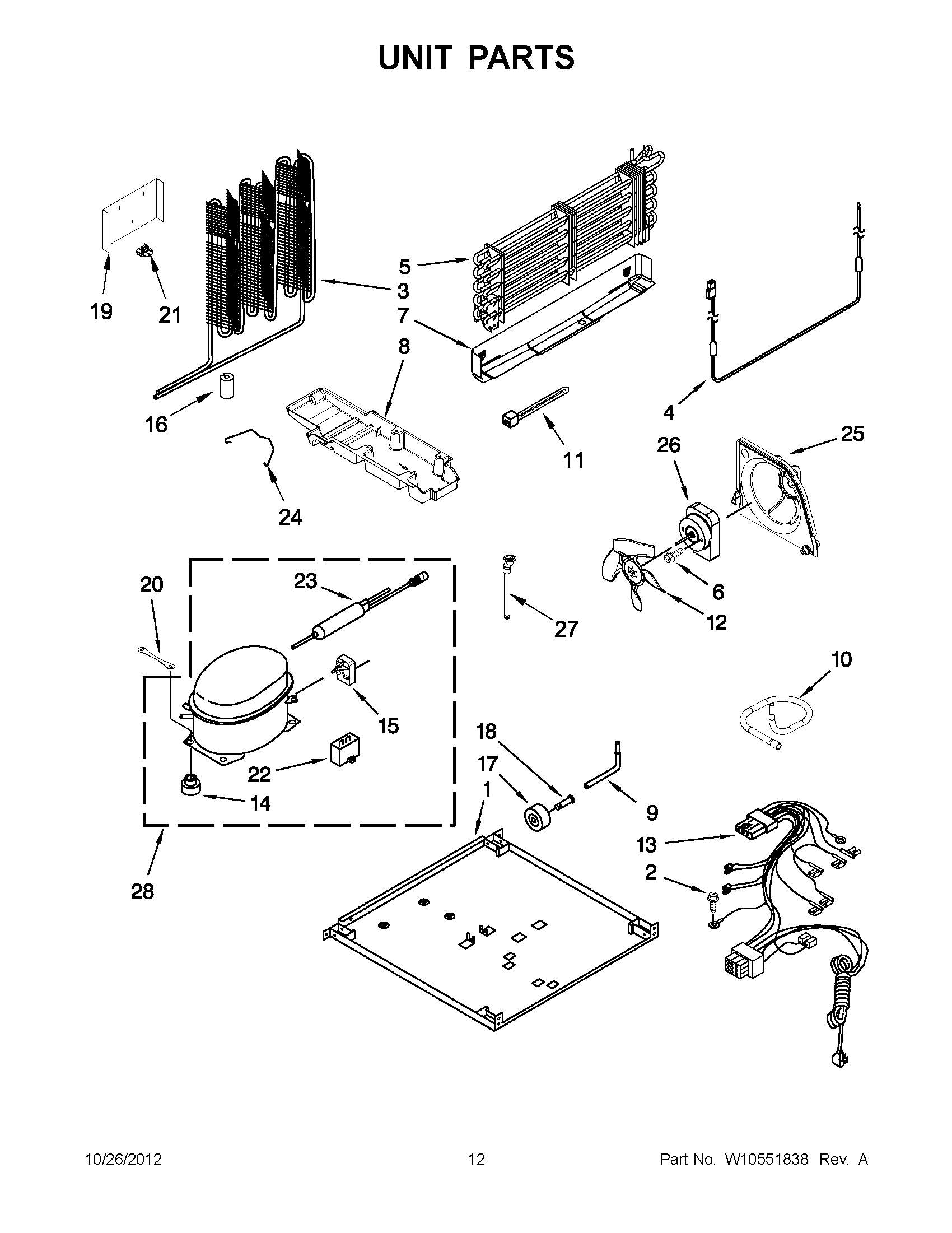

5VWT51SFYW00 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	W11396825 Whirlpool Plate
2	WP489128 Whirlpool Refrigerator Screw
3	WPW10342567 Whirlpool Refrigerator Condenser
4	W10405108 Whirlpool Heater
5	WPW10314205 Whirlpool Refrigerator Evaporator
6	W11501418 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	W10890667 Whirlpool Refrigerator Drip Pan
9	2154109 Whirlpool Refrigerator Tube
10	W10466682 Whirlpool Refrigerator Tube
11	WPW10339879 Whirlpool Wire Tie
12	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
13	WIRE ASSEMBLY, UNIT
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2312007 Whirlpool Refrigerator Start Device
16	W10852725 Whirlpool Refrigerator Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10349515 Whirlpool Refrigerator Air Baffle
20	W10236396 Whirlpool Refrigerator Strap
21	W10683556 Whirlpool Refrigerator Clip
22	2321245 Whirlpool Refrigerator Capacitor
23	W10843121 Whirlpool Refrigerator Tube
24	Strap, Bale
25	WP2315541 Whirlpool Refrigerator Air Baffle
26	WP2321271 Whirlpool Refrigerator Condenser Motor
27	W11190084 Whirlpool Refrigerator Drain Tube
28	W10183407 Whirlpool Refrigerator Compressor
