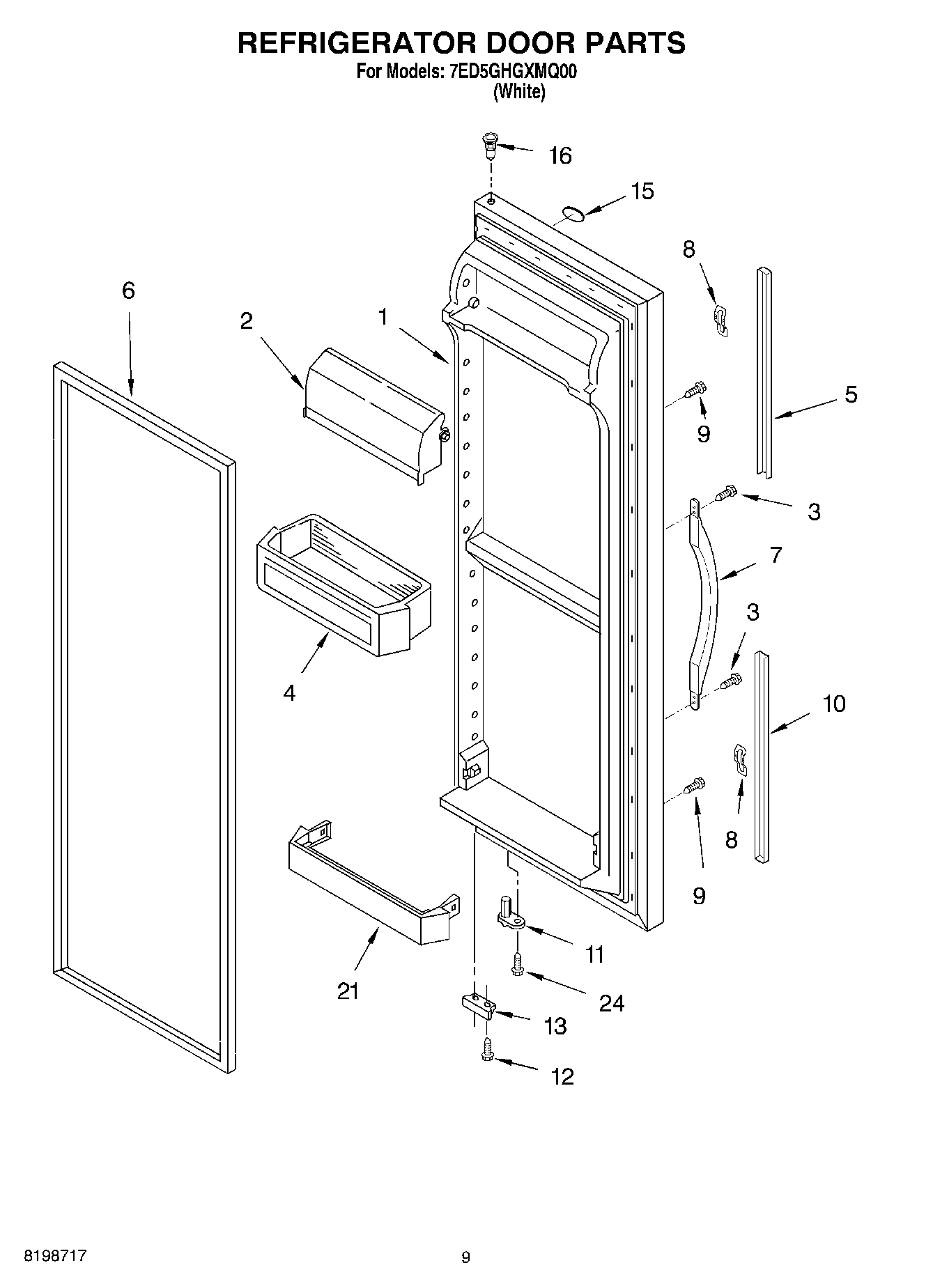

7ED5GHGXMQ00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2187172 Whirlpool Refrigerator Door Shelf Bin
5	WP2194973W Whirlpool Door Trim
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center (White)
8	WP2195327 Whirlpool Refrigerator Clip
9	WP3400852 Whirlpool Refrigerator Screw
10	Extension, Bottom (White)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
15	WP2213265 Whirlpool Refrigerator Nameplate
16	WP2182181 Whirlpool Refrigerator Thimble
21	WP2177962K Whirlpool Refrigerator Door Trim
24	WP3400012 Whirlpool Refrigerator Screw
