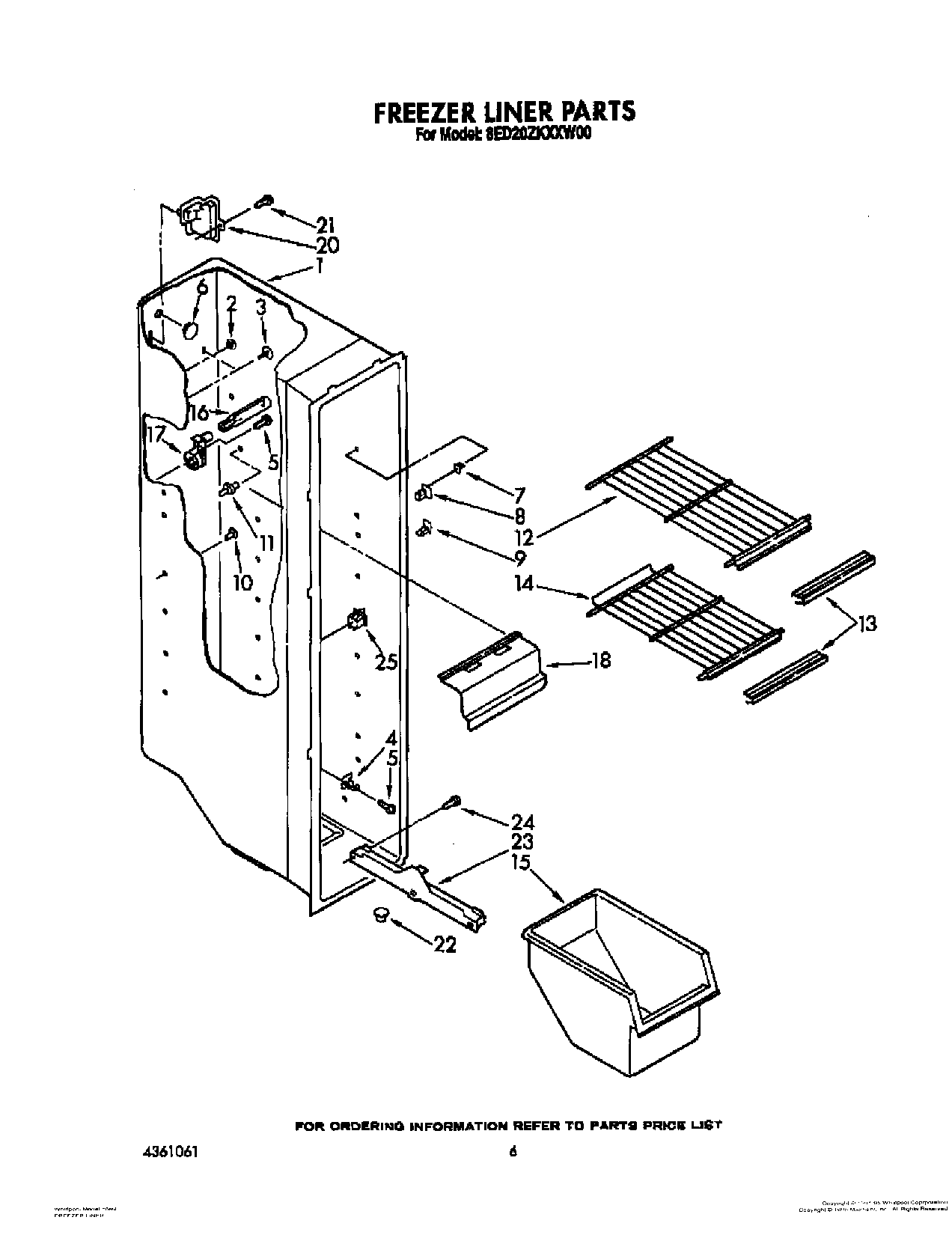

8ED20ZKXXG00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Hole Plug (2)
3	WP941839 Whirlpool Refrigerator Button Plug
4	Evaporator, Support
5	WP489478 Whirlpool Refrigerator Screw
6	WPL 655411
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet (8)
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
13	Trim Shelf
14	Shelf (3)
15	Bin, Freezer
16	WP548049 Whirlpool Refrigerator Light Bulb
17	Socket Assembly
18	Lens, Light
20	Cover, Wiring
21	WP488729 Whirlpool Refrigerator Door Screw
22	Fitting, Drain
23	Slide, Basket (Left Side)
24	718257 Whirlpool Dishwasher Screw
25	W11384469 Whirlpool Door Switch
