95-2497-23-02 09 – ICE MAKER AND INSTALLATION PARTS

95-2497-23-02 09 – ICE MAKER AND INSTALLATION PARTS

Written by

in

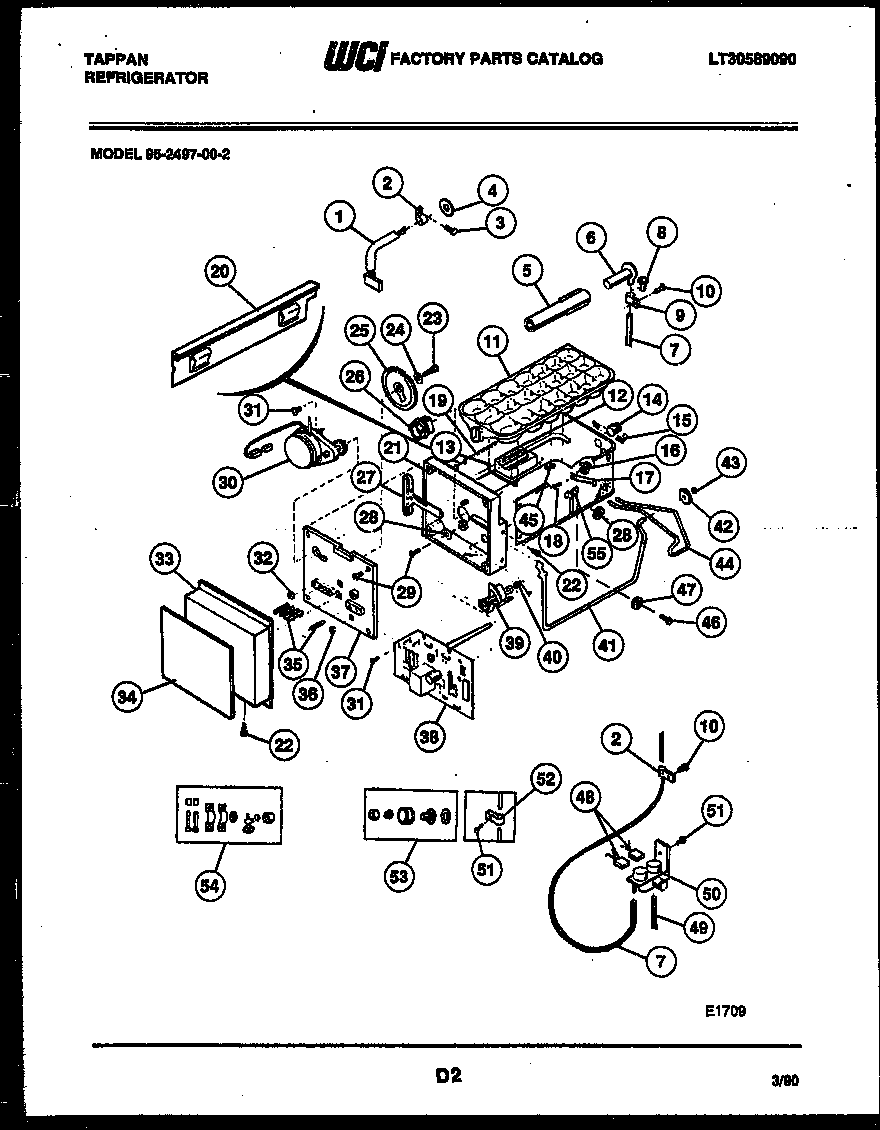

95-2497-23-02 09 – ICE MAKER AND INSTALLATION PARTS

Products

PositionProduct
*36871HOLDER-CABLE
1WIRING HARNESS-ICE MAKER (UPPER)
25308000133 Frigidaire Refrigerator Clamp
45303001147 Frigidaire Refrigerator Plug-Harness Hole
5WCI 5308015765
6215456100 Frigidaire Refrigerator Water Inlet Tube
8WCI 5303001191
95303001193 Frigidaire Refrigerator Clamp
105304455651 Frigidaire Refrigerator Screw
11ICE TRAY
12WCI 5303001141
13WCI 5301138379
14WCI 5300618683
15WCI 5303001132
16WCI 5300174436
17SPRING-TRAY
18SCREW – TRANSFORMER (2) (NON-ILLUSTRATED)
19WCI 5301138166
20WCI 01124226
21HOUSING-ICE MAKER
22SCREW-CLOSER MTG
23WCI 5303001119
24WCI 5303001117
25WCI 5301124984
26WCI 5301124972
27WCI 5303001136
28WASHER
29SCREW (5)
30WCI 5301124982
31WCI 5301124507
32NUT – HEX 10-32 LH
33WCI 5303001148
34LABEL-ICE MAKER
35FOLLOWER-CAM (PIN)
36RETAINING RING
37PLATE-MOUNTING
38PRINTED CIRCUIT BOARD
39WCI 5301124983
40WCI 5303001139
41SENSING ARM
42BEARING-GAUGE ARM
43RETAINING RING (NON-ILLUSTRATED)
44WIRE-SHUT OFF
45RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
46WCI 5308012819
47WASHER-NYLON,3/16 X 5/8 OD
48WIRING HARNESS-ICE & WATER (LOWER)
495308010366 Frigidaire Refrigerator P1-Water Inlet Tube
50ACAP-WATER VALVE (NON-ILLUSTRATED)
50WATER VALVE SOLENOID
515308000039 Frigidaire Refrigerator Screw
525304455846 Frigidaire Refrigerator Clamp
53ADAPTER-WATER SPLY
54WCI 5308000247
55WCI 5308012818
